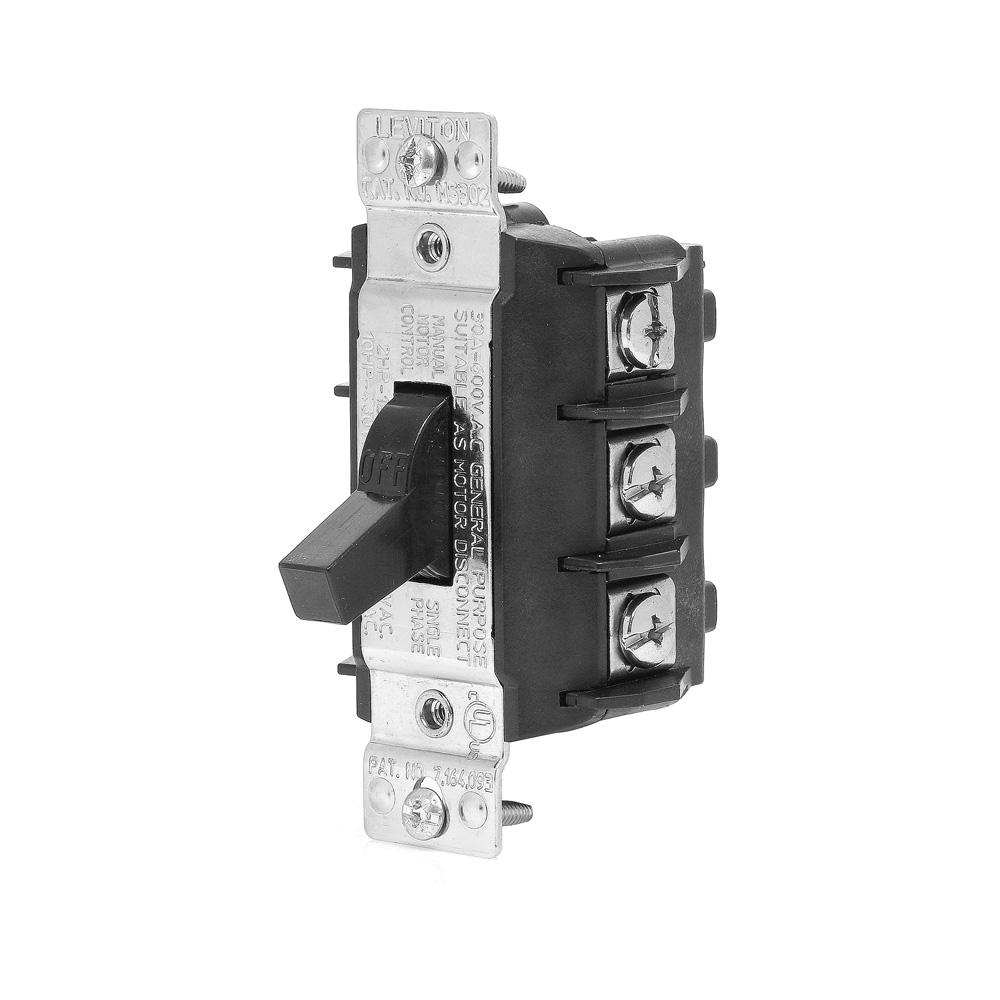

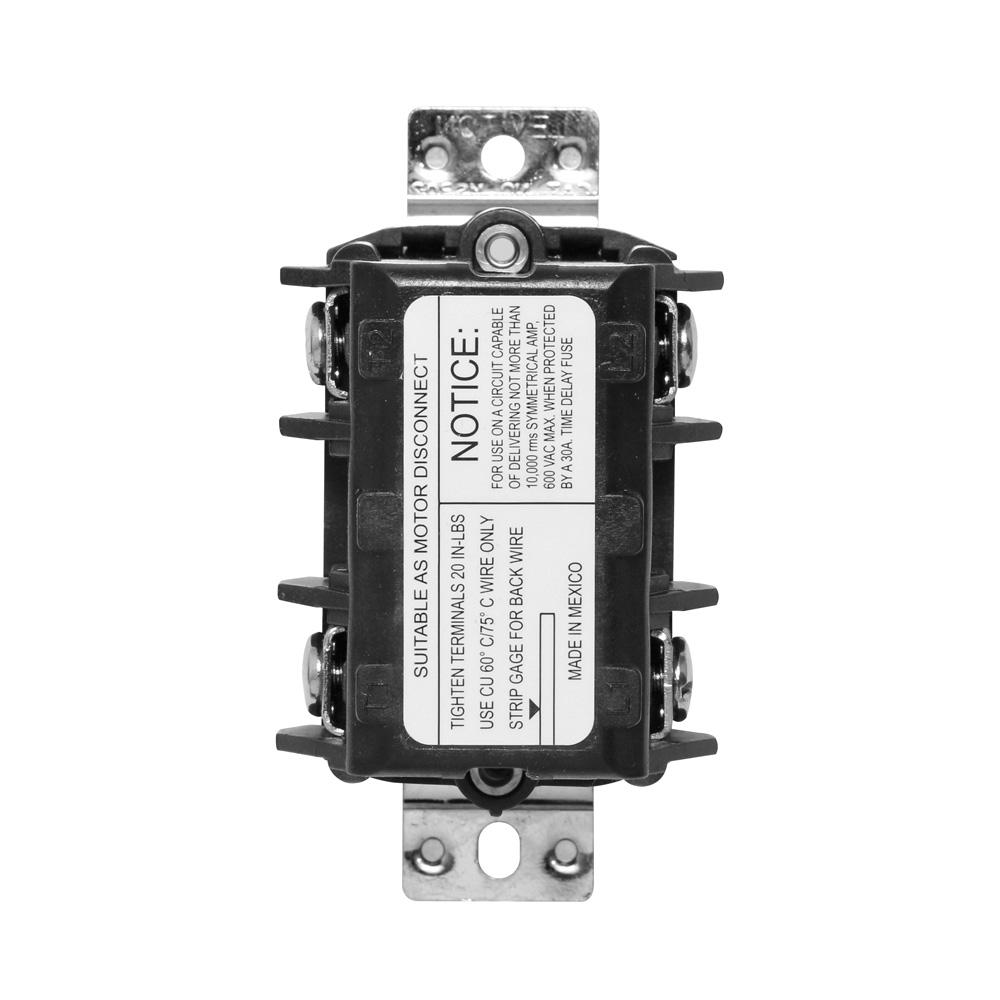

Leviton® Manual Motor Controller, 30 A, 600 VAC, 20 hp HP Rating, TPST, 3 Pole, 3 ph, Standard Toggle Actuator, 10 to 8 AWG Wire, NEMA WD-1, WD-6, 6000 cycles Operating Cycles, 50 deg C, Thermoplastic Polyester Body, 2.46 in Width, 2.03 in Length, 3-3/4 in Height, Black
| Actuator Type | : | Standard Toggle |
| Amperage Rating | : | 30 A |
| Body Material | : | Thermoplastic Polyester |
| Color | : | Black |
| Contact Configuration | : | TPST |
| Enclosure Type | : | NEMA WD-1, WD-6 |
| HP Rating | : | 20 hp |
| Height | : | 3-3/4 in |
| Length | : | 2.03 in |
| NEMA Rating | : | NEMA WD-1, WD-6 |
| Number of Poles | : | 3 |
| Operating Cycles | : | 6000 cycles |
| Phase | : | 3 ph |
| Temperature Rating | : | 50 deg C |
| Voltage Rating | : | 600 VAC |
| Width | : | 2.46 in |
| Wire Size | : | 10 to 8 AWG |
- All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing
- Cam-driven mechanism enhances fast-make/slow-break
- Silver alloy contacts for maximum conductivity and service life
- External clamps accept back and side wiring
- Insulating barrier between terminals provide isolation between phases
- Nickel-plated brass mounting yoke for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
