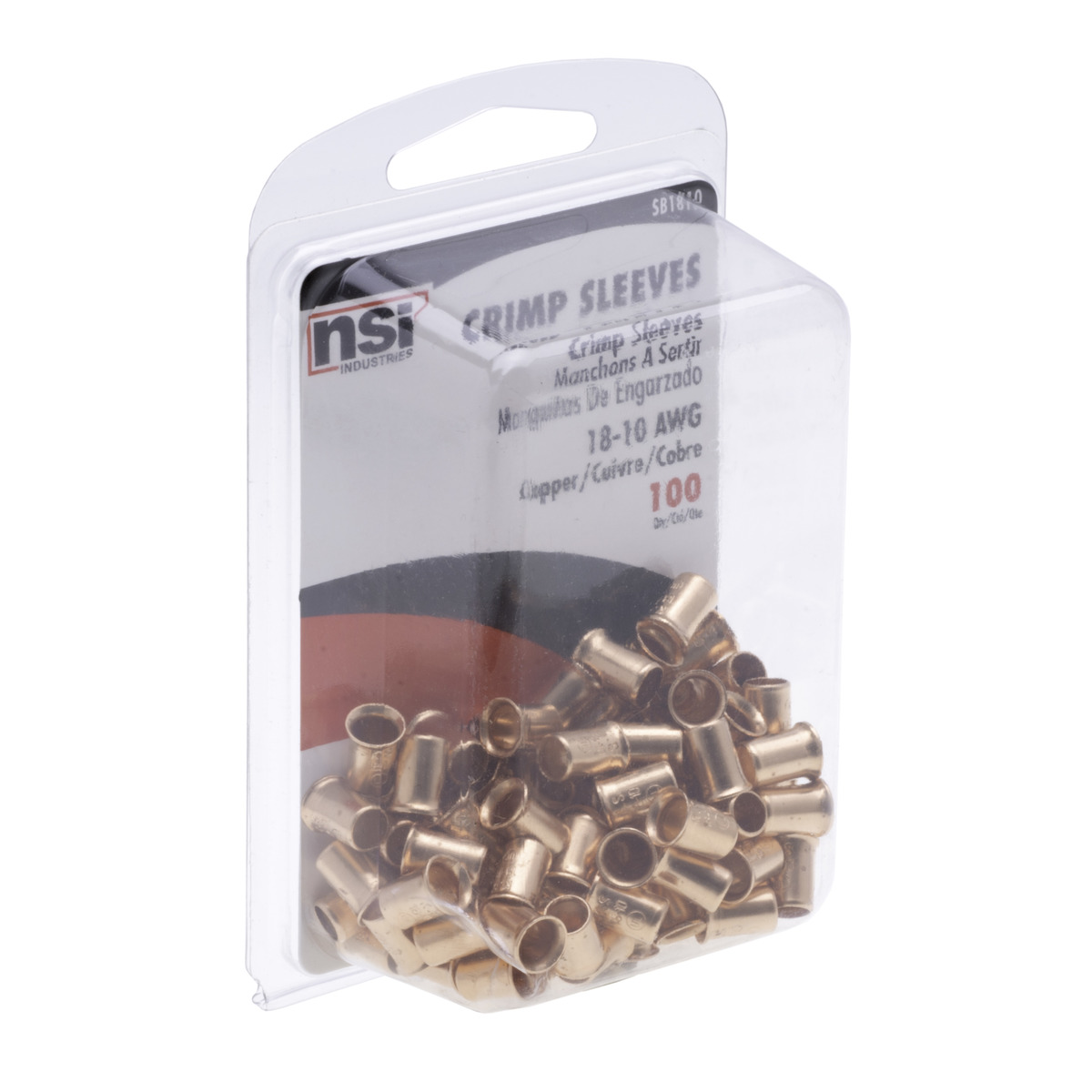

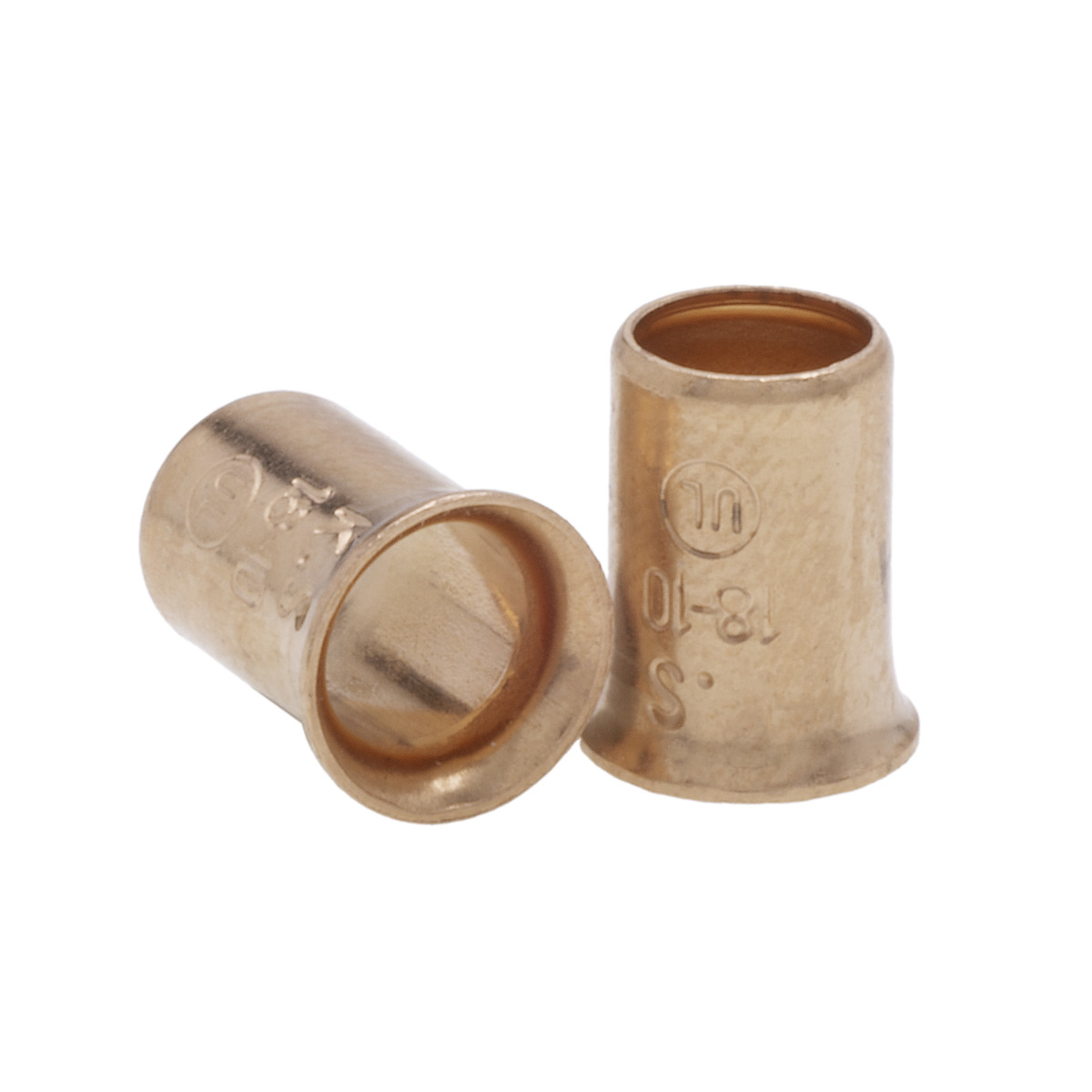

NSI Easy-Twist™ Crimp Sleeve, Series: SB Series, 18 to 10 AWG Wire, 600 VAC, Insulated Insulated/Non-Insulated, Copper Insulation, 1 Pole, 1 Conductors, Copper, 105 deg C, 13/32 in Dia, 3/8 in Length
| Diameter | : | 13/32 in |
| Insulated/Non-Insulated | : | Insulated |
| Insulation Material | : | Copper |
| Length | : | 3/8 in |
| Material | : | Copper |
| Number of Conductors | : | 1 |
| Number of Poles | : | 1 |
| Series | : | SB Series |
| Temperature Rating | : | 105 deg C |
| Voltage Rating | : | 600 VAC |
| Wire Size | : | 18 to 10 AWG |
- Bullet is designed for easy installation and provide an exceptional connection
- Uses include appliances, high powered lighting fixtures, ceiling fans, heaters, plastic extrusion/injection molding barrels and similar high-temperature applications
