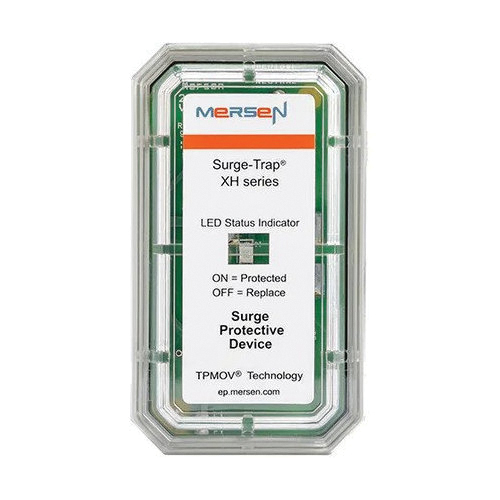

MERSEN Surge-Trap® Surge Protective Device, Series: STXH Series, 120/240 V, 50/60 Hz, 20 kA Interrupt, 1 ph, 10 AWG Wire, NEMA 4X, -40 to 85 deg C, Hub Mount, Polycarbonate, 3.2 in Length, 1.85 in Width
| Frequency Rating | : | 50/60 Hz |
| Interrupt Rating | : | 20 kA |
| Length | : | 3.2 in |
| Material | : | Polycarbonate |
| Mounting Type | : | Hub |
| NEMA Rating | : | NEMA 4X |
| Phase | : | 1 ph |
| Series | : | STXH Series |
| Temperature Rating | : | -40 to 85 deg C |
| Voltage Rating | : | 120/240 V |
| Width | : | 1.85 in |
| Wire Size | : | 10 AWG |
- Designed with the industry leading Mersen TPMOV® technology
- Compact footprint designed to mate with AC disconnect switches
- LED status indicator
- NEMA 4X enclosure for outdoor or indoor use
- Fits 1/2 in knockouts with 18 in leads for easy installation
- For use in ANSI/UL Type 1 or 2 SPD installations
- Three-modes of protection (L-N, L-L)
Line Drawing
