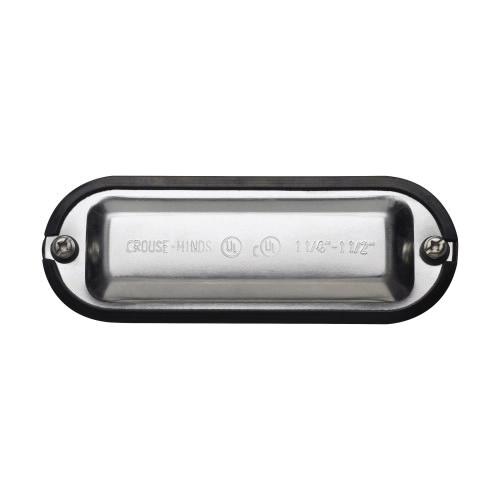

Crouse-Hinds Condulet® Conduit Outlet Body, 1-1/4 in Hub, 5, 32 cu-in, 2 AWG Wire, Iron Body, Sheet Steel Cover, Neoprene Gasket, Acrylic Painted/Electro-Galvanized, 8.12 in Length, 2.6 in Width, 2-3/4 in Height
| Body Material | : | Iron |
| Capacity | : | 32 cu-in |
| Cover Material | : | Sheet Steel |
| Finish | : | Acrylic Painted/Electro-Galvanized |
| Form | : | 5 |
| Gasket Material | : | Neoprene |
| Height | : | 2-3/4 in |
| Hub Size | : | 1-1/4 in |
| Length | : | 8.12 in |
| Width | : | 2.6 in |
| Wire Size | : | 2 AWG |
- Lb bodies supplied with built-in rollers to facilitate wire pulling
- Interchangeable with Appleton form 35 conduit bodies
- Built-in rollers on 1-1/4 to 4 in C and lb bodies to facilitate wire pulling
- Smooth and rounded integral bushings for protection of wire insulation
- Solid neoprene gaskets may be converted to open type by pulling out perforated center section
- Stainless steel cover screws
- Domed sheet steel covers provide additional cubic capacity
- Integral gasket cover provides NEMA 4 rating
