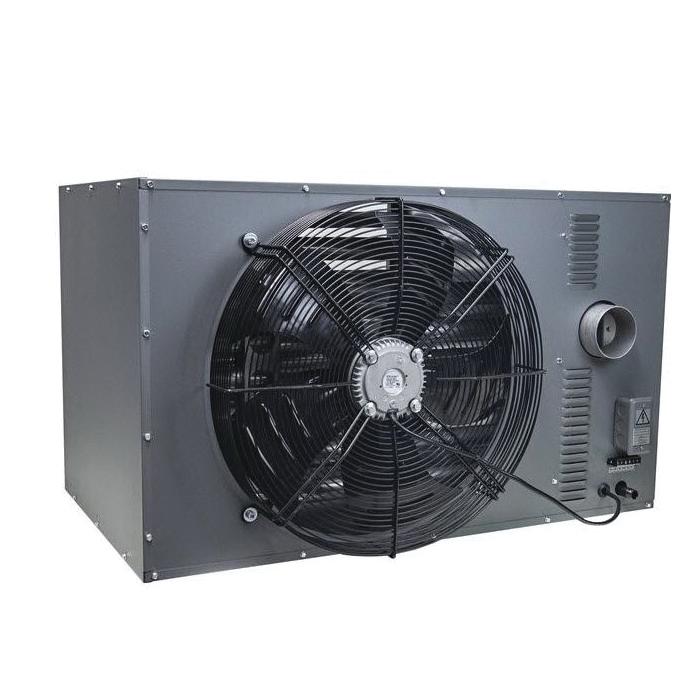

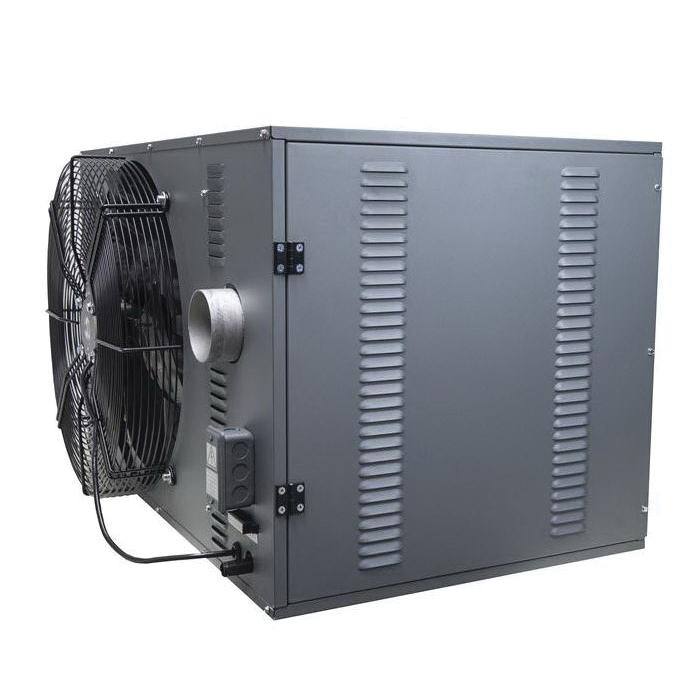

HEATSTAR® Big Boxx Unit Heater, Model: HSU300NG, 300000 Btu/hr, 110 V, 10 A, 4507 cfm CFM Rating, 1000 W, 1 ph, 60 Hz, NPT, 1/2 in, Liquid Propane Gas, Natural Gas, 24.8 in Fan Size, 80 % Efficiency, 1560 rpm Rotational Speed, 4 in Vent Size, Electronic Ignition, Ceiling Mount, 8 to 10 ft Mounting Height, Steel, Aluminized, 221 deg F, 41.9 in L x 29.2 in W x 30.3 in H
| Amperage Rating | : | 10 A |
| BTU Rating | : | 300000 Btu/hr |
| CFM Rating | : | 4507 cfm |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Dimensions | : | 41.9 in L x 29.2 in W x 30.3 in H |
| Efficiency | : | 80 % |
| Fan Size | : | 24.8 in |
| Finish | : | Aluminized |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Ignition Type | : | Electronic |
| Material | : | Steel |
| Model | : | HSU300NG |
| Mounting Height | : | 8 to 10 ft |
| Mounting Type | : | Ceiling |
| Phase | : | 1 ph |
| Power Rating | : | 1000 W |
| Rotational Speed | : | 1560 rpm |
| Temperature Rating | : | 221 deg F |
| Vent Size | : | 4 in |
| Voltage Rating | : | 110 V |
- HEATSTAR® forced air natural gas unit heater is efficient and effective convection heat for your garage or workshop for residential or commercial use
- For use with natural gas
- Heats up to 10000 sq-ft
- Spark ignition features self-diagnostic control module
- Includes two angle brackets for ceiling mount
- Low profile design - can be installed in low ceiling buildings
- Minimum 8 ft clearance from floor to base of heater required
- Category one vertical, category three horizontal venting
