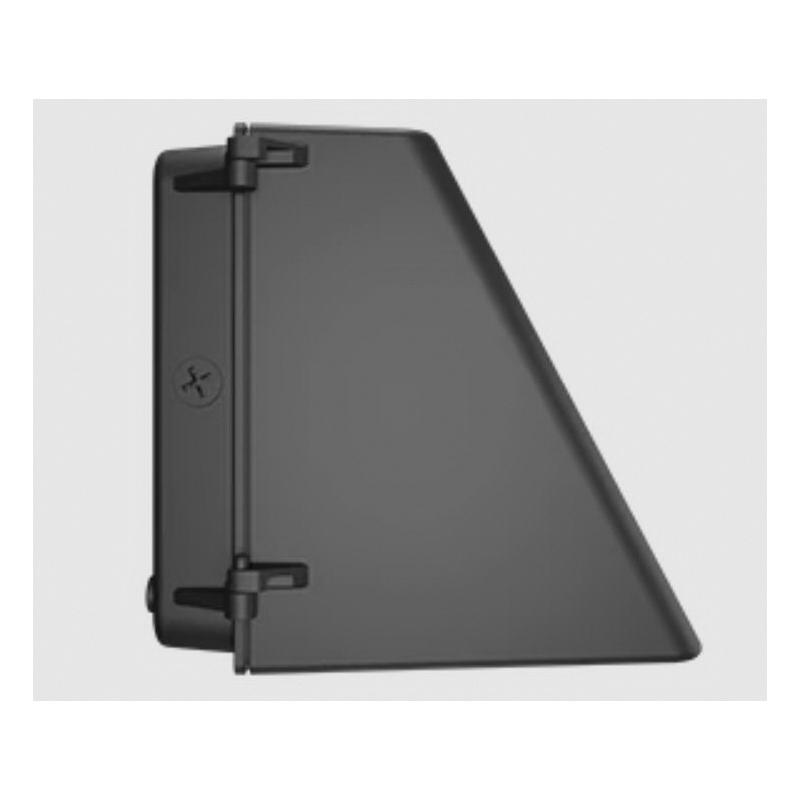

RAB Wallpack, Full Cut-off Style, 120 to 277 V, 0.5 to 0.12 A, 120 W Fixture Wattage, LED Lamp, 14880 Lumens, 17159 Lumens, 15557 Lumens, 3000 K, 4000 K, 5000 K, 80 CRI, Dimmable, 0 to 10 V Dimmable Ballast, 100000 hr Average Life, Polycarbonate Lens, Die Cast Aluminum Fixture, 9-4/16 in Overall Length, 14-3/16 in Overall Width, 9-10/16 in Overall Height, Surface Mounting
| Amperage Rating | : | 0.5 to 0.12 A |
| Average Life | : | 100000 hr |
| Ballast Type | : | 0 to 10 V Dimmable |
| Color Rendering Index (CRI) | : | 80 |
| Color Temperature | : | 3000 K, 4000 K, 5000 K |
| Dimmable/Non-Dimmable | : | Dimmable |
| Fixture Material | : | Die Cast Aluminum |
| Fixture Wattage | : | 120 W |
| Lamp Type | : | LED |
| Lens Type | : | Polycarbonate |
| Lumens | : | 14880 Lumens, 17159 Lumens, 15557 Lumens |
| Mounting Type | : | Surface |
| Overall Height | : | 9-10/16 in |
| Overall Length | : | 9-4/16 in |
| Overall Width | : | 14-3/16 in |
| Style | : | Full Cut-off |
| Voltage Rating | : | 120 to 277 V |
- Selectable on/off photocell
Instruction/Installation Manual
