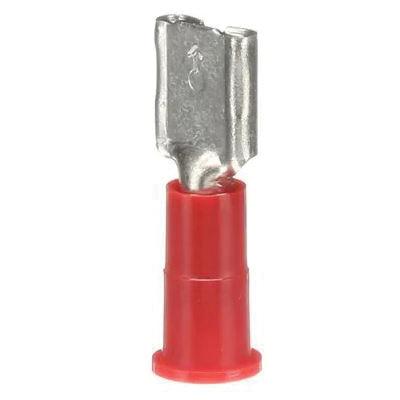

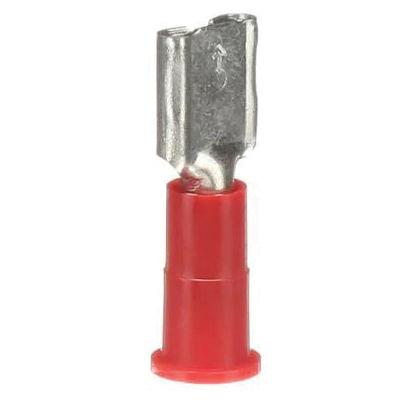

Highland™ Disconnect Terminal, 22 to 18 AWG Wire, 600 to 1000 V, 0.08 in ID x 0.25 in L Barrel, Butted Seam Barrel, Female Connection Type, Insulated Insulated/Non-Insulated, Vinyl Insulation, 0.145 in Maximum Wire Insulation Diameter, 1/4 in Pad, 1/4 in Stud, 1/4 in Tab, Plastic, Tin-Plated, -40 to 221 deg F, Bag, 0.87 in Length
| Barrel Size | : | 0.08 in ID x 0.25 in L |
| Barrel Type | : | Butted Seam |
| Connection Type | : | Female |
| Finish | : | Tin-Plated |
| Insulated/Non-Insulated | : | Insulated |
| Insulation Material | : | Vinyl |
| Length | : | 0.87 in |
| Material | : | Plastic |
| Maximum Wire Insulation Diameter | : | 0.145 in |
| Package Type | : | Bag |
| Pad Size | : | 1/4 in |
| Stud Size | : | 1/4 in |
| Tab Size | : | 1/4 in |
| Temperature Rating | : | -40 to 221 deg F |
| Voltage Rating | : | 600 to 1000 V |
| Wire Size | : | 22 to 18 AWG |
- Mates with male tab 0.25 x 0.032 in
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 deg F
- Rated 600 V for building wire and 1000 V for signs, fixtures or luminaires
