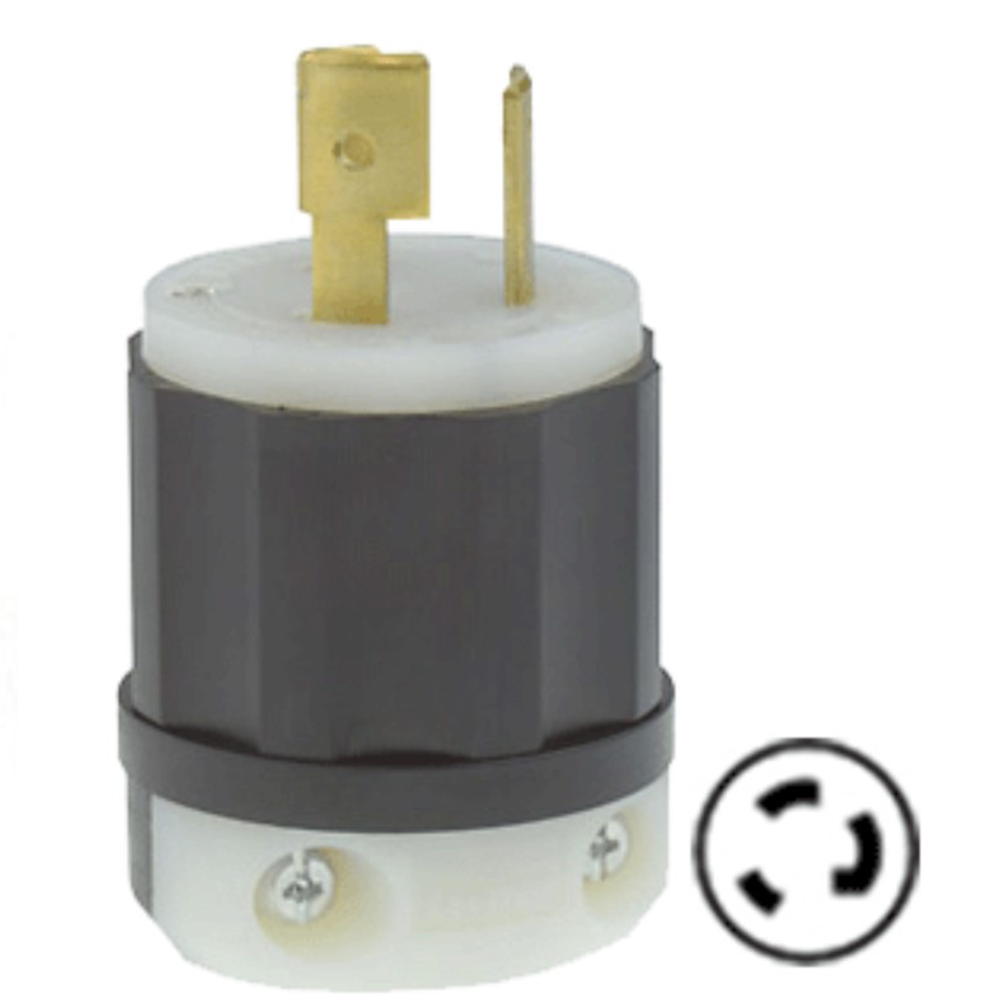

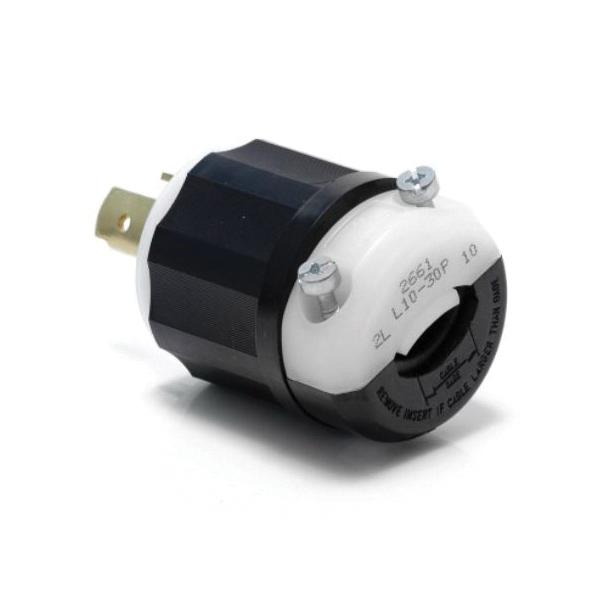

Leviton® Locking Plug, 125/250 VAC, 30 A, 2 hp HP Rating, 3 Pole, 3 Wires, 0.385 to 0.93 in Cord Dia, 18 to 10 AWG Wire, Industrial Grade, NEMA L10-30P, WD-6, Screw Terminal, Non-Grounding Grounding Type, Nylon Housing, Brass Blade, Brass Contact, Thermoplastic Back Cover Material, Brass/Steel Screw, Black/White, 2.08 in Width, -40 to 60 deg C
| Amperage Rating | : | 30 A |
| Back Cover Material | : | Thermoplastic |
| Blade Material | : | Brass |
| Color | : | Black/White |
| Contact Material | : | Brass |
| Cord Diameter | : | 0.385 to 0.93 in |
| Grade | : | Industrial |
| Grounding Type | : | Non-Grounding |
| HP Rating | : | 2 hp |
| Housing Material | : | Nylon |
| NEMA Rating | : | NEMA L10-30P, WD-6 |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Screw Material | : | Brass/Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 125/250 VAC |
| Width | : | 2.08 in |
| Wire Size | : | 18 to 10 AWG |
- Leviton® black and white line of industrial-grade plugs, connectors, flanged inlets and outlets offer superior performance, long-lasting reliability and features that are backed by a limited lifetime warranty
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
