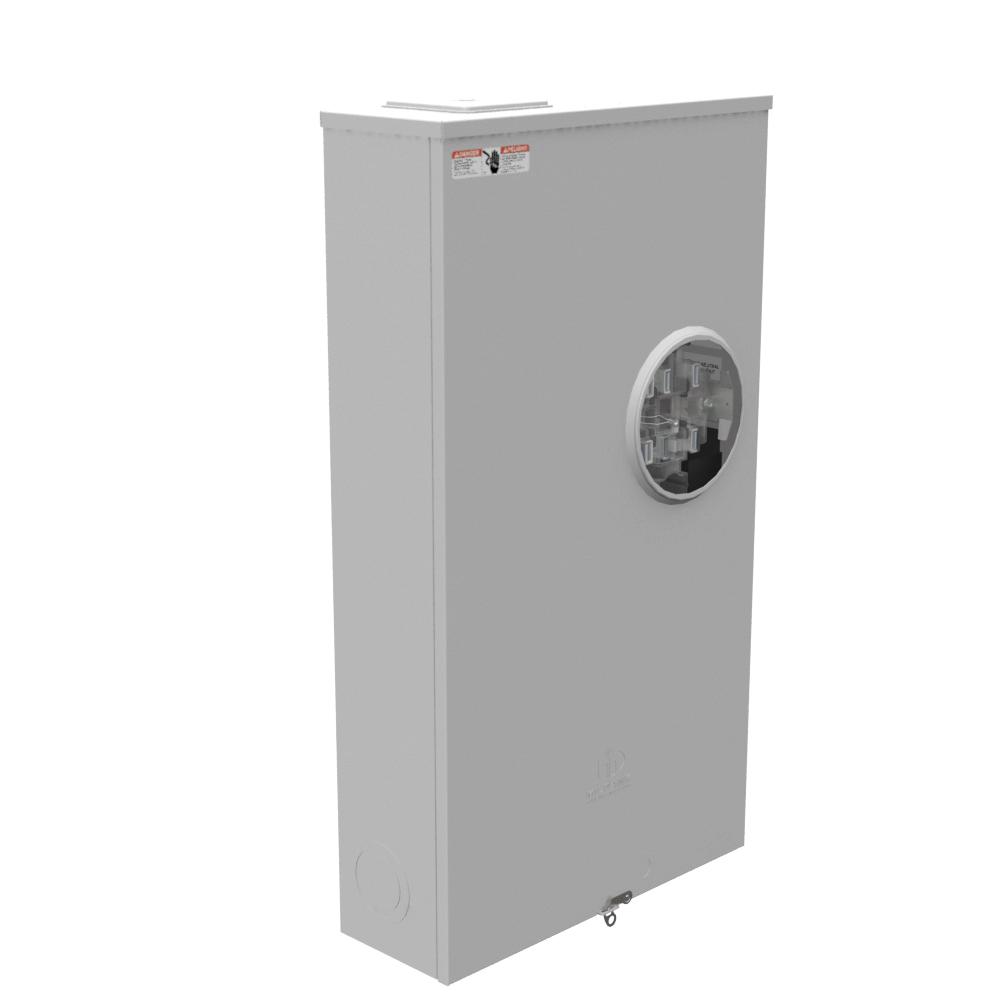

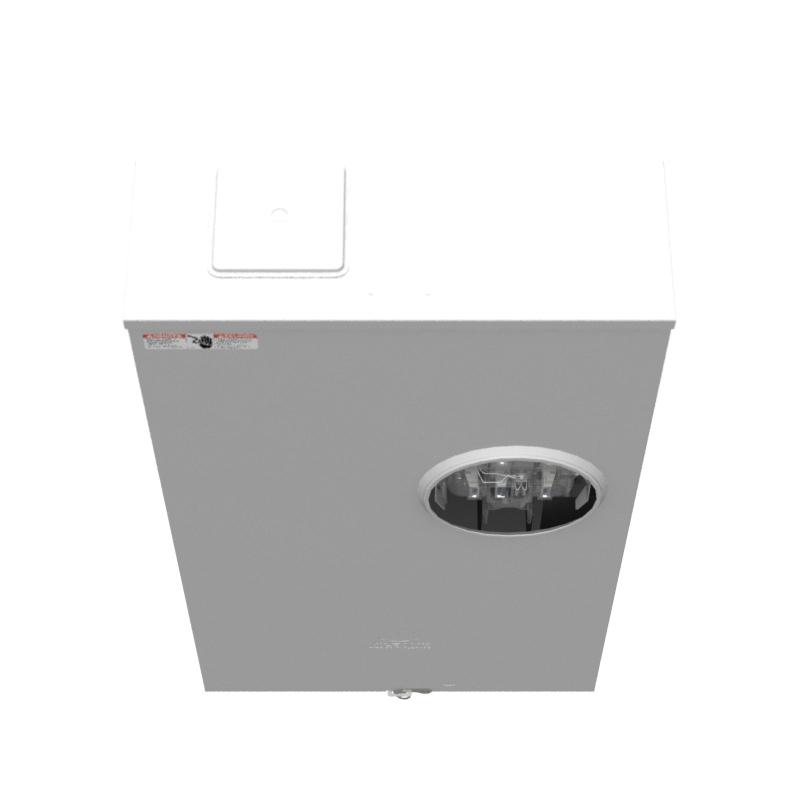

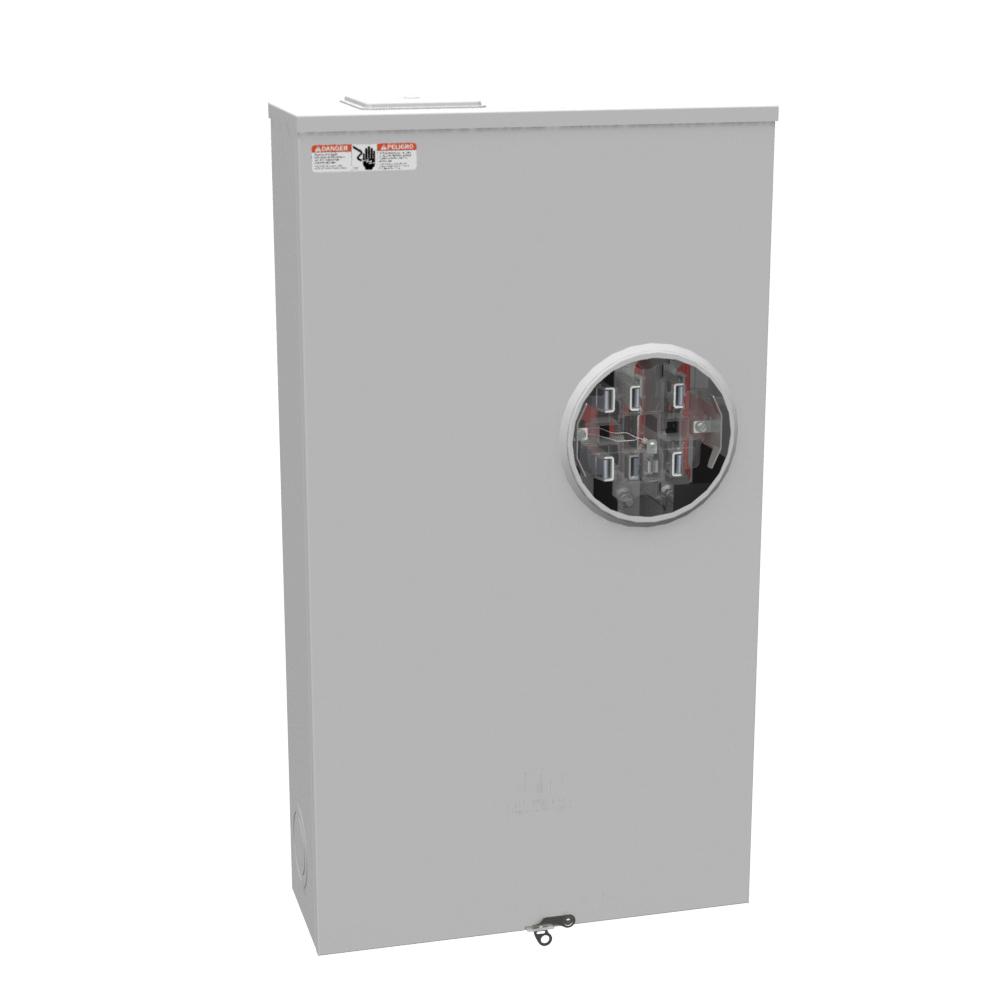

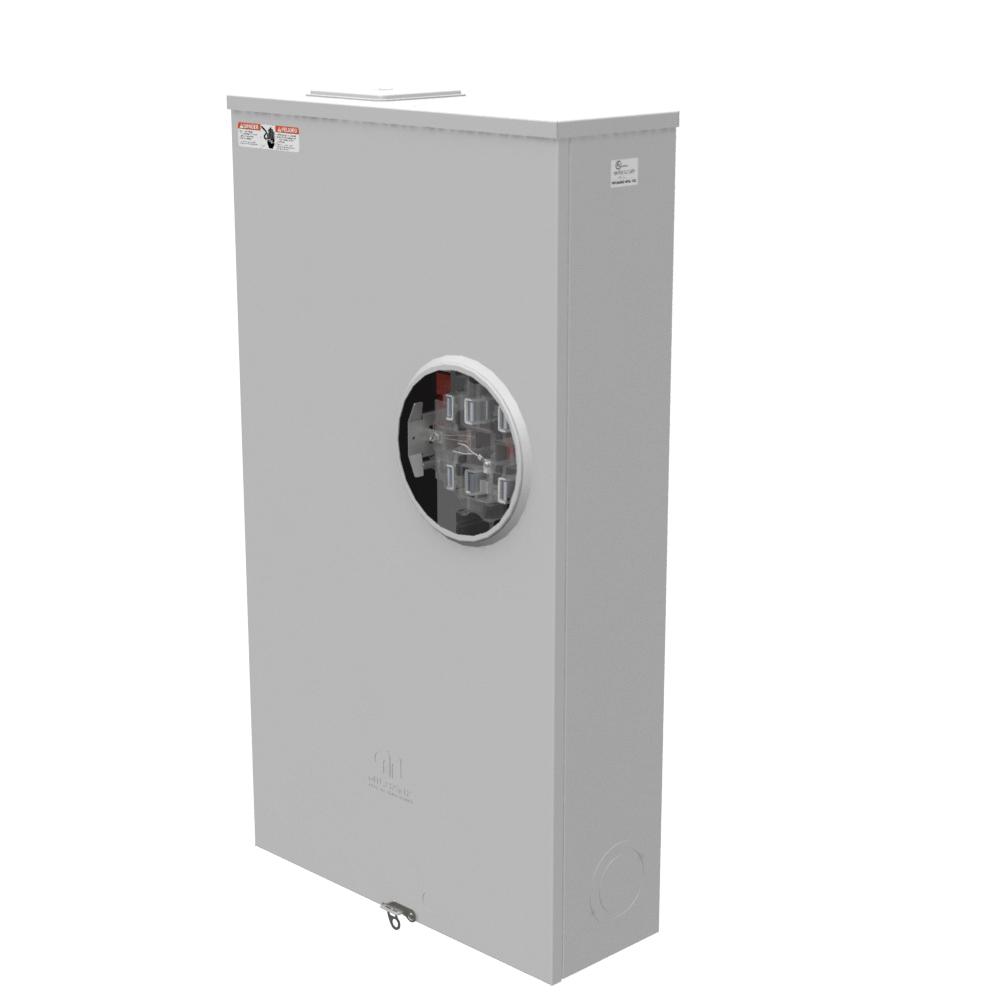

Milbank® Meter Socket, 320 A, 600 V, 60 Hz, Grounding Stud Connection Type, Ringless Cover, 3 ph, Overhead, Side Wireway, Underground Feed, 7 Jaws, Stud Terminal, Glass Polyester Insulation, Steel, Surface Mount, NEMA 3R, 6-1/2 in L x 19 in W x 34-1/8 in H, Powder-Coated
| Amperage Rating | : | 320 A |
| Connection Type | : | Grounding Stud |
| Cover Type | : | Ringless |
| Dimensions | : | 6-1/2 in L x 19 in W x 34-1/8 in H |
| Feed Type | : | Overhead, Side Wireway, Underground |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Insulation Type | : | Glass Polyester |
| Material | : | Steel |
| Mounting Type | : | Surface |
| NEMA Rating | : | NEMA 3R |
| Number of Jaws | : | 7 |
| Phase | : | 3 ph |
| Terminal Type | : | Stud |
| Voltage Rating | : | 600 V |
- Seven terminal ringless large closing plate lever bypass side bussed large enclosure
Specification Sheet
