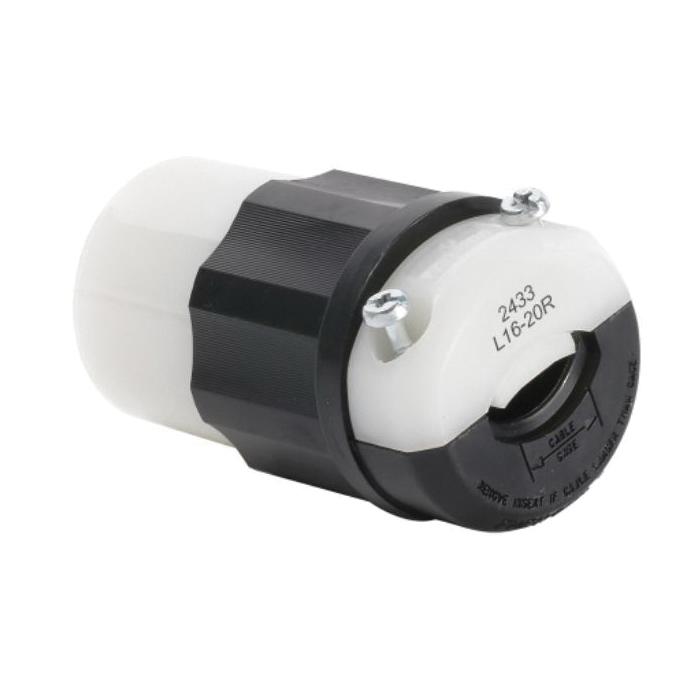

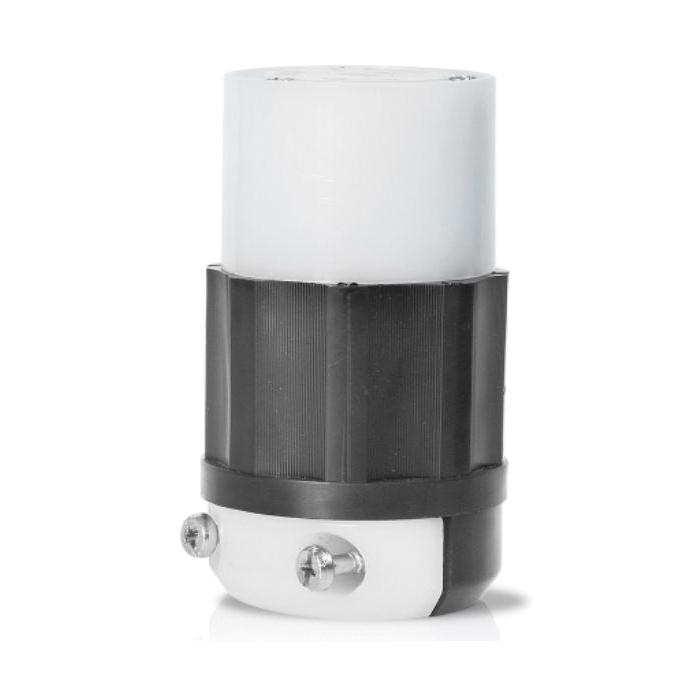

Leviton® Locking Connector, 480 VAC, 20 A, 3 Pole, 4 Wires, 3 ph, 0.56 to 0.775 in Cord Dia, 14 to 10 AWG Wire, NEMA L16-20R, WD-6, Screw Terminal, Grounding, -40 to 60 deg C, Nylon Housing, Brass Contact, Black/White, 3.53 in Length, 2.08 in Width
| Amperage Rating | : | 20 A |
| Color | : | Black/White |
| Contact Material | : | Brass |
| Cord Diameter | : | 0.56 to 0.775 in |
| Grounding Type | : | Grounding |
| Housing Material | : | Nylon |
| Length | : | 3.53 in |

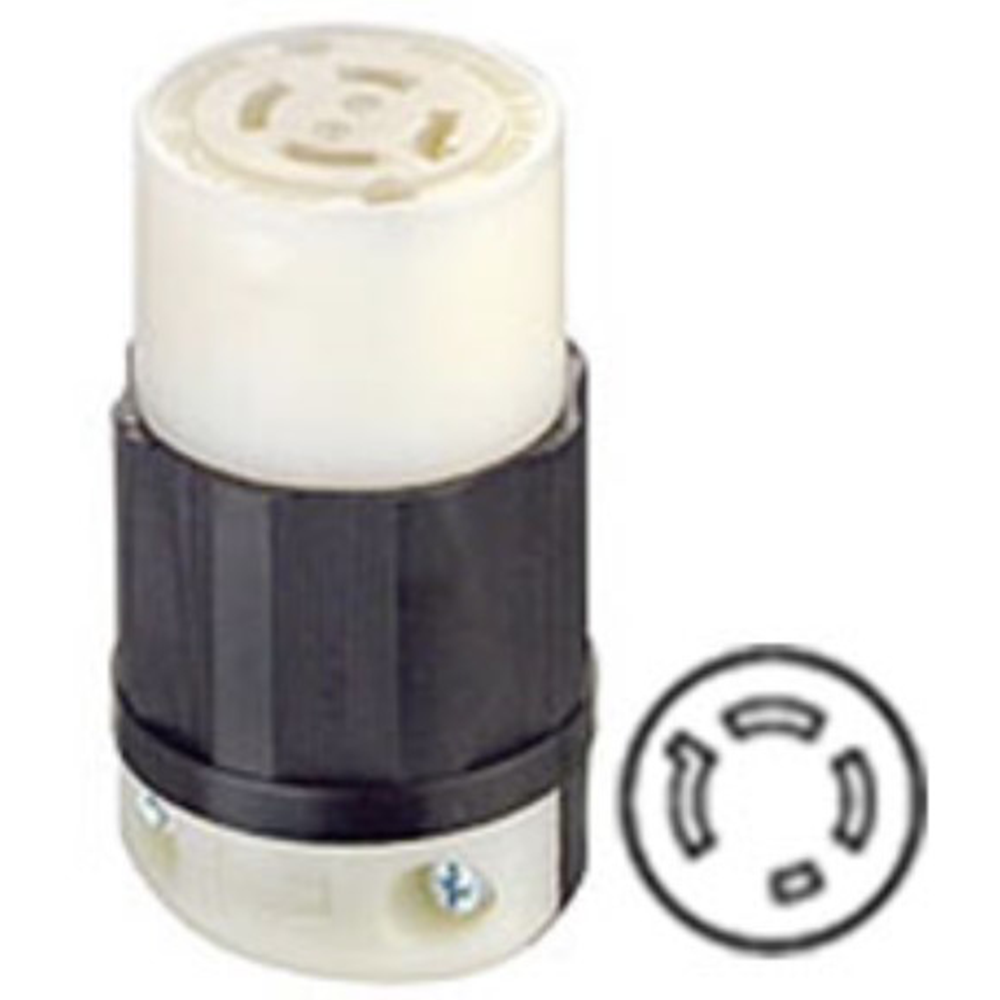

| NEMA Rating | : | NEMA L16-20R, WD-6 |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 3 ph |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 480 VAC |
| Width | : | 2.08 in |
| Wire Size | : | 14 to 10 AWG |
- Leviton® black and white line of industrial-grade plugs, connectors, flanged inlets and outlets offer superior performance, long-lasting reliability and features that are backed by a limited lifetime warranty
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
