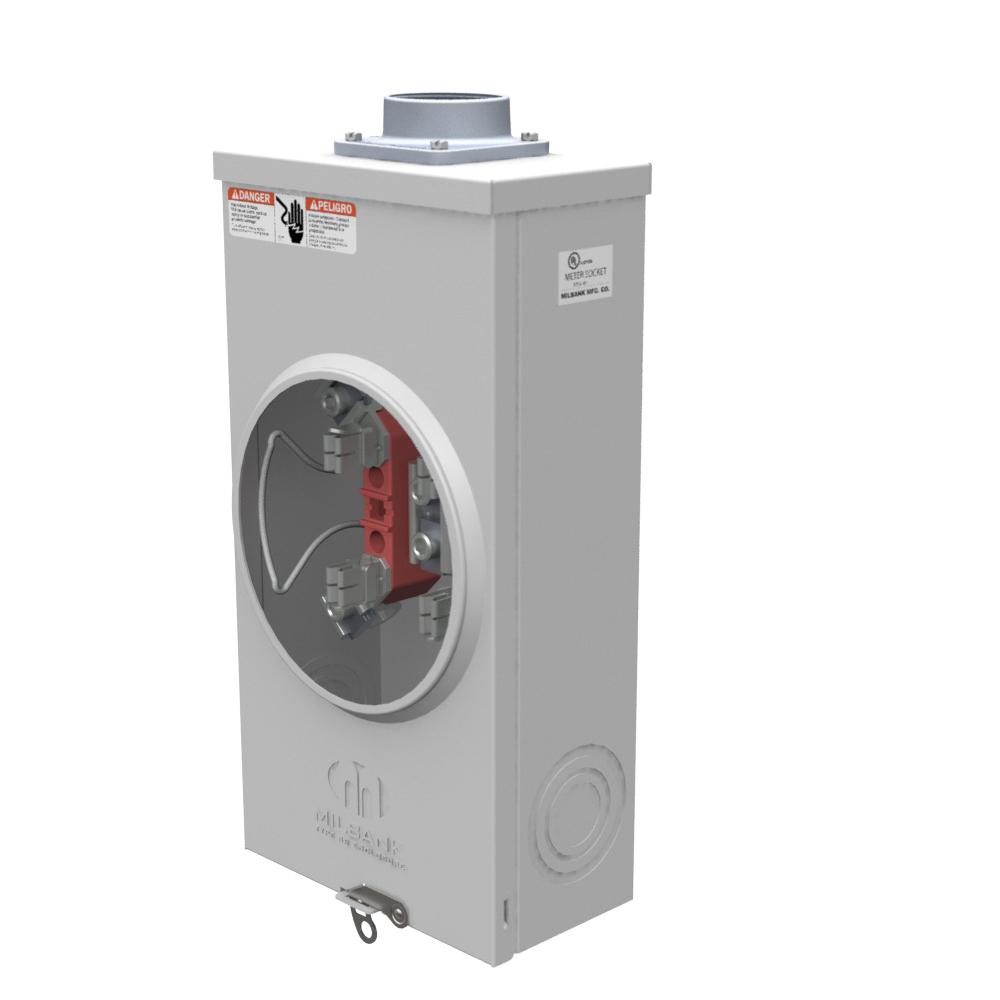

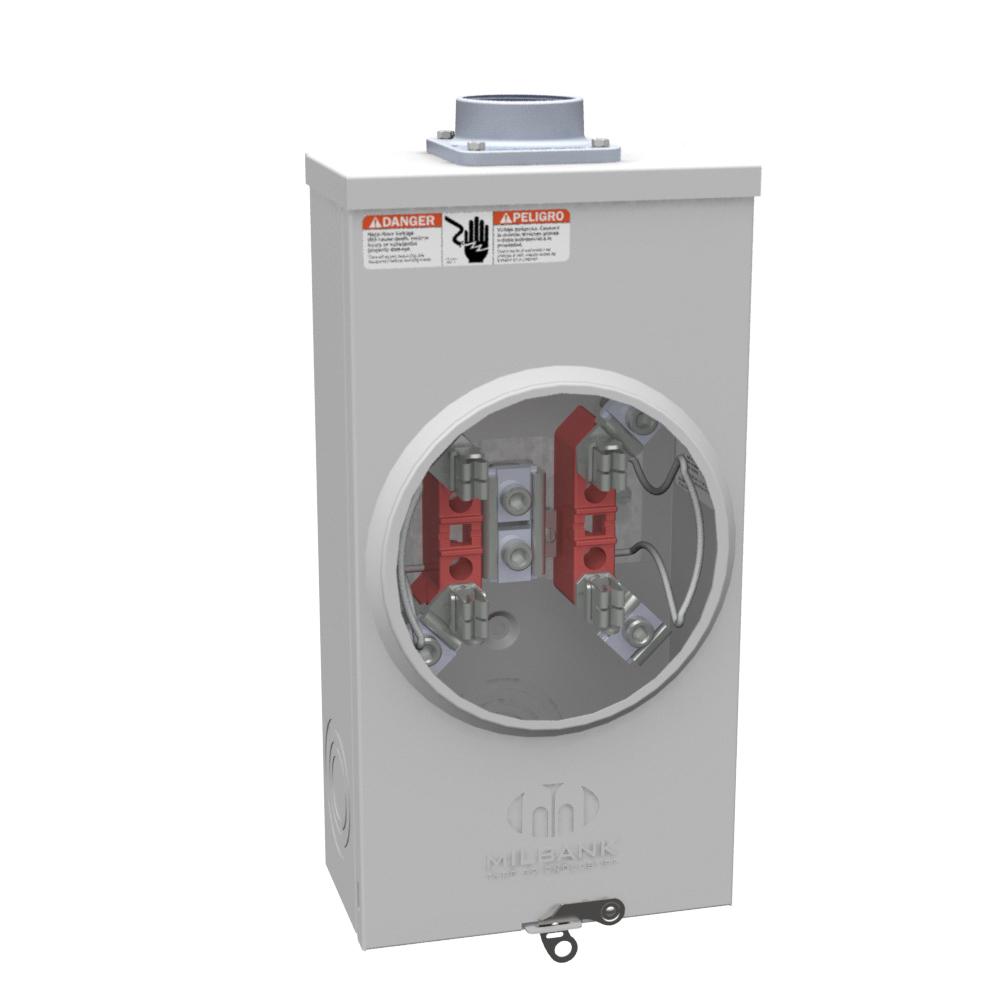

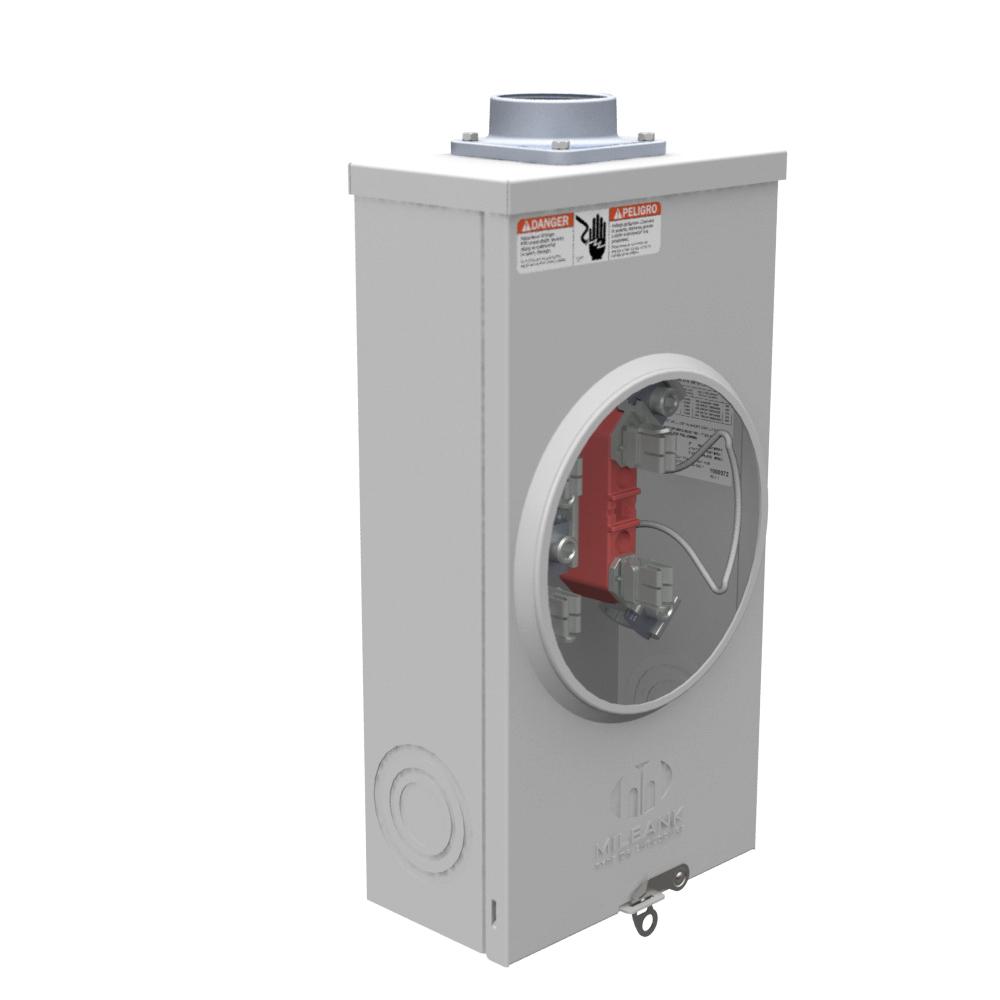

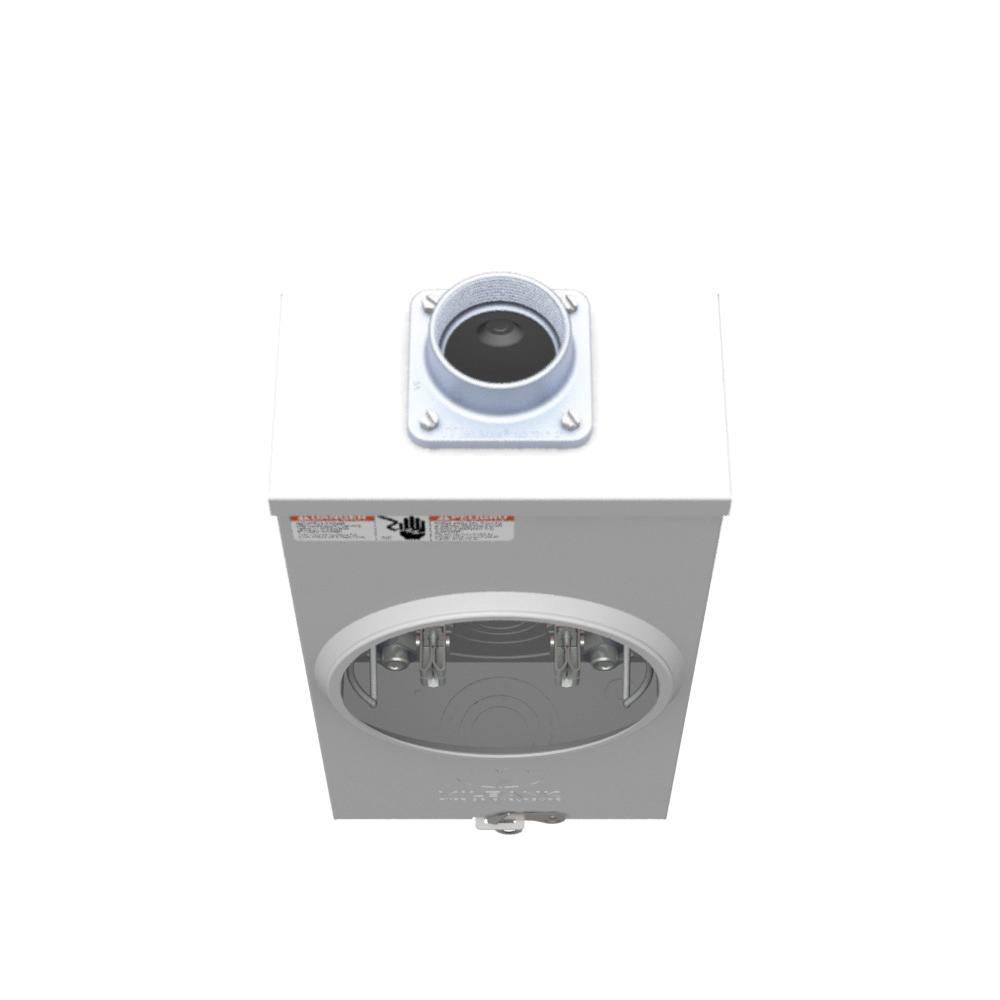

Milbank® Meter Socket, 200 A, 600 V, 60 Hz, Triplex Ground Connection Type, Ringless Cover, 1 ph, Overhead Feed, 4 Jaws, 2 in Hub, Lay-In Terminal, Glass Polyester Insulation, Steel, 6 AWG to 350 kcmil Wire, Surface Mount, NEMA 3R, 4-1/8 in L x 8 in W x 15-1/2 in H, Powder-Coated
| Amperage Rating | : | 200 A |
| Connection Type | : | Triplex Ground |
| Cover Type | : | Ringless |
| Dimensions | : | 4-1/8 in L x 8 in W x 15-1/2 in H |
| Feed Type | : | Overhead |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Hub Size | : | 2 in |
| Insulation Type | : | Glass Polyester |
| Material | : | Steel |
| Mounting Type | : | Surface |
| NEMA Rating | : | NEMA 3R |
| Number of Jaws | : | 4 |
| Phase | : | 1 ph |
| Terminal Type | : | Lay-In |
| Voltage Rating | : | 600 V |
| Wire Size | : | 6 AWG to 350 kcmil |
- Four terminal ringless 2 in hub triplex ground
Specification Sheet
