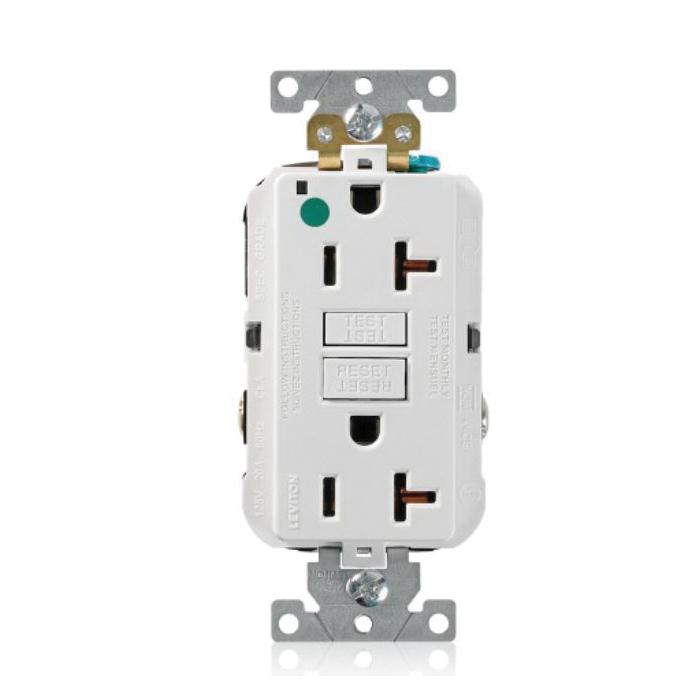

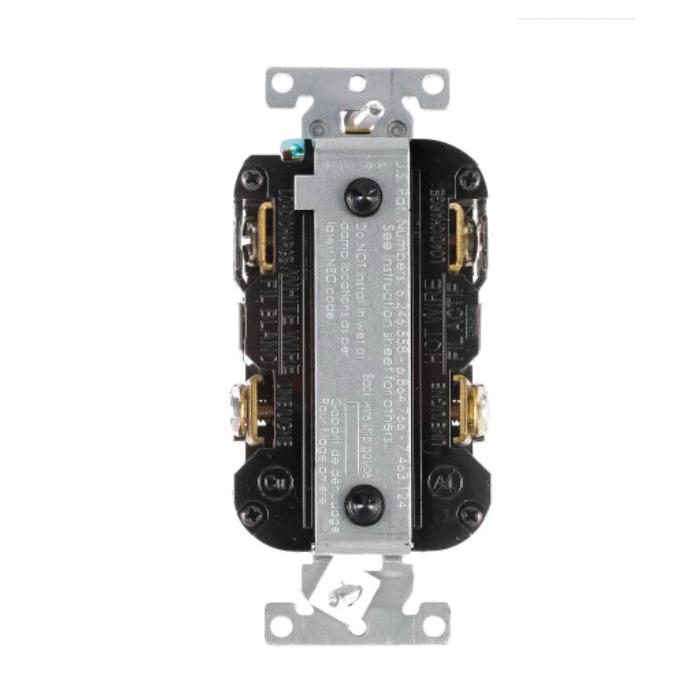

SmartlockPro® Duplex GFCI Receptacle, 125 VAC, 20 A, 1 hp, 10 kA Short Circuit, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Self-Grounding Grounding, NEMA 5-20R, LED Indicator, Bracket Mount, Back Wired, Side Wired Terminal, Polycarbonate Body, Brass Contact, White, -35 to 66 deg C, 1.36 in Length, 1.74 in Width, 4.05 in Height
| Amperage Rating | : | 20 A |
| Body Material | : | Polycarbonate |
| Color | : | White |
| Contact Material | : | Brass |
| Grounding | : | Self-Grounding |
| Height | : | 4.05 in |
| Indicator Type | : | LED |
| Length | : | 1.36 in |
| Mounting Type | : | Bracket |
| NEMA Rating | : | NEMA 5-20R |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Power Rating | : | 1 hp |
| Short Circuit Rating | : | 10 kA |
| Temperature Rating | : | -35 to 66 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.74 in |
| Wire Size | : | 14 to 10 AWG |
- Smooth (not textured) PBT face cover facilitates cleaning and provides significant impact resistance and protection from harsh chemicals
- Dual function status indicator light provides simple, intuitive feedback on power and protection status as well as correct wiring
- Wiring clamp provides for back or side wiring of ground terminal
- Wraparound steel strap provides superior structural integrity, especially in hard-use environments
- Brass self-grounding clip is permanently staked on for secure and reliable performance
- Removable safety covers on feed through terminals provide added safety
- Leviton patented reset lockout
- Tamper-resistant shutters (where stated)
- Slim profile provides 25% more room in the wall box
- Improved strap design provides greater support, even with ears removed
- Back and side wire (external back wire clamps)
- Line terminal clamps initially held open to expedite first time wiring
- Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles
- No power will be delivered to receptacle face if improperly wired (line load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Low profile design is easy to install in all electrical boxes
- Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost
