NSI PIWC-4-C NSI PIWC-4-C In Stock
  1. pin-int

NSI PIWC-4-C NSI PIWC-4-C

4-Wire Connector, PIWC-4-C, 22 to 12AWG Wire, Polycarbonate

  • Manufacturer: NSi Industries
  • Brand Name: NSI
  • Part#: NSI PIWC-4-C
  • MPN: PIWC-4-C
  • UPC: 662381159687
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

NSI Easy-Twist™ 4-Wire Connector, 22 to 12 AWG Wire, 600 V, Push-In Connection Type, Polycarbonate, Yellow, -40 to 221 deg F

Cable Type      :      Copper
Color      :      Yellow
Connection Type      :      Push-In
Material      :      Polycarbonate
Temperature Rating      :      -40 to 221 deg F
Voltage Rating      :      600 V
Wire Size      :      22 to 12 AWG
  • Push-in connectors with clear construction excel in environments where speed, visual inspection and convenience are required
  • No need to twist or tape conductors - just strip the wires and insert one per opening to guarantee a tight connection
  • Clear four-wire connectors are color-coded for easy identification and fit solid or stranded wires in the 22 to 12 AWG size range
  • In line construction and compact shape provide flexibility for working inside boxes or other tight spaces

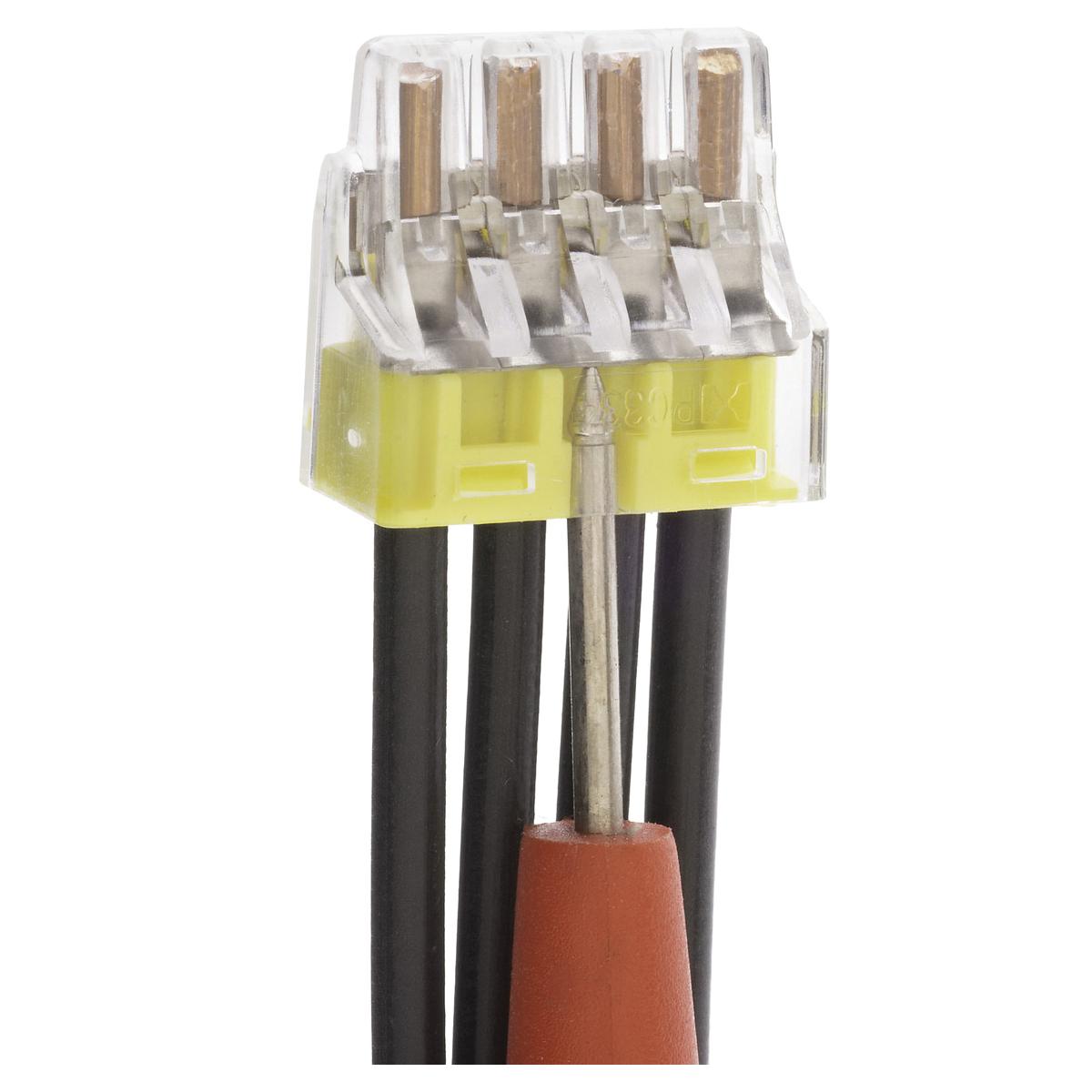

  • Comes packed with key features for professionals, including an integrated test port, flame retardant polycarbonate body and stainless steel spring
