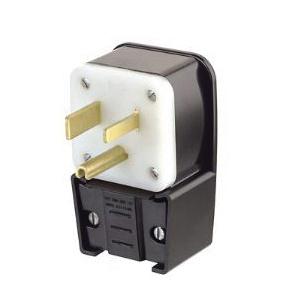

Leviton® Blade Plug, 250 VAC, 50 A, 3 hp HP Rating, 2 Pole, 3 Wires, 5/8 to 1-3/8 in Cord Dia, 6 to 4 AWG Conductor, Industrial Grade, NEMA 6-50P, WD-6, Screw Terminal, Nylon Housing, Brass Blade, Steel Screw, Black, -40 to 60 deg C, 4.37 in Length, 2.77 in Width
| Amperage Rating | : | 50 A |
| Blade Material | : | Brass |
| Color | : | Black |
| Conductor Size | : | 6 to 4 AWG |
| Cord Diameter | : | 5/8 to 1-3/8 in |
| Grade | : | Industrial |
| HP Rating | : | 3 hp |
| Housing Material | : | Nylon |
| Length | : | 4.37 in |
| NEMA Rating | : | NEMA 6-50P, WD-6 |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Screw Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 250 VAC |
| Width | : | 2.77 in |
Full Engineering Drawing
