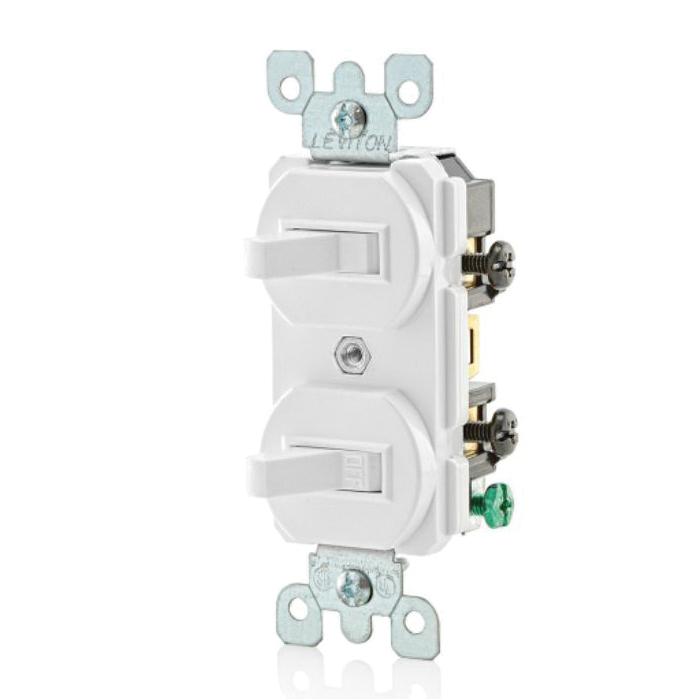

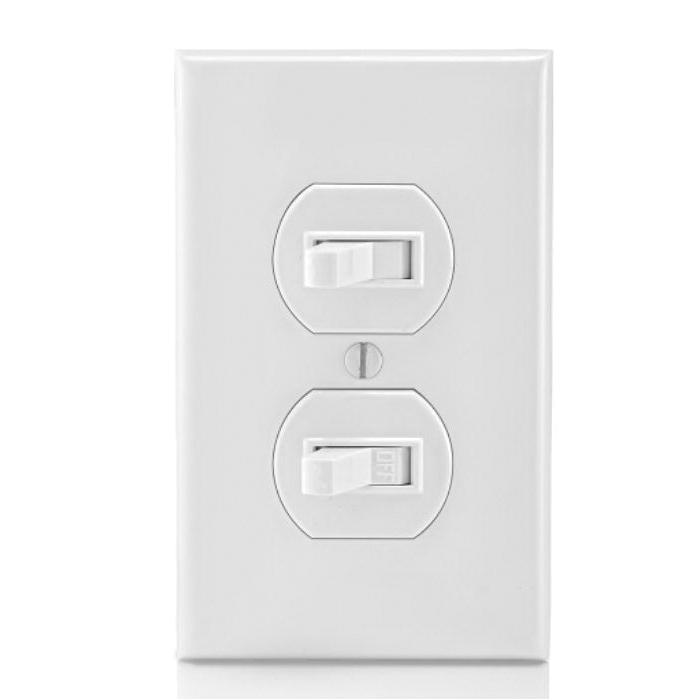

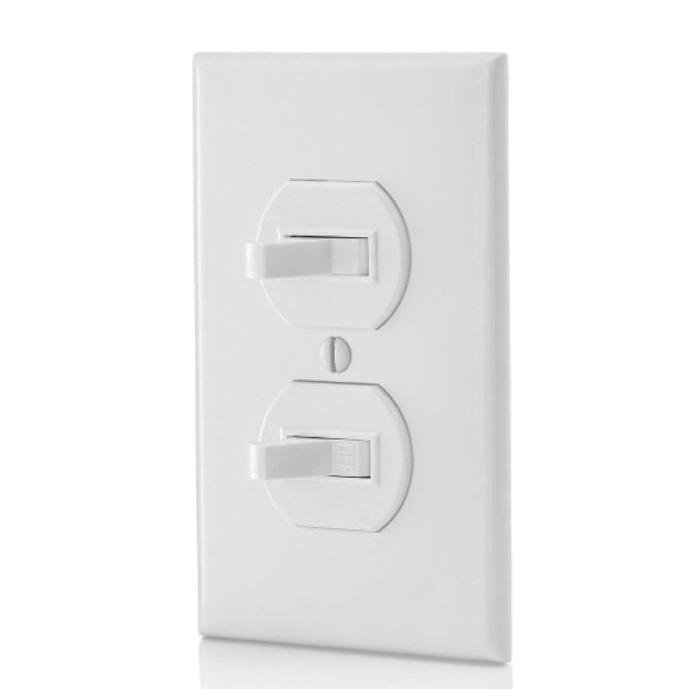

Leviton® 5241-WS LEV 5241-WS

SWITCH COMBO 3WAY/S/P WHITE 15A

  • Manufacturer: Leviton
  • Brand Name: Leviton®
  • Part#: LEV 5241-WS
  • MPN: 5241-WS
  • UPC: 078477070987
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Leviton® Duplex Combination Switch, 120/277 VAC, 15 A, 1/2 hp, Side Wired Connection Type, 1 Pole, NEMA WD-1, WD-6, Commercial, Residential Grade, Thermoplastic Body, Thermoplastic Actuator Material, White, -40 to 65 deg C, 4.2 in Height, 1.61 in Width

Actuator Material      :      Thermoplastic
Amperage Rating      :      15 A
Body Material      :      Thermoplastic
Color      :      White
Connection Type      :      Side Wired
Enclosure Type      :      NEMA WD-1, WD-6
Grade      :      Commercial, Residential
Height      :      4.2 in
Number of Poles      :      1
Power Rating      :      1/2 hp
Temperature Rating      :      -40 to 65 deg C
Voltage Rating      :      120/277 VAC
Width      :      1.61 in
