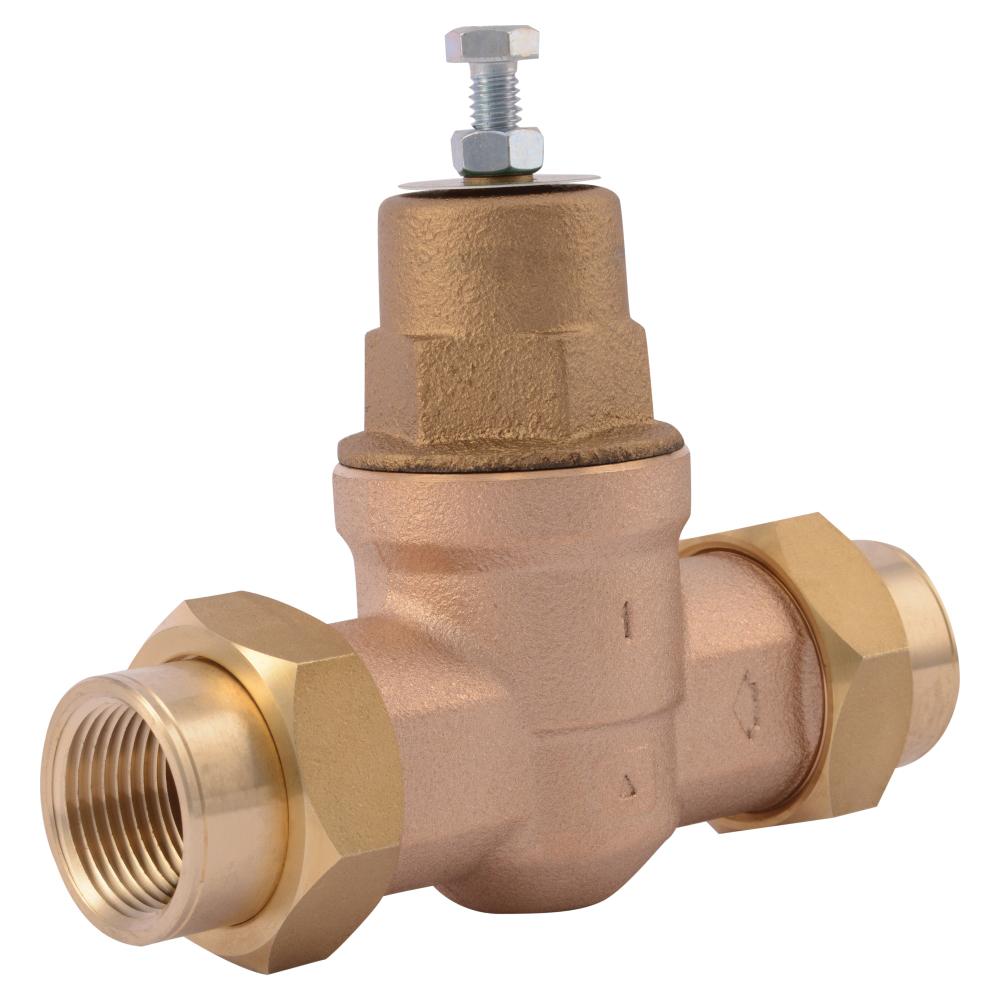

SharkBite™ Double Union Pressure Regulating Valve, Series: EB45, 1 in Nominal, Double Union NPT Connection, 400 psi, Water Media, 6.17 in Inlet to Outlet Length, 4.35 in Top to Inlet Center, Bronze Body, Polysulfone Seat, EPDM Disc, Metal Handle, EP Softgoods, 33 to 180 deg F, 6.17 in L x 5.4 in H
| Body Material | : | Bronze |
| Connection Type | : | NPT |
| Dimensions | : | 6.17 in L x 5.4 in H |
| Disc Material | : | EPDM |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 6-3/16 in |
| Media | : | Water |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 10 to 70 psi, 400 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Polysulfone |
| Series | : | EB45 Series |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 33 to 180 deg F |
| Top to Inlet Center | : | 4-3/8 in |
- Modular cartridge design reduces the number of parts requiring service
- Rugged bronze body
- Bypass mechanism integral with the cartridge
- Every valve is tested for performance prior to shipping
- Assembled and tested in the USA
Instruction/Installation Manual
