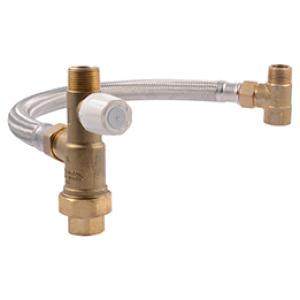

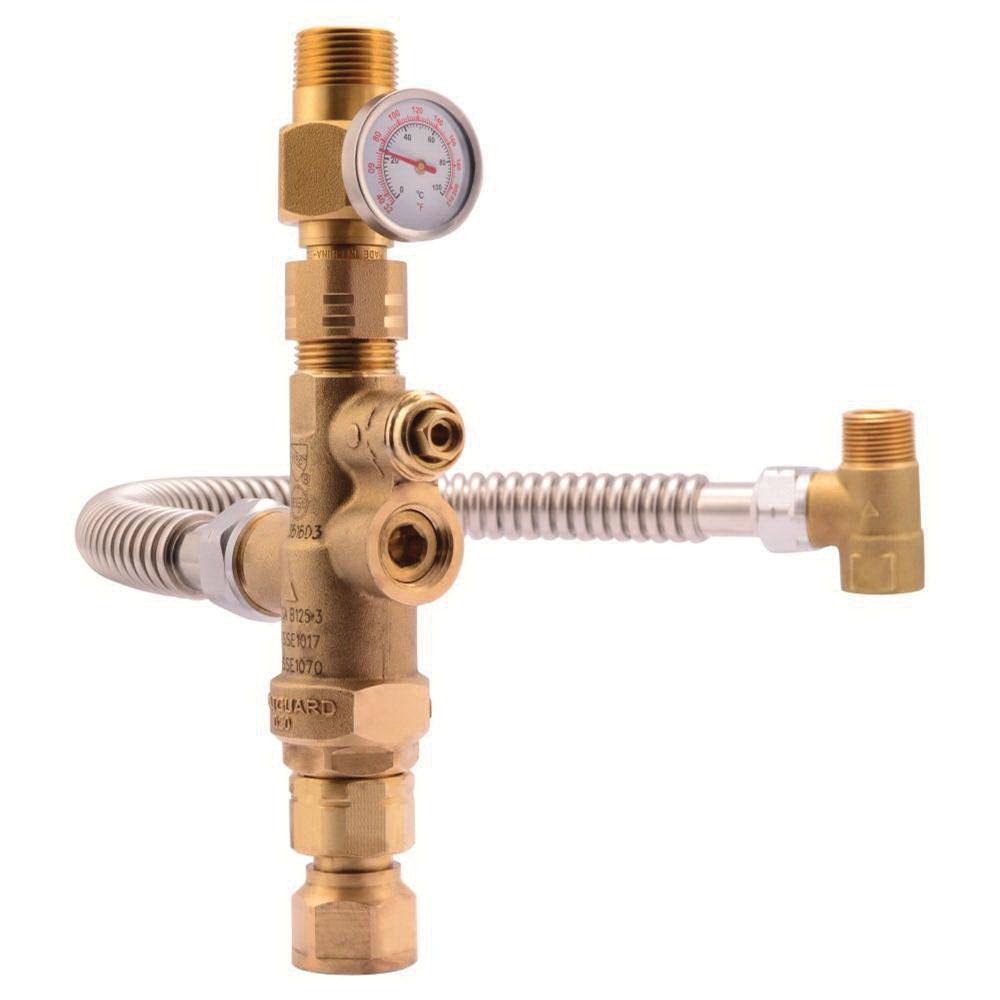

CashAcme™ Thermostatic Mixing Valve, 3/4 in Nominal, MNPT x FNPT x NPSH Connection, 150 psi, 1 gpm Flow Rate, Water Media, 3-1/2 in Inlet to Outlet Length, Brass Body, EPDM Seal, Stainless Steel Trim, EPDM Softgoods, 115 to 120 deg F, 3.5 in L x 6.7 in H
| Body Material | : | Brass |
| Connection Type | : | MNPT x FNPT x NPSH |
| Dimensions | : | 3.5 in L x 6.7 in H |
| End Type | : | MNPT x FNPT x NPSH |
| Flow Rate | : | 1 gpm |
| Inlet to Outlet Length | : | 3-1/2 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Seal Material | : | EPDM |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 115 to 120 deg F |
| Trim Material | : | Stainless Steel |
- Lockable adjustment
- Recirculation port
- Non-returns integral to both inlets
- Filters for both inlets
- Hot inlet and cold inlet supplied
Instruction/Installation Manual
