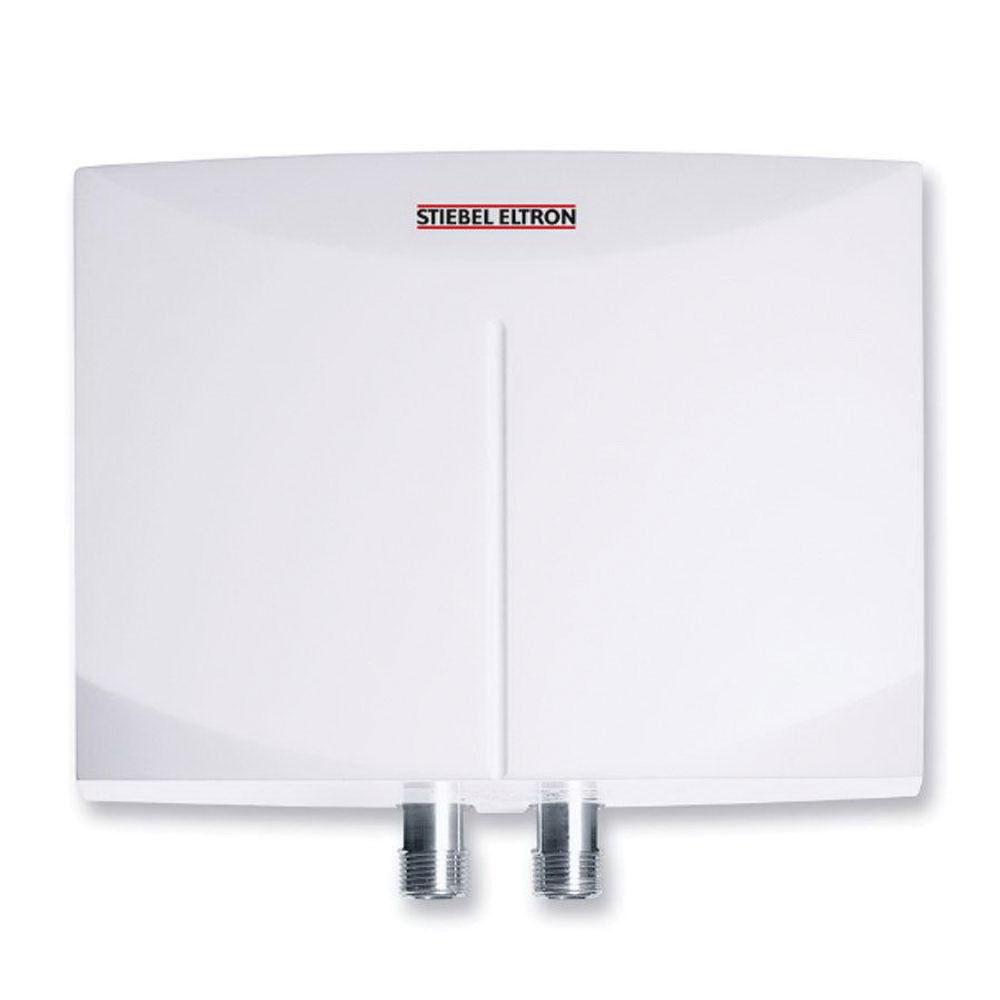

Stiebel Eltron Tankless Electric Water Heater, Model: Mini 3-1, 3 W, 0.4 gpm Flow Rate, 0.99 Energy Factor, 99 % Efficiency, 25 A, 120 V, 50/60 Hz, 1 ph Phase, Hose Connection, 3/8 in Connection, 30 to 150 psi, Wall Mounting, 10 AWG Wire, Plastic, White, Lead-Free, 86 to 122 deg F, 6-1/2 in H x 7-1/2 in W x 3-1/4 in D
| Amperage Rating | : | 25 A |
| Color | : | White |
| Connection Size | : | 3/8 in |
| Connection Type | : | Hose |
| Dimensions | : | 6-1/2 in H x 7-1/2 in W x 3-1/4 in D |
| Efficiency | : | 99 % |
| Energy Factor | : | 0.99 |
| Flow Rate | : | 0.4 gpm |
| Frequency Rating | : | 50/60 Hz |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Plastic |
| Model | : | Mini 3-1 |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Power Rating | : | 3 W |
| Pressure Rating | : | 30 to 150 psi |
| Standby Loss | : | No |
| Temperature Rating | : | 86 to 122 deg F |
| Voltage Rating | : | 120 V |
| Wire Size | : | 10 AWG |
- Continuous supply of warm water on demand
- High-limit switch with manual reset
- Easy installation 3/8 in OD flex connections
- Engineered in Germany to be the best
- Exclusive design prevents dry firing
- No T and P relief valve needed
- Comes complete with wire pigtail
- Correctly sized aerator supplied with unit
- No standby heat loss with tankless design
- Flow switch activated for virtually silent operation
- Cold-water only line needed to be run to lavatory
- Compact and designed to be visible or hidden in cabinet
- Compatible with sensor actuated or metered faucets
- Tankless design prevents legionella bacteria growth
Instruction/Installation Manual
