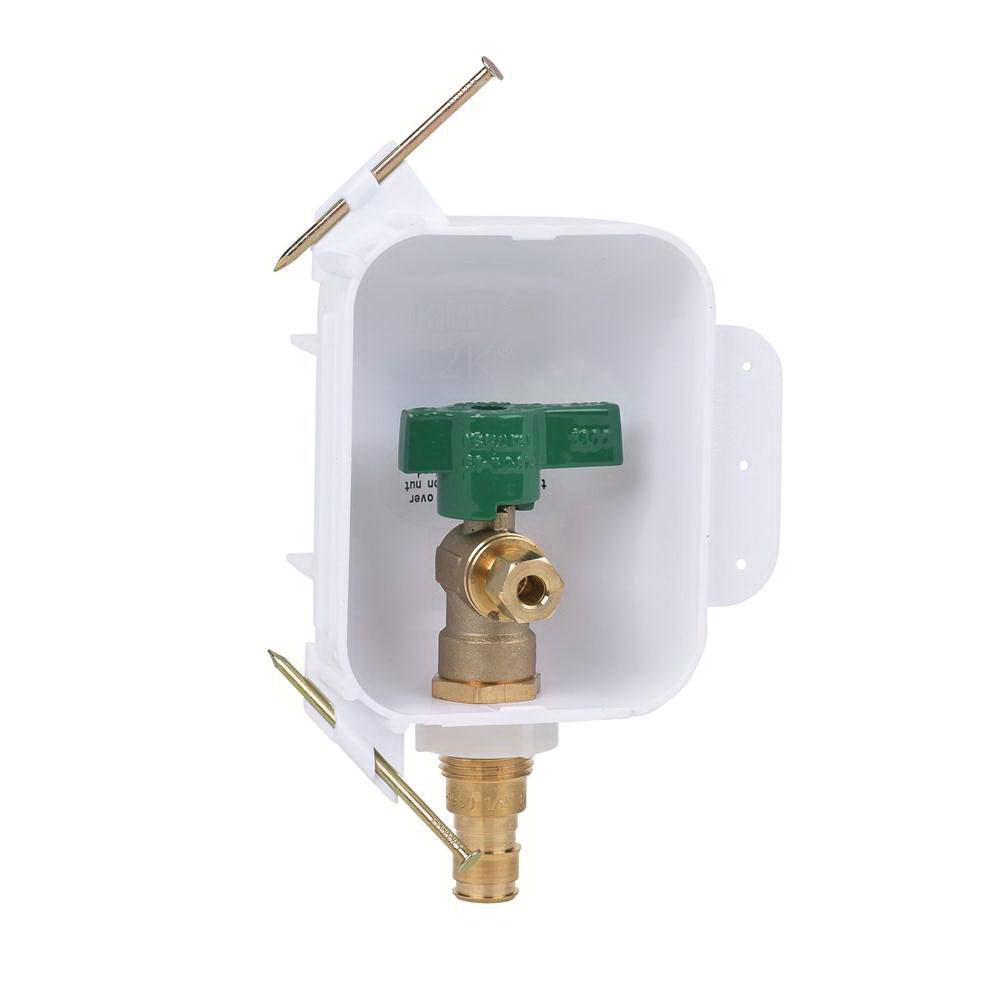

Oatey® Low Lead I2K Ice Maker Outlet Box With Nails, 1/4 in Valve, 1/4-Turn Valve, 4.05 in Box Width, 2.35 in Box Depth, 5.6 in Box Height, High Impact Polystyrene Box, White Box, 5 in Faceplate Width, 5.89 in Faceplate Height, 0.5 in Faceplate Thickness, White Faceplate
| Box Color | : | White |
| Box Depth | : | 2.35 in |
| Box Height | : | 5.6 in |
| Box Material | : | Polystyrene |
| Box Width | : | 4.05 in |
| Connection Type | : | F1960 PEX |
| Faceplate Color | : | White |
| Faceplate Height | : | 5.89 in |
| Faceplate Thickness | : | 1/2 in |
| Faceplate Width | : | 5 in |
| Valve Size | : | 1/4 in |
| Valve Type | : | Quarter-Turn |
- Connects to PEX supply line with F1960 cold expansion connection
- I2K compact size ice maker outlet box
- Preloaded nails for easy installation
- Right or left hand installation
- Provides quick, safe water supply and shut off for refrigerator ice maker and water dispenser
- No support bracket needed
- Valves comply with requirements of NSF 61, Section 9
- Box made of high impact polystyrene stands up to the roughest jobsite abuse
- Accommodates 1 hammer arrestor, sold separately, to reduce noise and protect pipes
