10HP 460V Three Phase VFD IP20 Enclosure, Keypad and EMI/RFI Filter
| Additional Information | : | 10 to 50 deg C Heavy-Duty Temperature, 7.0 lb Net Weight |
| Amps (Heavy Duty 150% for 60 seconds) | : | 16 A |
| Amps Out (Heavy Duty (CT) Single Phase) | : | 8.7 A |
| Built-in 7seg. Keypad | : | Yes |
| Control Type | : | Remote Cable |
| Depth (inch) | : | 6 |

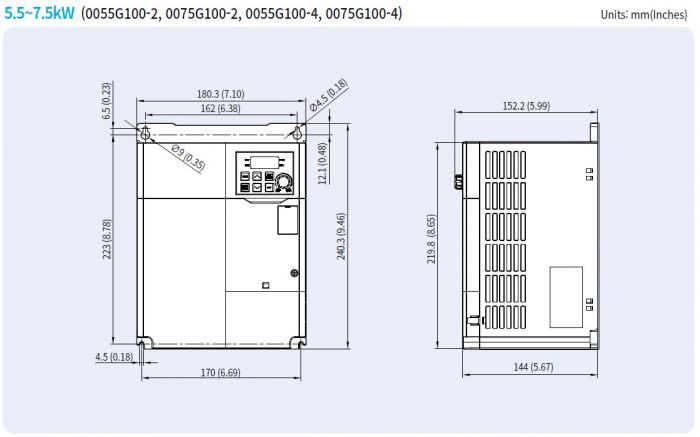

| Dimensions | : | 9.5 in H x 7.1 in W x 6 in D |
| Display Type | : | 7-Segment Keypad |
| Enclosure Type | : | IP20/UL Type 1 |
| Frame Size | : | 4 |
| HP (Heavy Duty (CT) Single Phase) | : | 5 |
| HP (Heavy Duty 150% for 60 seconds) | : | 10 |
| Height (Inch) | : | 9.5 in |
| Input Voltage | : | 380 to 480 VAC |
| Model | : | G100 |
| Motor Output | : | 10 hp Heavy-Duty, 15 hp Normal Duty at 3 Phase, 5 hp Heavy-Duty (CT), 7.5 hp Normal Duty (VT) at 1 Phase |
| Mounting Type | : | DIN-Rail |
| Output Current | : | 16 A Heavy-Duty, 23 A Normal Duty at 3 Phase, 8.7 A Heavy-Duty (CT), 12.6 A Normal Duty (VT) at 1 Phase |
| Output Voltage | : | 380 to 480 VAC |
| Phase | : | 3 ph |
| Remote Cable Capability | : | Yes |
| Voltage | : | 380 - 480 VAC |
| Width (Inch) | : | 7.1 in |
- MIL 217 plus reliability design
- Built-in rotary potentiometer
- Starting torque of 200% at 0.5 Hz
- Embedded C3 EMC filter
