Three Phase 380 to 480 VAC (-15% to +10%) up to 100 hp (HD) IP20

50HP 460V Three Phase VFD IP20 Enclosure, Keypad, DC Link Inductor

Additional Information	:	10 to 50 deg C Heavy-Duty Temperature, 77.2 lb Net Weight
Amps (Heavy Duty (CT) Single Phase) Input	:	69 A
Amps (Heavy Duty 150% for 60 seconds)	:	75 A
Built-in Keypad Type	:	LCD
Control Type	:	Sensorless Vector, V/F
DC Reactor Built-in	:	Yes
Depth (inch)	:	11.2 in
Dimensions	:	20.1 in H x 12.8 in W x 11.2 in D
Display Type	:	LCD
EMC Filter Built-in	:	No
Enclosure Type	:	IP20/NEMA 1
Frame Size	:	13
HD (CT) 3 Phase Output Amps	:	39 A
HP (Heavy Duty (CT) Single Phase) Input	:	25
HP (Heavy Duty 150% for 60 seconds)	:	50
Height (Inch)	:	20.1 in
IP	:	IP20
Input Current	:	69 A Heavy-Duty (CT) at 1 Phase, 85 A Normal Duty (VT) at 1 Phase
Input Voltage	:	380 to 480 VAC
Model	:	S100
Motor Output	:	50 hp Heavy-Duty, 60 hp Normal Duty at 3 Phase, 25 hp Heavy-Duty (CT), 30 hp Normal Duty (VT) at 1 Phase
Output Current	:	75 A Heavy-Duty, 91 A Normal Duty at 3 Phase
Output Voltage	:	380 to 480 VAC
Phase	:	3 ph
Voltage	:	380 - 480 VAC
Width (Inch)	:	12.8 in

Main capacitor and fan lifecycle estimation

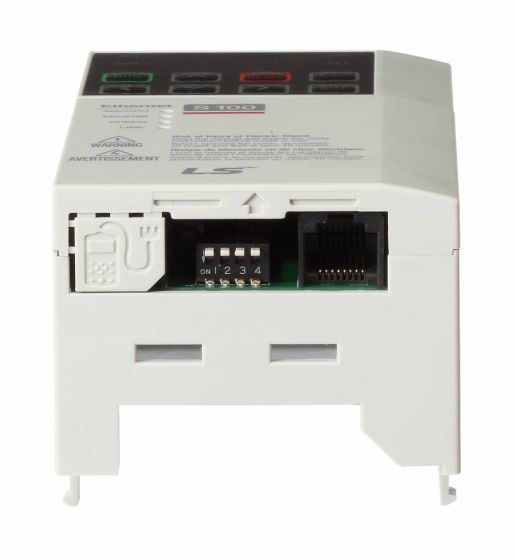

Peer to peer communications
Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
Control Methods: V/f, Slip compensation, Sensorless vector
Power loss ride through
Dual rated for constant or variable torque
Side by side installation
Heatsink out the back (flange option)
Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode
