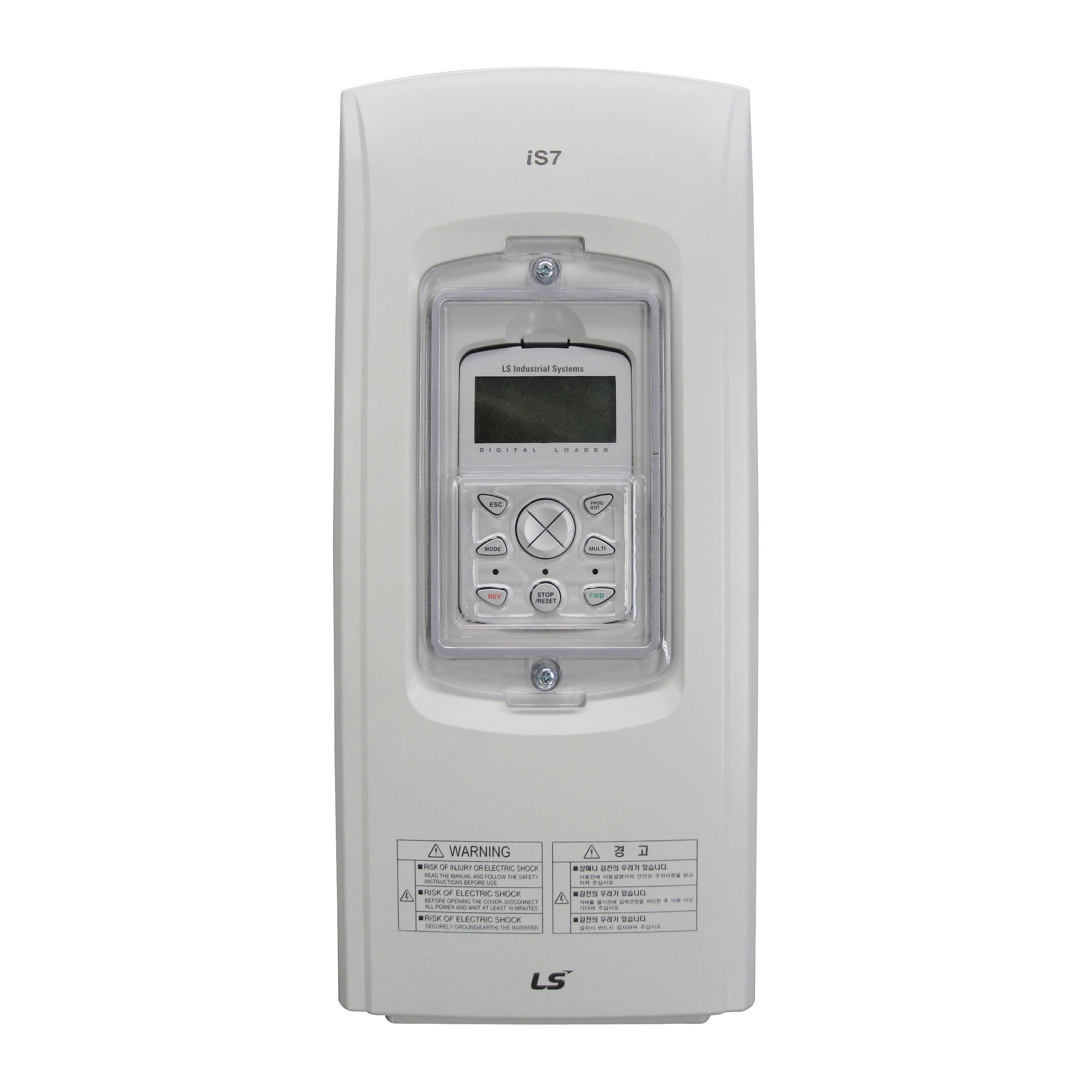

100HP 230V Three Phase VFD, IP20 Enclosure, Keypad
| Additional Information | : | 10 to 50 deg C Heavy-Duty Temperature, 159.8 lb Net Weight, 64110042 Conduit Option |
| Amps (Heavy Duty (CT) Single Phase) Input | : | 305 A |
| Amps (Heavy Duty Three Phase 150% for 60 seconds) Output | : | 288 A |
| Built-in Keypad | : | Yes |
| Control Type | : | Sensorless Vector, V/F |
| DC Reactor Built-in | : | No |
| Depth (inch) | : | 14 in |

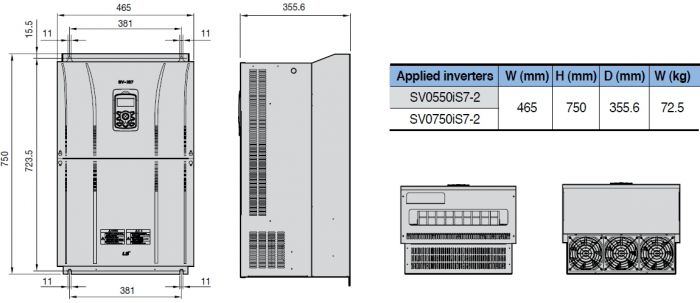

| Dimensions | : | 29.5 in H x 18.3 in W x 14 in D |
| Display Type | : | Keypad |
| EMC Filter Built-in | : | No |
| Enclosure Type | : | IP00/NEMA 1 |
| Frame Size | : | 9 |
| HP (Heavy Duty (CT) Single Phase) Input | : | 50 |
| HP (Heavy Duty 150% for 60 seconds) | : | 100 |
| Height (Inch) | : | 25.9 in |
| Input Current | : | 305 A Heavy-Duty, 362 A Normal Duty at 1 Phase |
| Input Voltage | : | 200 to 240 VAC |
| Model | : | iS7 |
| Motor Output | : | 100 hp Heavy-Duty, 125 hp Normal Duty at 3 Phase, 50 hp Heavy-Duty (CT), 60 hp Normal Duty (VT) at 1 Phase |
| Output Current | : | 288 A Heavy-Duty, 345 A Normal Duty at 3 Phase, 305 A Heavy-Duty (CT), 362 A Normal Duty (VT) at 1 Phase |
| Output Voltage | : | 200 to 240 VAC |
| Phase | : | 3 ph |
| Voltage | : | 200 to 240 VAC |
| Width (Inch) | : | 18.3 in |
- Control mode: V/F, V/F PG, Sensorless Vector, Vector
- Standard Protection Rating: IP21, optional IP54 enclosure (~ 22kW)
- Speed Control Range 1:100(Sensorless Vector), 1:1000(Vector)
- LV Trip Delay Function, Cooling Fan Control
- Droop Control, KEB Function, Flying Start, Flux Brake
- PMSM Control
- Built-in RS485 & Modbus Communication
- Profibus-DP, DeviceNet, LonWorks, Rnet, Modbus TCP Option
- Max. Input 11 Points, Output 6 Points when use expended I/O Card
- PLC Card option: Master-K platform Normal Input 14 Points, Normal Output 7 points
- Encoder Card option
- Built-in EMC filter to protect from excessive electronic distortion
- DC reactor built-in for harmonic reduction and power factor improvement
