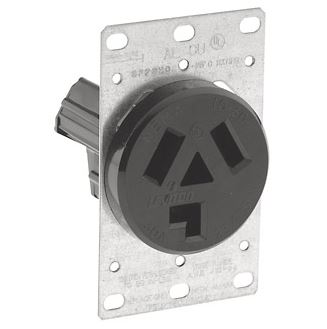

Leviton® Single Receptacle, 125/250 VAC, 50 A, 2 hp HP Rating, 3 Pole, 3 Wires, Industrial Grade, NEMA 10-30R, Shallow Construction, 2000 V Dielectric, Non-Grounding Grounding, 4 AWG Conductor, Flush Mount, Thermoplastic Housing, Brass Contact, Steel Strap, Black, -40 to 60 deg C, 2.42 in Length, 1.61 in Width, 3-3/4 in Height
| Amperage Rating | : | 50 A |
| Color | : | Black |
| Conductor Size | : | 4 AWG |
| Construction | : | Shallow |
| Contact Material | : | Brass |
| Dielectric Strength | : | 2000 V |
| Grade | : | Industrial |
| Grounding | : | Non-Grounding |
| HP Rating | : | 2 hp |
| Height | : | 3-3/4 in |
| Housing Material | : | Thermoplastic |
| Length | : | 2.42 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA 10-30R |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Strap Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Voltage Rating | : | 125/250 VAC |
| Width | : | 1.61 in |
Instruction/Installation Manual
