KEYSTONE KT-LED100HID-EX39-850-D /G2-DP KEY KT-LED100PSHID-EX39-850-D /G4 In Stock
  1. pin-int

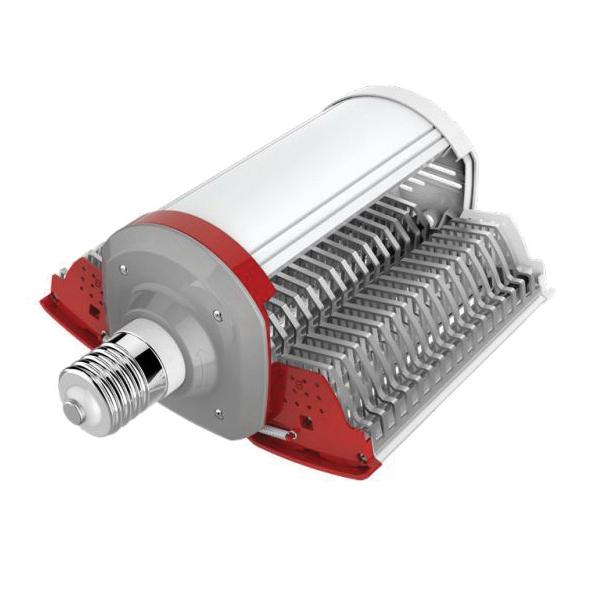

KEYSTONE KT-LED100HID-EX39-850-D /G2-DP KEY KT-LED100PSHID-EX39-850-D /G4

HID Replacement Lamp, 800 DirectDrive

  • Manufacturer: Keystone Technologies
  • Brand Name: KEYSTONE
  • Part#: KEY KT-LED100PSHID-EX39-850-D /G4
  • MPN: KT-LED100HID-EX39-850-D /G2-DP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

KEYSTONE HID Replacement Lamp, 800 DirectDrive Series, 100 W Wattage, 15000 Lumens, 5000 K, Extended Mogul Bulb Base, EX39 Bulb Base Code, 120 to 277 VAC, >80 CRI, LED100HID/EX39/850/D/G2/DP Bulb Designation, 50000 hr Average Life, 360 deg Beam Angle, No Dimmable, 5.12 in Diameter, 10.32 in Length, Additional Information: 0.93 to 0.4 A Current Rating, Instant Start

Additional Information      :      0.93 to 0.4 A Current, Instant Start
Amperage Rating      :      0.93 to 0.4 A
Average Life      :      50000 hr
Beam Angle      :      360 deg
Bulb Base Code      :      EX39
Bulb Base      :      Extended Mogul
Bulb Designation      :      LED100HID/EX39/850/D/G2/DP
Color Rendering Index (CRI)      :      >80
Color Temperature      :      5000 K
Diameter      :      5.12 in
Dimmable/Non-Dimmable      :      Non-Dimmable
Dimmable      :      No
Lamp Base      :      EX39 Mogul
Lamp Designation      :      LED100HID/EX39/850/D/G2/DP
Lamp Type      :      LED
Length      :      10.32 in
Lumens      :      15000 Lumens
Power Rating      :      100 W
Series      :      800 DirectDrive Series
Start Type      :      Instant
Voltage Rating      :      120 to 277 VAC
Wattage      :      100 W
  • Replacement for conventional metal halide lamp
  • Environmentally friendly - no mercury used
  • Exceeding 86 deg F in fully enclosed fixtures will engage active cooling and power de-rating to ensure product lifetime
  • Integral driver, eliminates the need for external driver or ballast - includes 6 kV surge protection
  • Active cooling technology - when internal thermal sensor is engaged, lamp power reduces to 80% of max, when sensor cools, lamp powers back up to 100% rated power
  • Lamp includes safety tether for additional security when installing lamp in luminaire
  • Suitable for use in fully enclosed fixture
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/KEYSTONE_KT_LED100HID_EX39_850_D__G2_DP_Specification_Sheet.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/KEYSTONE_KT_LED110HID_H_EX39_850_D_G3_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/mkzi6Oqf7ZE
  • linkVideo Link https://youtu.be/rnSFIeimJIs
