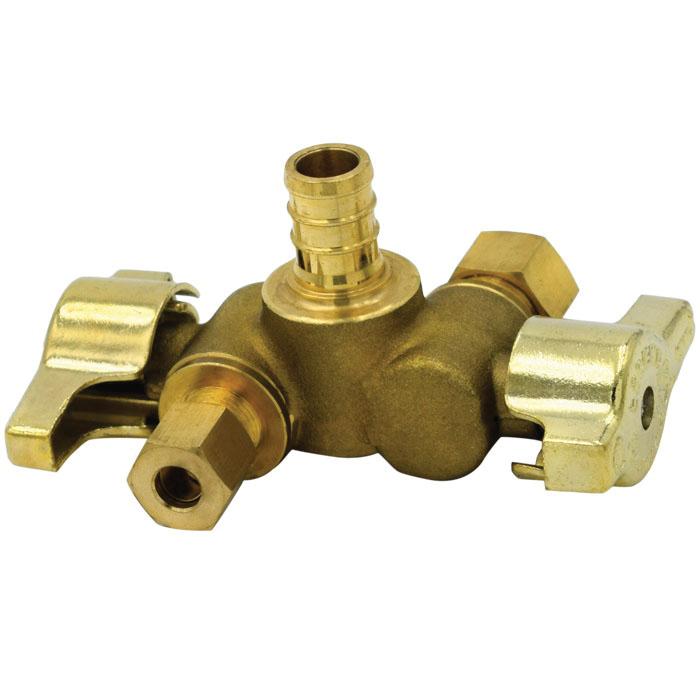

Legend Valve 114-632NL LEG 114-632NL

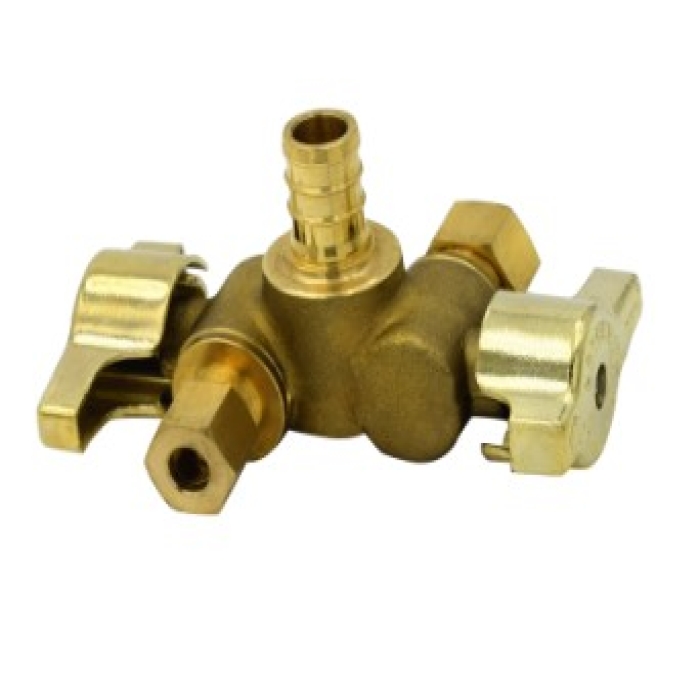

T-598NL Series 114-632NL Angle Stop Valve, 1/2 x 3/8 x 3/8 in, Compression, Brass, Lead-Free, 125 psi CWP
- Manufacturer: Legend Valve
- Brand Name: Legend Valve
- Part#: LEG 114-632NL
- MPN: 114-632NL
- UPC: 662545129600
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price: $27.00
Legend Valve Angle Stop Valve, T-598NL Series Series, 1/2 x 3/8 x 3/8 in Nominal, Compression Connection, 125 psi CWP, 1.1 in Top to Inlet Center, 2, Quarter-Turn Handle Operator, Lead-Free, ASTM B124 UNS Alloy C46400 Material Standard, Brass Body, EPDM Seat, Brass Stem, NBR Seal, Carbon Steel Handle, Chrome, 180 deg F, 3.23 in L
| Actuator Type | : | Quarter-Turn Handle |
| Additional Information | : | 2.8 in L Inlet to Outlet, 2-Handles, Angled Configuration, Brass Stem, EPDM Seat, Lead-Free, Water Media, Water Service |
| Body Material | : | Brass |
| Connection Type | : | PEX x Compression x Compression |
| Dimensions | : | 3.23 in H |
| Domestic/Import | : | Domestic |
| Finish | : | Chrome-Plated |
| Handle Material | : | Zinc |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | AISI 1010, ASTM B86, ASTM B124, ASTM B135, ASTM B16 |
| Nominal Size | : | 1/2 x 3/8 x 3/8 in |
| Number of Handles | : | 2 |
| Operator Type | : | Quarter-Turn Handle |
| Pressure Rating | : | 125 CWP |
| Seal Material | : | NBR |
| Seat Material | : | EPDM |
| Series | : | T-598NL Series |
| Softgoods Material | : | EPDM/NBR |
| Stem Material | : | Brass |
| Temperature Rating | : | 180 deg F |
| Top to Inlet Center | : | 1.1 in |
| Trim Material | : | Brass/EPDM |
- Lead-free design is suitable for all lead-free potable water installations, in full compliance of all lead-free plumbing laws
- Dual handle, dual ball design permits independent shutoff of either outlet, vs simultaneous shut-off of both, thereby allowing repair to one fixture without having to shut-off the other
- Perfect for the addition of ice maker, dish washer, hot water and RO water dispensers or water filtration supply lines
- Quarter-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shut-off and re-opening
- An ideal upgrade replacement for worn, leaking multi-turn stops that won't close completely
Specification Sheet
