4.3’’ TFT LCD, 480x272, 24-bit Color(16.7M), DC24V power,based on Win CE core, UL TYPE 4X, Ethernet 1 channel, No LS Logo
- Display Type: TFT color LCD
- Protection: IP65
- Display Size: 10.9cm (4.3 inch)
- Resolution: 480 x 272 (WQVGA)

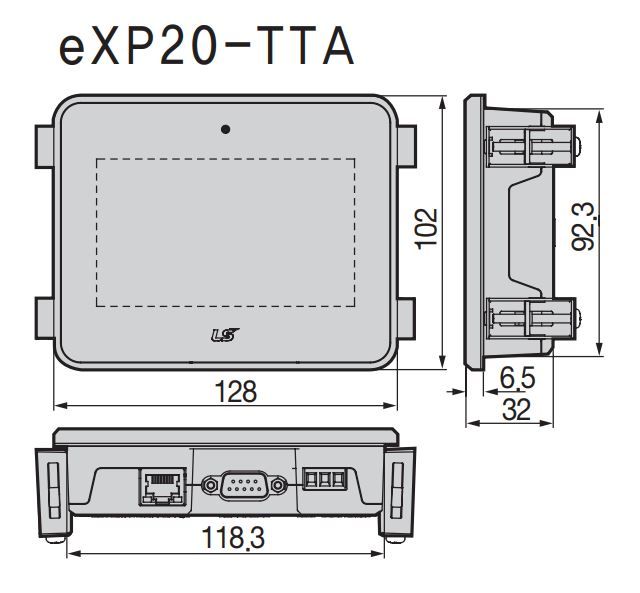

- Size (mm): 128.0 102.0 32.0
- Panel Cut (mm): 119.0 93.0
- Power: 24V DC
- Color: 16.7M colors
- Backlight: LED mode, Auto On/Off
- Backlight Capacity: 30,000 hr
- Touch Panel: 4-wire system, Analogue
- Sound: Magnetic buzzer (85dB)
- Processor: ARM9 Core (32bit RISC), 454MHz
- Backup Type: Date/Time data, Logging/Alarm/Recipe data, non-volatile device
- Batter Capacity: Around 3 years (Upon operation at 25℃)
- USB Port: 1 channels, USB 2.0 host (mouse, keyboard, printer* and USB memory driver is available)
- Multi-language: Up to 12 language simultaneously
- Animation: GIF format is available
