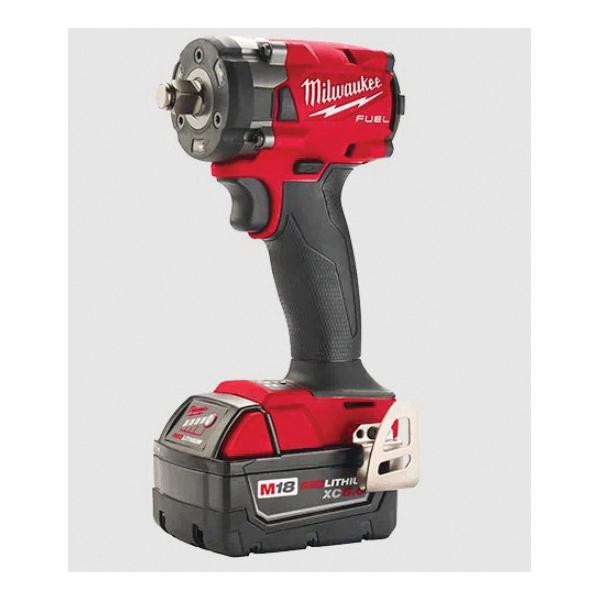

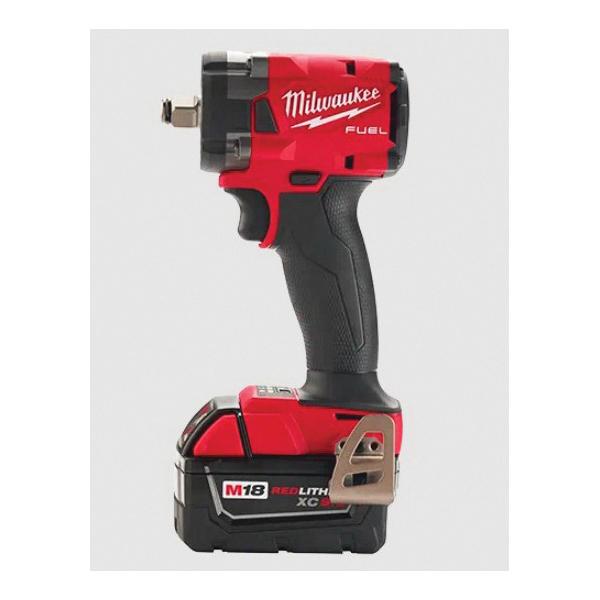

Milwaukee® M18™ Compact Impact Wrench, Tool/Kit: Tool, 1/2 in Drive, Square Drive, 250 ft-lb Torque, Impacts per Minute: 3500 ipm, 18 VDC, REDLITHIUM™ Battery, 5 Ah Battery, 2400 rpm Speed, Speed Setting: 4, Pistol Grip Handle, 4.9 in Overall Length, 2.56 in Overall Width
| Battery Capacity | : | 5 Ah |
| Battery Type | : | REDLITHIUM™ |
| Drive Size | : | 1/2 in |
| Drive Type | : | Square |
| Handle Type | : | Pistol Grip |
| Impacts per Minute | : | 3500 ipm |
| Overall Length | : | 4.9 in |
| Overall Width | : | 2.56 in |
| Speed Rating | : | 2400 rpm |
| Speed Setting | : | 4 |
| Tool/Kit | : | Tool |
| Torque Rating | : | 250 ft-lb |
| Voltage Rating | : | 18 VDC |
- Friction ring (hog ring) ensures quick and easy socket changes
- The POWERSTATE™ brushless motor delivers up to 250 ft-lb of nut busting torque
- Four mode drive Control™ provides greater control over output speed and power, includes auto shut-off and bolt removal mode
- Bolt removal control delivers full torque output, then decreases rpms once the bolt is loosened to prevent fastener drops
- 0 to 1000 ipm mode 1, 0 to 2400 ipm mode 2, 0 to 3500 ipm mode 3, 0 to 3500 ipm mode 4
- 0 to 800 ipm mode 1, 0 to 1650 ipm mode 2, 0 to 2400 ipm mode 3, 0 to 2400 ipm mode 4
- Works in up to 69 kV environments
- 4.9 in L provides most access in tight spaces

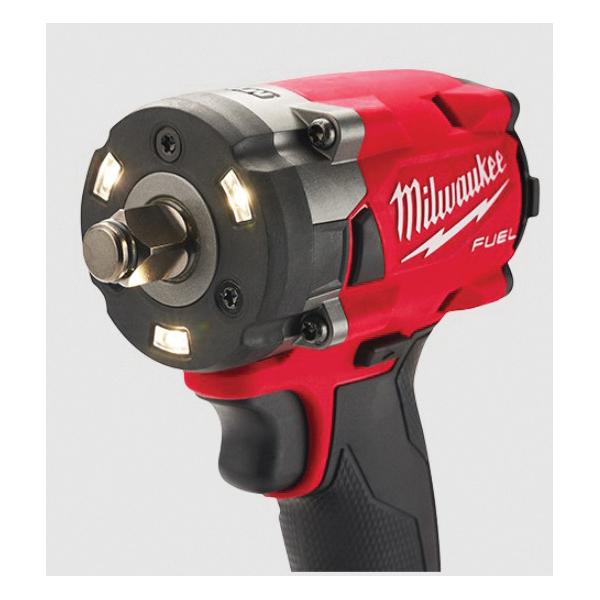

- Tri-LEDs deliver high-definition lighting to increase workspace visibility with less shadows
- Auto SHUT-OFF™ control prevents over tightening and increases productivity by applying no more than 20 ft-lb of torque
- REDLINK™ PLUS™ intelligence ensures maximum performance and protects from overloads, heating and over discharge
- Compatible with all M18 batteries and chargers
