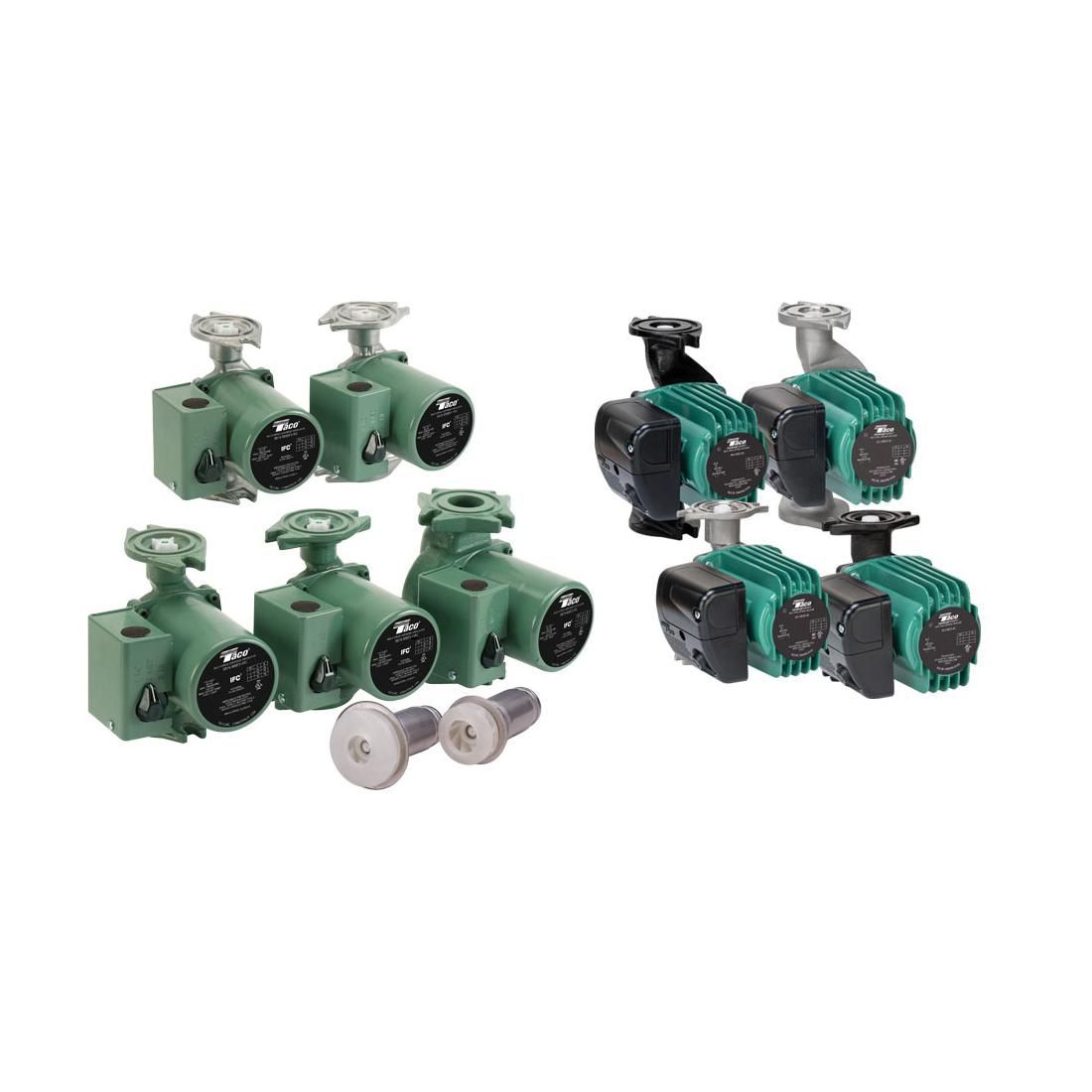

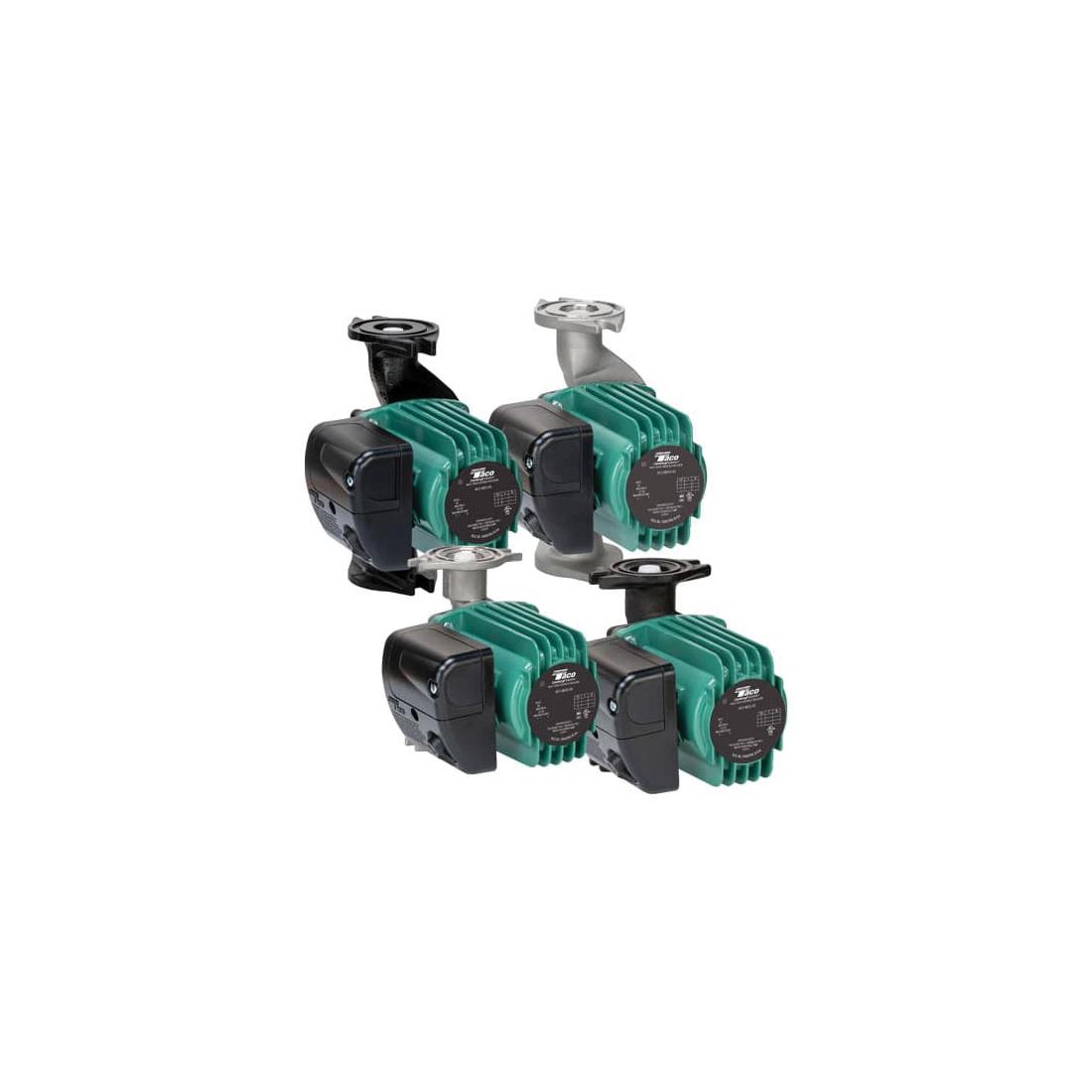

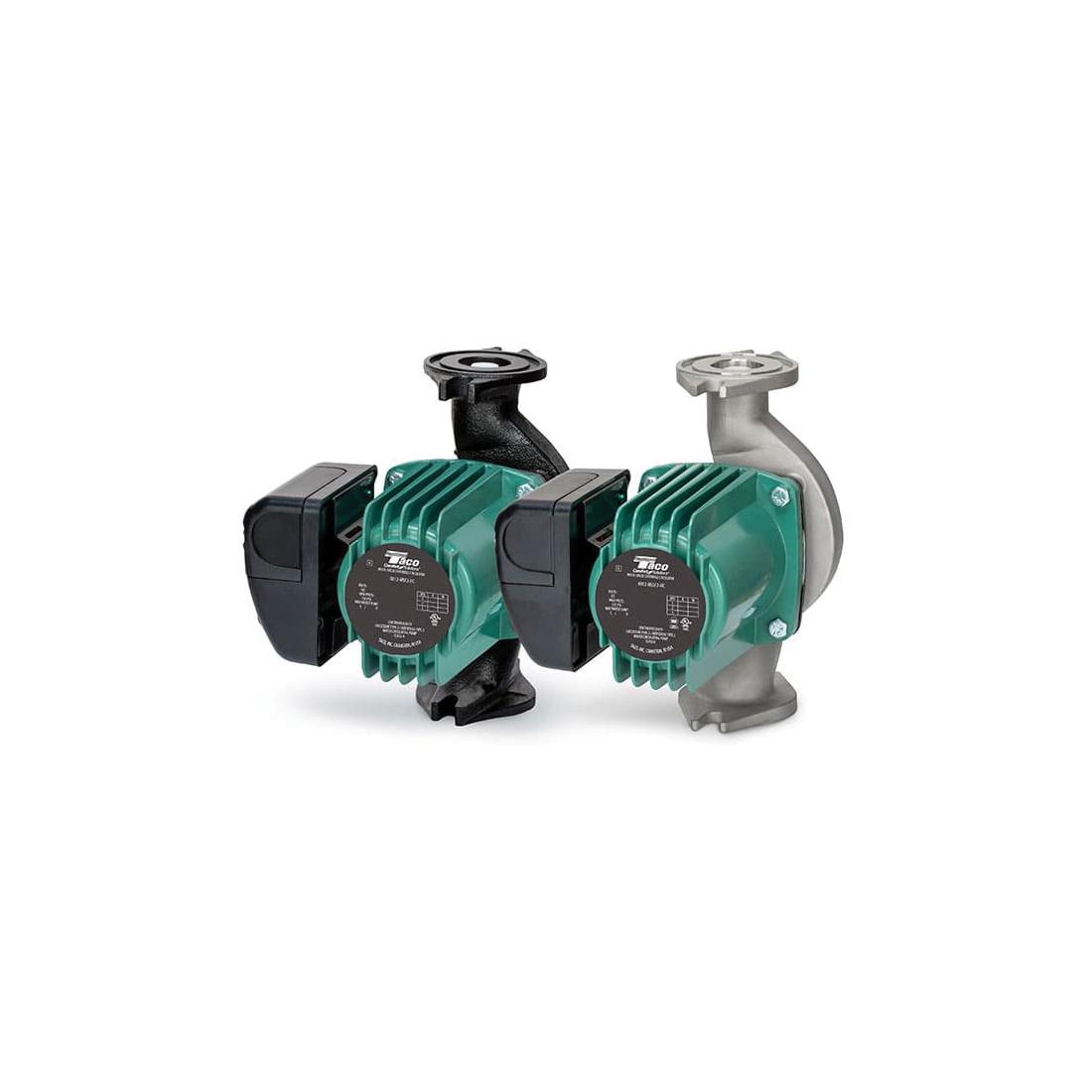

Taco Comfort Solutions® Circulator Pump, 0015 Model, 115 V, 0.85 A, 60 Hz, 1/20 hp, 3250 rpm Speed Rating, 0 to 18 gpm, 1, 3/4, 1, 1-1/4, 1-1/2 in, Flanged, 125 psi Working, 17 ft Maximum Head, Non-Metallic Impeller, Cast Iron Body, 230 deg F Fluid, 6-1/2 in W x 6-3/8 in H x 5-3/8 in D
| Additional Information | : | Non-Metallic Impeller Material |
| Amperage Rating | : | 0.85 A |
| Body Material | : | Cast Iron |
| Connection Size | : | 3/4 in, 1 in, 1-1/4 in, 1-1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 6-3/8 in H x 6-1/2 in W x 5-3/8 in D |
| Flow Rate | : | 0 to 18 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/20 hp |
| Impeller Material | : | Non-Metallic |
| Material | : | Iron |
| Maximum Head | : | 17 ft |
| Maximum Pressure | : | 125 psi |
| Model | : | 0015 |
| Motor Speed Rating | : | 3250 rpm |
| Phase | : | 1 ph |
| Pressure Rating | : | 125 psi Working |
| Speed Rating | : | 3250 rpm |
| Temperature Rating | : | 230 deg F Fluid |
| Voltage Rating | : | 115 V |
- Fine tune to system requirements
- Highest performance and starting torque in class
- Heavy-duty construction for longer life
- Four bolt universal flange
- Removable high-flow integral flow check (IFC)
- Prevents gravity flow
- Reduces installation costs
- Improves pump performance
- Replaceable cartridge design
- Quiet, efficient operation
- Self lubricating, no mechanical seal
- Acetal plunger body
- EPDM O-ring seal
- Stainless steel spring, steel stator housing
- Ceramic shaft and carbon bearings
