| Additional Information | : | Built-in EMC Filter, 10 to 50 deg C Heavy-Duty Temperature 7.5 lb Net Weight |
| Amps (Heavy Duty (CT) Single Phase) Input | : | 17.5 A |
| Amps (Heavy Duty 150% for 60 seconds) | : | 16 A |
| Built-in Keypad Type | : | LED (7-Segment) |
| Control Type | : | Sensorless Vector, V/F |
| DC Reactor Built-in | : | No |
| Depth (inch) | : | 5.5 in |

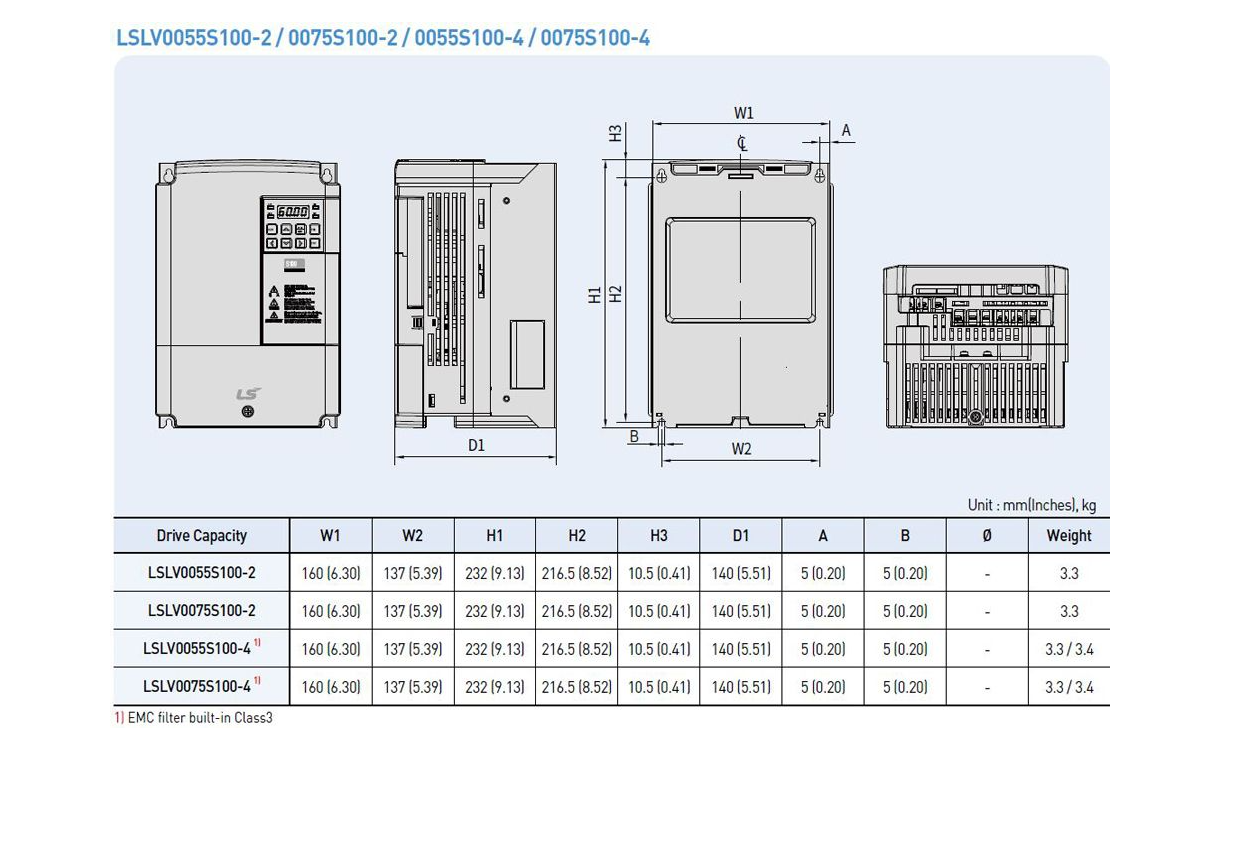

| Dimensions | : | 9.1 in H x 6.3 in W x 5.5 in D |
| Display Type | : | 7-Segment LED |
| EMC Filter Built-in | : | Yes |
| Enclosure Type | : | IP20/NEMA 1 |
| Frame Size | : | 9 |
| HD (CT) 3 Phase Output Amps | : | 9.5 A |
| HP (Heavy Duty (CT) Single Phase) Input | : | 5 |
| HP (Heavy Duty 150% for 60 seconds) | : | 10 |
| Height (Inch) | : | 9.1 in |
| IP | : | IP20 |
| Input Current | : | 17.5 A Heavy-Duty (CT) at 1 Phase, 25.4 A Normal Duty (VT) at 1 Phase |
| Input Voltage | : | 380 to 480 VAC |
| Model | : | S100 |
| Motor Output | : | 10 hp Heavy-Duty, 15 hp Normal Duty at 3 Phase, 5 hp Heavy-Duty (CT), 7.5 hp Normal Duty (VT) at 1 Phase |
| Output Current | : | 16 A Heavy-Duty, 23 A Normal Duty at 3 Phase |
| Output Voltage | : | 380 to 480 VAC |
| Phase | : | 3 ph |
| Voltage | : | 380 - 480 VAC |
| Width (Inch) | : | 6.3 in |
Specifications
