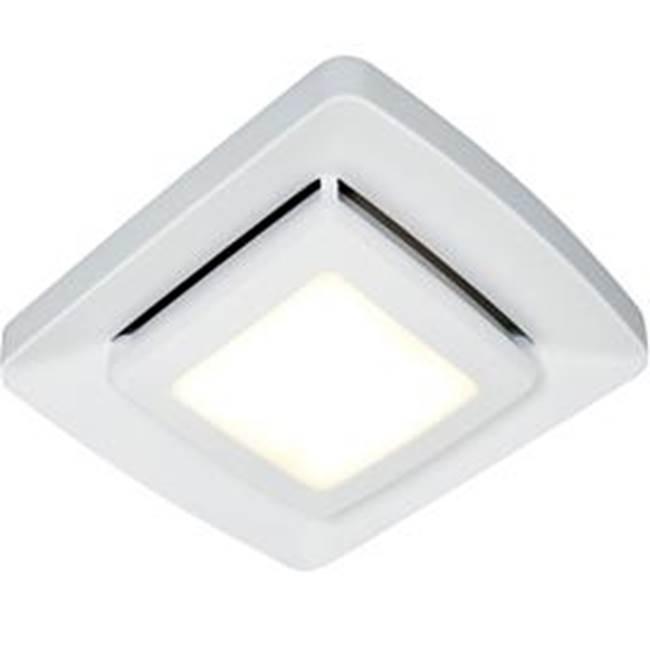

NuTone® Bathroom Fan, 120 VAC, 0.9 A, 60 Hz, Steel, Polymeric, White, Ceiling/Wall Mount, 7-1/4 in Length, 7-1/2 in Width, 5-3/4 in Height, 9 in L x 9-1/4 in W Grille, 50 cfm, 3 in Dia Duct, 1 ph
| Amperage Rating | : | 0.9 A |
| CFM Rating | : | 50 cfm |
| Color | : | White |
| Duct Size | : | 3 in Dia |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 9 in L x 9-1/4 in W |
| Height | : | 5-3/4 in |
| Housing Color | : | White |
| Housing Material | : | Steel |
| Length | : | 7-1/4 in |
| Material | : | Steel, Polymeric |
| Mounting Type | : | Ceiling, Wall |
| Overall Height | : | 5-3/4 in |
| Overall Length | : | 7-1/2 in |
| Overall Width | : | 7-1/2 in |
| Phase | : | 1 ph |
| Voltage Rating | : | 120 VAC |
| Width | : | 7-1/2 in |
- Bathroom Fan
- Torsion spring grille-mounting - no tools necessary
- Compact housing fits easily between ceiling joists or wall studs
- Covered by US and foreign patents
- Single packs and project packs
- Metal grille kit S97011308 (available separately)
- UL listed for use over bathtubs or showers when connected to a GFCI circuit
- 2 x 4 in minimum construction space required
Installation Instructions
Instruction/Installation Manual
