Legend Valve Icemaker Valve, T-596NL Series, 1/2 x 1/4 in Nominal, PEX Connection, 125 psi, Brass Body, 120 deg F, Chrome, 2.17 in L
| Actuator Type | : | Quarter-Turn Handle |
| Additional Information | : | Lead-Free, PTFE Seat, Brass Stem |
| Body Material | : | Brass |
| Connection Type | : | PEX x Compression |
| Dimensions | : | 2.17 in L |
| Domestic/Import | : | Domestic |
| Finish | : | Chrome-Plated |
| Handle Material | : | Zinc |
| Material Standard | : | AISI 1010, ASTM B86 |
| Nominal Size | : | 1/2 x 1/4 in |
| Pressure Rating | : | 125 CWP |
| Series | : | T-596NL Series |
| Softgoods Material | : | Acetal Resin/EPDM/PSU/PTFE |
| Temperature Rating | : | 180 deg F |
| Trim Material | : | Brass/PTFE |
- Lead-free design is suitable for all no lead potable water installations, in full compliance of all lead-free plumbing laws
- Quarter-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shut-offs and re-opening
- The ball seat operation and dual O-ring stem seal features, out perform traditional multi-turn stop designs
- Compact, forged brass, chrome-plated or polished brass bodies are both durable and decorative
- An ideal upgrade replacement for worn, leaking stops that won't close completely

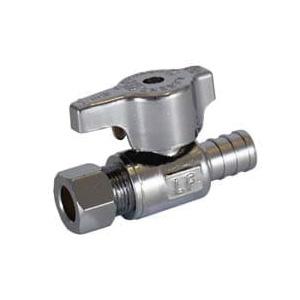

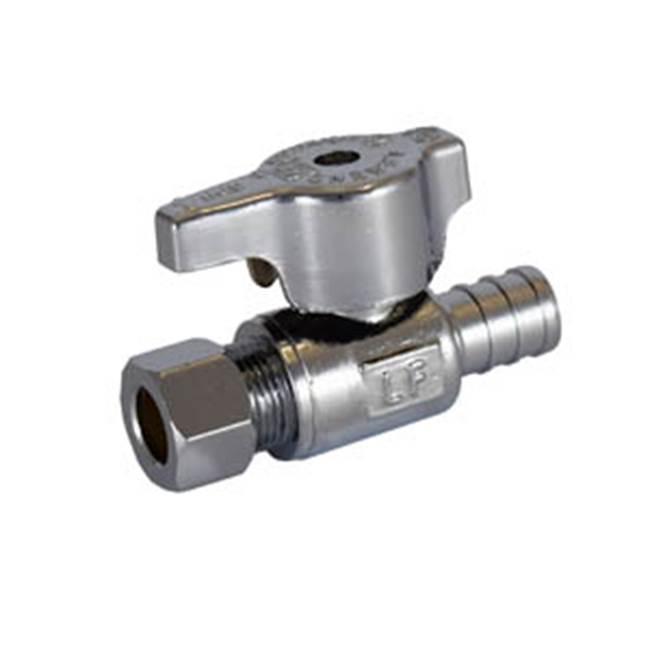

- 1/2 PEX x 1/4 in OD T-596NL no lead chrome brass quarter-turn straight stop valve
