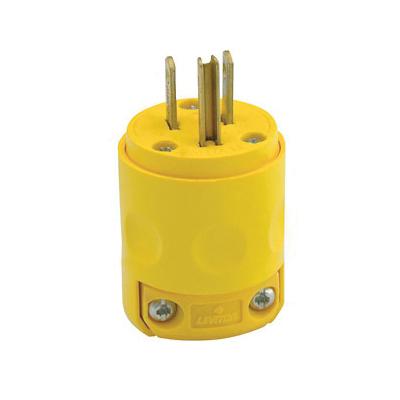

Leviton® Blade Plug, 125 VAC, 15 A, 2 Pole, 3 Wires, 0.245 to 0.655 in Cord Dia, 18 to 12 AWG Conductor, Residential Grade, 2000 V Dielectric, PVC Housing, Brass Blade, Steel Screw, Yellow, -40 to 60 deg C, 1.54 in Width
| Amperage Rating | : | 15 A |
| Blade Material | : | Brass |
| Color | : | Yellow |
| Conductor Size | : | 18 to 12 AWG |
| Cord Diameter | : | 0.245 to 0.655 in |
| Dielectric Strength | : | 2000 V |
| Grade | : | Residential |
| Housing Material | : | PVC |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Screw Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.54 in |
- Hinged design provides fast, easy assembly
- Ideal for replacement of plugs on tools, appliances and extension cords
- Accepts SJ 16/3 AWG
- Rugged PVC plug and connector (515PV/515CV) resists moisture and chemicals
- Unique dimpled body provides a secure hinge grip
- Built-in cord grip adjusts automatically for use with 18 to 12 AWG
