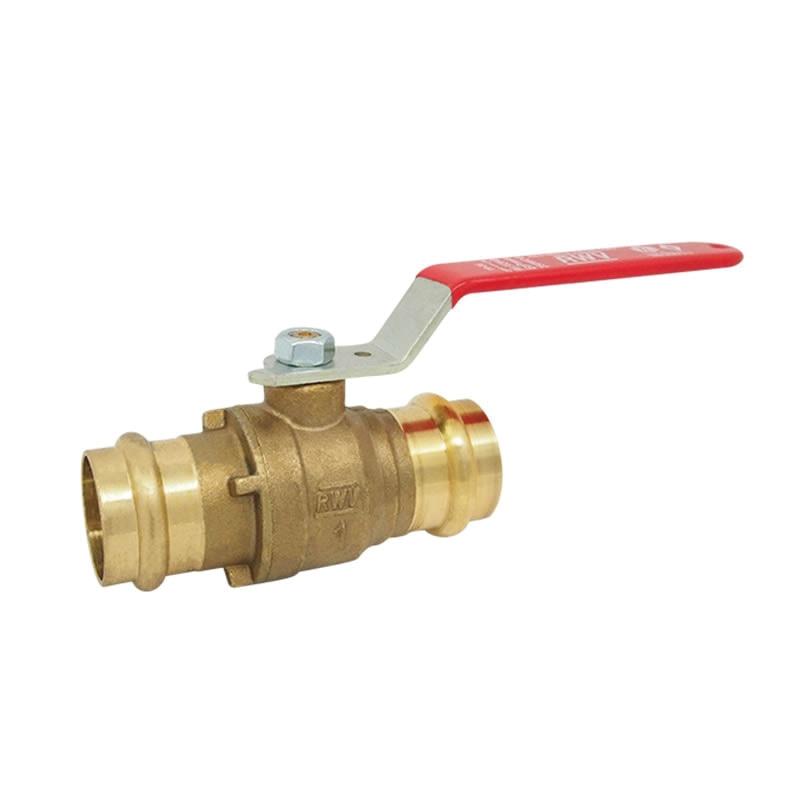

RWV® Ball Valve, 5520AB Series, 1 in Nominal, Dual EzPress Connection, Full Port, 250 psi, Gas, Oil, Water Media, 3.88 in Inlet to Outlet Length, 2.05 in Top to Inlet Center, 0.94 in Opening, Lever Handle Operator, 55 Cv Flow Coefficient (Cv), Material Standard: ASTM A36, ASTM B927 C27453, ASTM F1960, Brass Body, PTFE Seat, Brass Stem, NBR Packing, Steel Handle, Brass Ball, EPDM Softgoods, Lead-Free, 15 to 160 deg F, 1.14 in ID
| Actuator Type | : | Handle |
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Configuration | : | 2-Piece |
| Connection Type | : | Press |
| Dimensions | : | 3.88 in L |
| Flow Coefficient (Cv) | : | 55 Cv |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 3.88 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM B927 C27453, C28500, ASTM A36 |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 1 in |
| Opening Size | : | 1.14 in |
| Operator Type | : | Lever Handle |
| Orifice Size | : | 0.94 in |
| Packing Material | : | NBR |
| Port Type | : | Full |
| Pressure Rating | : | 250 psi |
| Seat Material | : | PTFE |
| Series | : | 5520AB Series |
| Softgoods Material | : | EPDM/PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 15 to 160 deg F |
| Top to Inlet Center | : | 2.05 in |
| Trim Material | : | Brass/PTFE |
- Dual EzPress ends
- Double o-ring
- Blowout-proof stem design
- Meet BAA requirement
