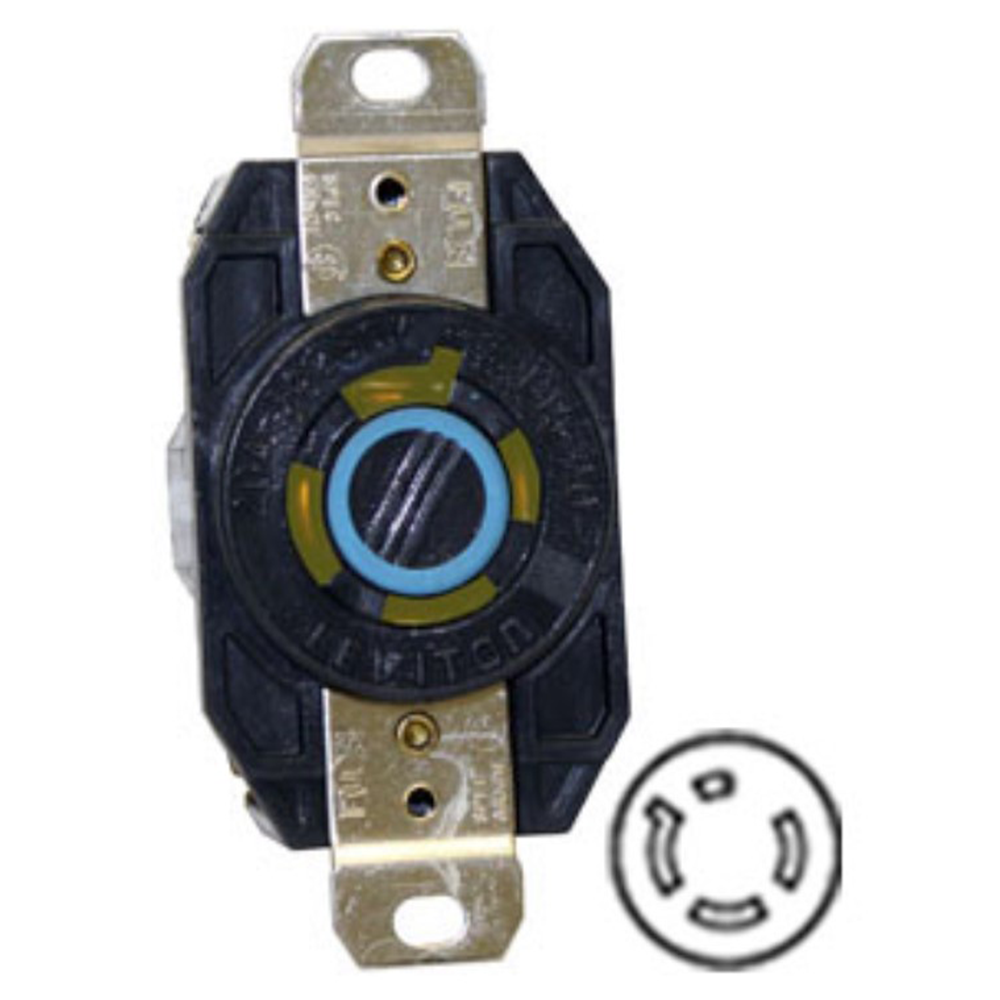

Leviton® V-0-Max® Locking Receptacle, 250 VAC, 20 A, HP Rating: 3 hp, 3 Pole, 4 Wires, 3 ph, 0.595 to 0.895 in Cord Dia, 14 to 8 AWG Conductor, Industrial Grade, NEMA L15-20R, Flush Mount, Back Wired, Side Wired Terminal, 2000 V Dielectric, Grounding, -40 to 60 deg C, Nylon Housing, Ultramid Face, Brass Contact, Valox Base, Black, 3.63 in Length, 1.69 in Width, 1.31 in Height
| Amperage Rating | : | 20 A |
| Base Material | : | Valox |
| Color | : | Black |
| Conductor Size | : | 14 to 8 AWG |
| Contact Material | : | Brass |
| Cord Diameter | : | 0.595 to 0.895 in |
| Dielectric Strength | : | 2000 V |
| Face Material | : | Ultramid |
| Grade | : | Industrial |
| Grounding Type | : | Grounding |
| HP Rating | : | 3 hp |
| Height | : | 1.31 in |
| Housing Material | : | Nylon |
| Length | : | 3.63 in |
| Mounting Type | : | Flush |
| NEMA Rating | : | NEMA L15-20R |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 3 ph |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Back Wired, Side Wired |
| Voltage Rating | : | 250 VAC |
| Width | : | 1.69 in |
