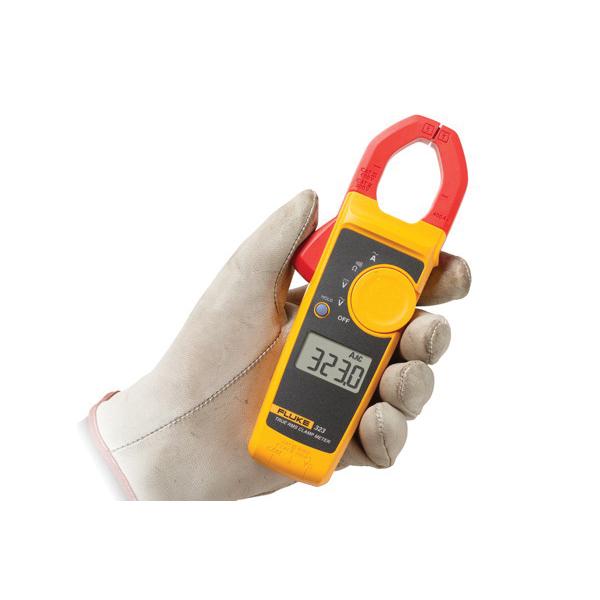

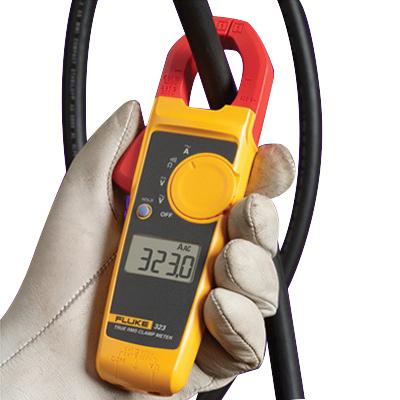

Fluke® Clamp Meter, 600 V, 400 A, 400 to 4000 Ohm Resistance, 1-1/8 in Jaw, 6000, 2%, 2.5% AC Current Accuracy, 1%, 1.5% Voltage Accuracy, CAT III 600 V, CAT IV 300 V, -10 to 50 deg C Operating, <=45% Relative Non-Condensing, <=75% Relative Non-Condensing, <=90% Relative Non-Condensing Humidity Rating, 1% Resistance Accuracy, 207 mm H x 75 mm W x 34 mm D, Additional Information: AAA Battery Size
| AC Current Accuracy | : | 2%, 2.5% |
| AC Response | : | TRMS |
| Additional Information | : | AAA Battery Size |
| Amperage Rating | : | 400 A |
| Counts | : | 6000 |
| Dimensions | : | 207 mm H x 75 mm W x 34 mm D |
| Humidity Rating | : | <=45% Relative Non-Condensing, <=75% Relative Non-Condensing, <=90% Relative Non-Condensing |
| Jaw Capacity | : | 1-1/8 in |
| Operating Temperature | : | -10 to 50 deg C |
| Power Supply | : | (2) AAA Batteries |
| Resistance Accuracy | : | 1 % |
| Resistance | : | 400 to 4000 Ohm |
| Safety Rating | : | CAT III 600 V, CAT IV 300 V |
| Voltage Accuracy | : | 1%, 1.5% |
| Voltage Rating | : | 600 V |
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 40 kohm with continuity detection
- Slim, ergonomic design
- Hold button
- 30 mm (600 MCM) Dia maximum wire
Instruction/Installation Manual
