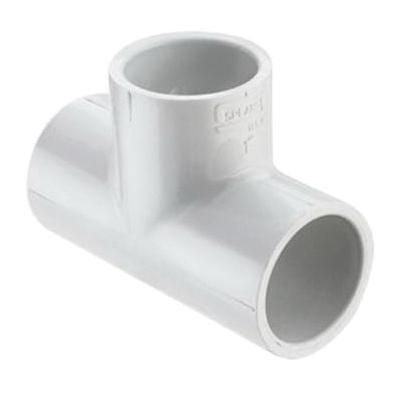

Spears® Tee, Tee Fitting, 3/4 in Connection Size 1, Connection Type 1: Socket, 3/4 in Connection Size 2, Connection Type 2: Socket, Connection Size 3: 3/4 in, Connection Type 3: Socket, Socket|Socket|Socket Connection, PVC, Material Construction: Molded PVC, White, SCH 40, 3-1/8 in L, 140 deg F, Additional Information: 15/16 in OD
| Additional Information | : | 15/16 in OD Dimensions |
| Color | : | White |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Size 3 | : | 3/4 in |
| Connection Type 1 | : | Socket |
| Connection Type 2 | : | Socket |
| Connection Type 3 | : | Socket |
| Connection Type | : | Socket|Socket|Socket |
| Diameter | : | 15/16 in OD |
| Dimensions | : | 3-1/8 in L |
| Fitting Size | : | 3/4 in |
| Fitting Type | : | Tee |
| Length | : | 3-1/8 in |
| Material Construction | : | Molded PVC |
| Material Standard | : | ASTM D1784, ASTM D2104, ASTM D2609 |
| Material | : | PVC |
| Method of Manufacture | : | Molded |
| Schedule Rating | : | SCH 40 |
| Temperature Rating | : | 140 deg F |
- Unlike metal, PVC fittings never rust, scale or pit and will provide many years of maintenance-free service and extended system life
- PVC thermoplastic can handle fluids at service temperatures up to 140 deg F, allowing a wide range of process applications, including corrosive fluids
- Substantially lower material costs than steel alloys or lined steel, combined with lighter weight and ease of installation, can reduce installation costs by as much as 60% over conventional metal systems
- Smooth interior walls result in lower pressure loss and higher volume than conventional metal systems
