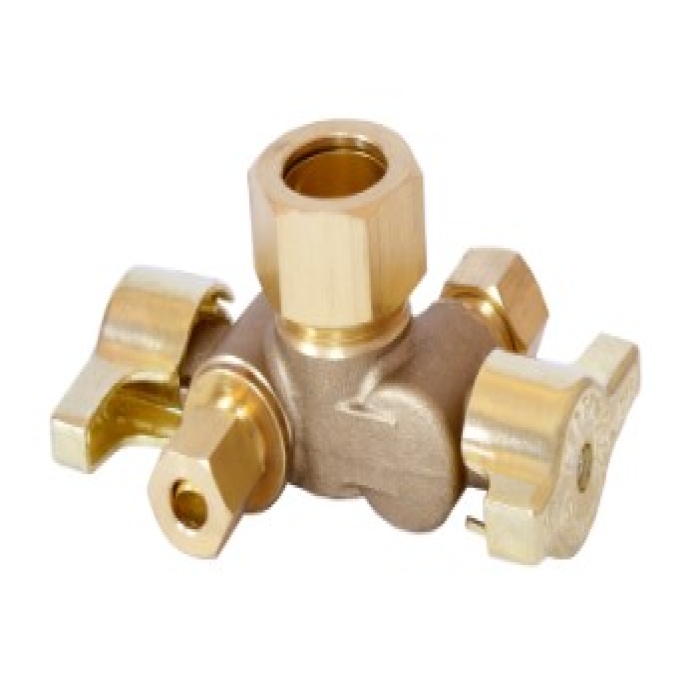

Legend Valve Angle Stop Valve, 5/8 x 3/8 x 3/8 in Nominal, Brass Body, Chrome-Plated
| Actuator Type | : | Dual Handle |
| Additional Information | : | No Lead |
| Body Material | : | Brass |
| Connection Type | : | Compression |
| Dimensions | : | 3.23 in L |
| Finish | : | Chrome-Plated |
| Handle Material | : | Zinc |
| Nominal Size | : | 5/8 x 3/8 x 3/8 in |
| Pressure Rating | : | 125 CWP |
| Series | : | T-598NL Series |
| Softgoods Material | : | EPDM/NBR |
| Temperature Rating | : | 180 deg F |
