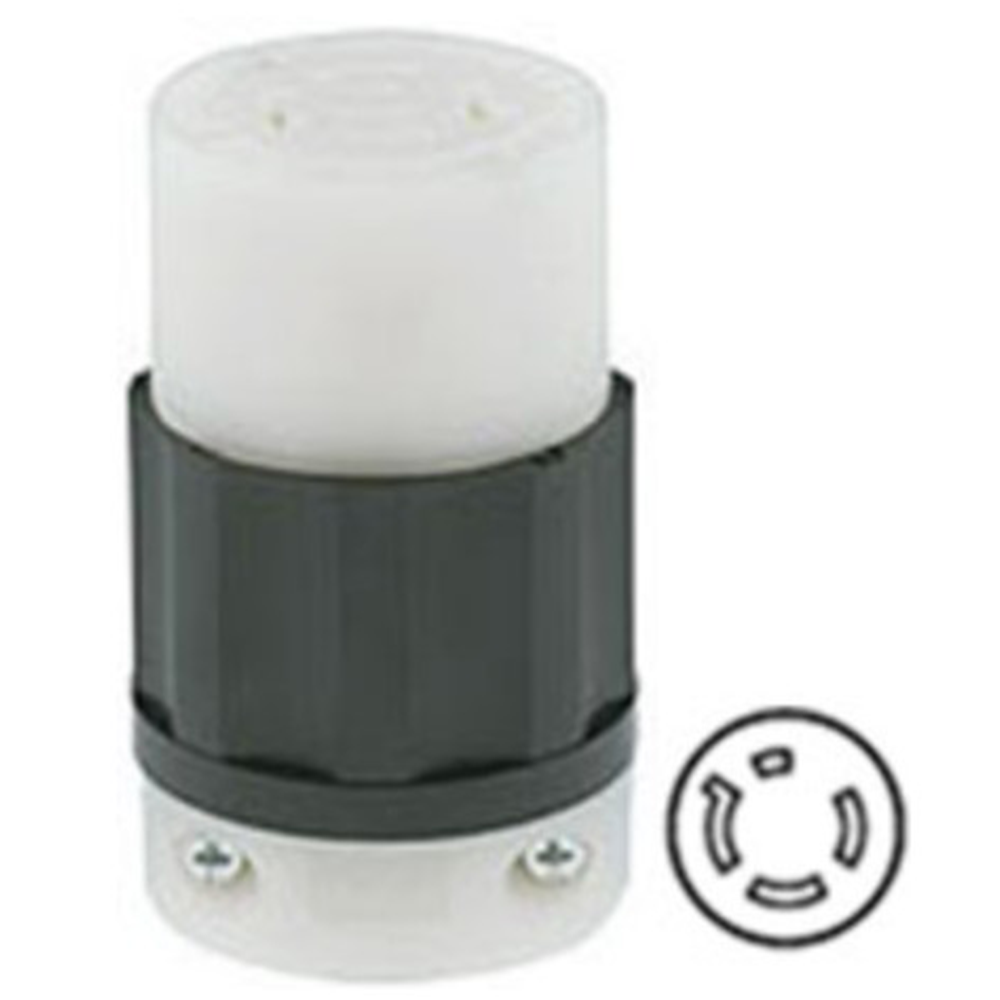

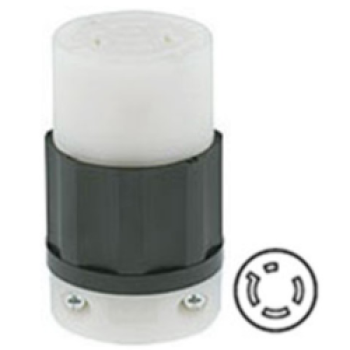

Leviton® Black & White® Locking Connector, 250 VAC, 20 A, 3 Pole, 4 Wires, 3 ph, 14 to 10 AWG Wire, NEMA L15-20R, Screw Terminal, Nylon Housing, Brass Contact, Black, 2.23 in Dia, 3.78 in Height
| Amperage Rating | : | 20 A |
| Color | : | Black |
| Contact Material | : | Brass |
| Diameter | : | 2.23 in |
| Height | : | 3.78 in |
| Housing Material | : | Nylon |
| NEMA Rating | : | NEMA L15-20R |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 3 ph |
| Terminal Type | : | Screw |
| Voltage Rating | : | 250 VAC |
| Wire Size | : | 14 to 10 AWG |
- Leviton®'s Black & White® line of industrial-grade connectors offer superior performance, long-lasting reliability and features that are backed by a limited lifetime warranty
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
Instruction/Installation Manual
