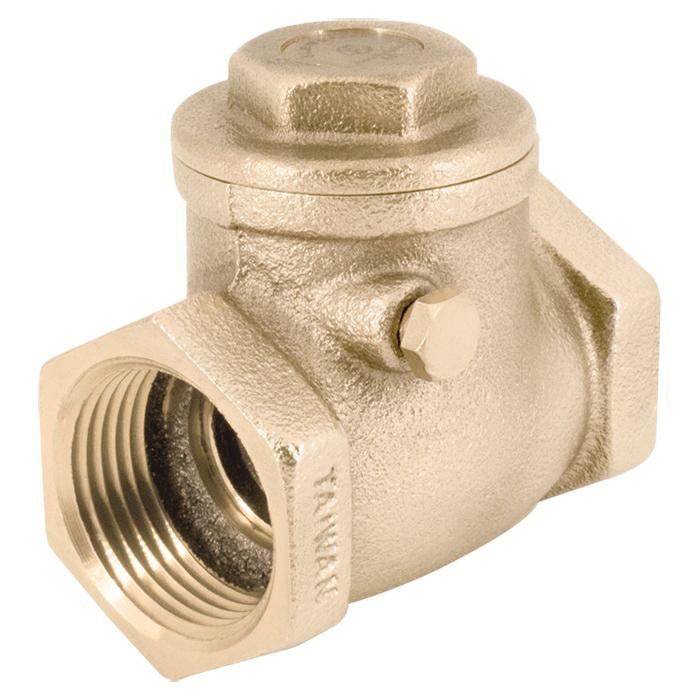

Legend Valve Swing Check Valve, 2 in Nominal, FNPT Connection, 200 psi, Full Port, 4.12 in Inlet to Outlet Length, 2.68 in Top to Inlet Center, Brass Body, Brass Seal, Brass Disc, Brass Trim, Fiber Softgoods, Lead-Free
| Additional Information | : | 76 Cv Flow Coefficient |
| Body Material | : | Brass |
| Connection Type | : | FNPT |
| Disc Material | : | Brass |
| Inlet to Outlet Length | : | 4.12 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 2 in |
| Port Type | : | Full |
| Pressure Rating | : | 200 psi |
| Seal Material | : | Brass |
| Series | : | T-451NL Series |
| Softgoods Material | : | Fiber |
| Top to Inlet Center | : | 2.68 in |
| Trim Material | : | Brass |
- Durable, full pattern cast brass body
- Large, integral seat and disc sealing surfaces
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
