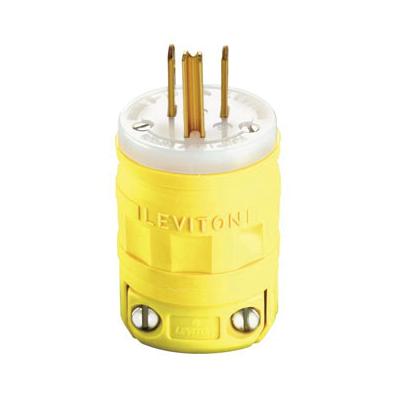

Leviton® Dustguard™ Straight Blade Plug, 125 VAC, 15 A, 1/2 hp HP Rating, 2 Pole, 3 Wires, 1 ph, 0.24 to 0.655 in Cord Dia, 18 to 10 AWG Conductor, Industrial Grade, 2000 V Dielectric, Santoprene Thermoplastic Vulcanizate Housing, Brass Blade, Steel Screw, Yellow, -40 to 60 deg C, 3.04 in Length, 1.54 in Width
| Amperage Rating | : | 15 A |
| Blade Material | : | Brass |
| Color | : | Yellow |
| Conductor Size | : | 18 to 10 AWG |
| Cord Diameter | : | 0.24 to 0.655 in |
| Dielectric Strength | : | 2000 V |
| Grade | : | Industrial |
| HP Rating | : | 1/2 hp |
| Housing Material | : | Santoprene Thermoplastic Vulcanizate |
| Length | : | 3.04 in |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Phase | : | 1 ph |
| Screw Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Voltage Rating | : | 125 VAC |
| Width | : | 1.54 in |
Instruction/Installation Manual
