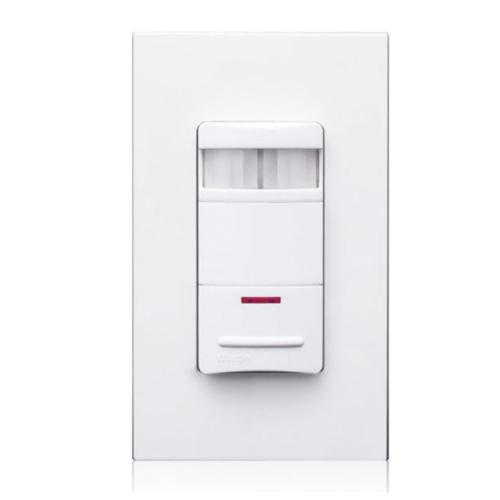

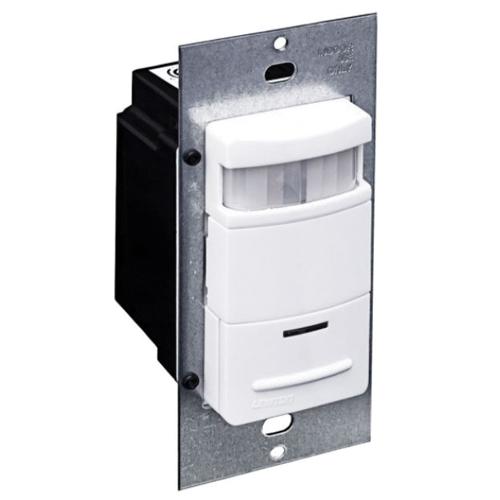

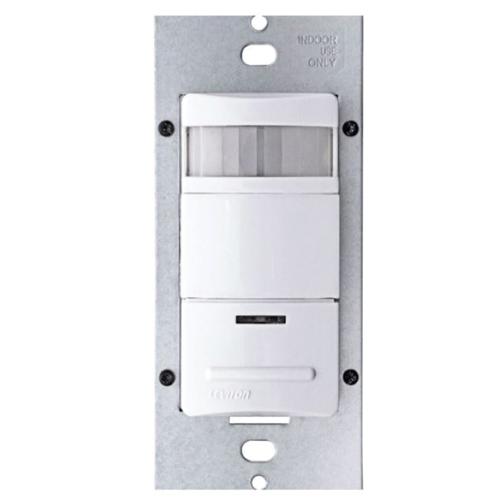

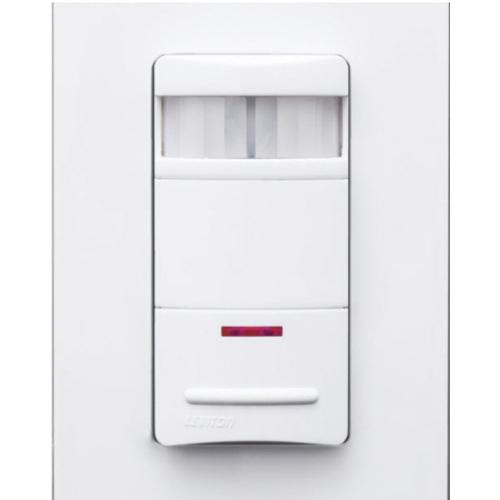

Decora® ODS10-IDW LEV ODS10-IDW

Decora, Occupancy Sensor, 120 to 277VAC, PIR Sensor, White

  • Manufacturer: Leviton
  • Brand Name: Decora®
  • Part#: LEV ODS10-IDW
  • MPN: ODS10-IDW
  • UPC: 078477010181
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Decora® Occupancy Sensor, 120 to 277 VAC, 50/60 Hz, Fluorescent, Incandescent Lamp, Passive Infrared Sensor, 2100 sq-ft Sensing Range, 180 deg Sensing, 30 s to 30 min Timer, 0 to 50 deg C, Wall Mount, White, 4.06 in H x 1.75 in W x 1.83 in D

Color      :      White
Dimensions      :      4.06 in H x 1.75 in W x 1.83 in D
Frequency Rating      :      50/60 Hz
Lamp Type      :      Fluorescent, Incandescent
Mounting Type      :      Wall
Sensing Angle      :      180 deg
Sensing Range      :      2100 sq-ft
Sensor Type      :      Passive Infrared
Temperature Rating      :      0 to 50 deg C
Timer Range      :      30 s to 30 min
Voltage Rating      :      120 to 277 VAC
  • Fits in standard wallbox and replaces single-pole wall switch
  • Low-profile design eliminates an obtrusive "scanning device" look
  • Convenient pushbutton provides manual ON/OFF light switching at any time
  • Two dual element PIR sensors used to widen detection range
  • Segmented Fresnel lens provides optimum sensitivity and performance, designed with an extensive "minor motion" area where even slight body movements will be detected
  • Vandal-resistant PIR lens
  • Horizontal field-of-view may be adjusted between 180 deg and 60 deg of arc by using integral blinders located on either side of the lens
  • Manual-on/auto-off mode for installations where manual on switching is required but auto-off switching is still desired for CEC Title 24 energy savings
  • To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active
  • Light sensor adjustable ambient light override ranges from approximately 2 ft candles (20 lux) to 500 plus foot-candles (5000+ lux) to prevent lights from turning on automatically during periods of ample natural light, increasing energy savings
  • Light sensor enables the load hold-off feature once level has been set
  • When the time out expires and the lights turn OFF a 30 s vacancy confirmation exists to turn the lights back ON
  • False detection circuitry
  • Presentation mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
  • One unit can be used for 120 to 277 V lighting, compatible with both electronic and magnetic ballasts
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
  • Exclusive Leviton H.I.S circuitry
