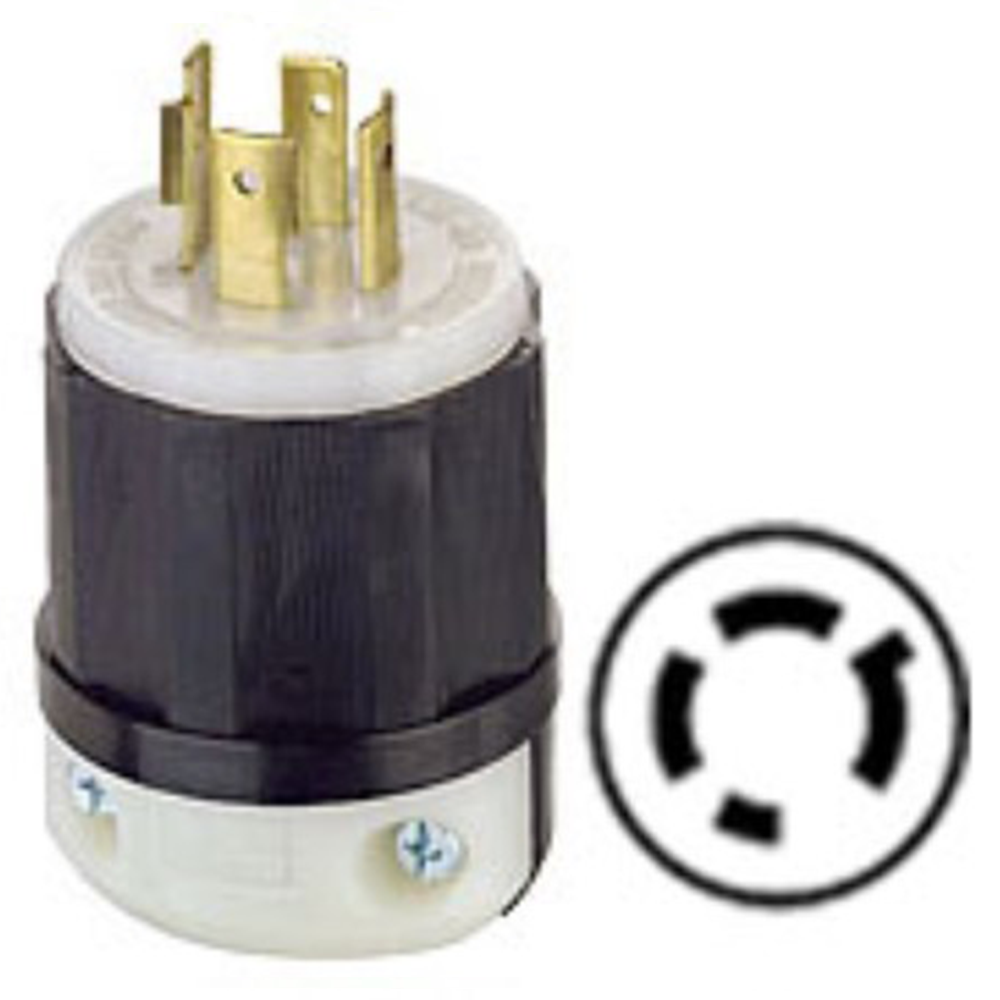

Leviton® Black & White® Locking Plug, 480 VAC, 20 A, HP Rating: 5 hp, 3 Pole, 4 Wires, 3 ph, 0.56 to 0.775 in Cord Dia, 18 to 10 AWG Wire, Industrial Grade, NEMA L16-20P, Screw Terminal, 2000 V Dielectric, Grounding, Nylon Housing, Brass Blade, Brass Contact, Thermoplastic Back Cover Material, Steel Screw, Black/White, 2.22 in Dia, 2.7 in Height, -40 to 60 deg C
| Amperage Rating | : | 20 A |
| Back Cover Material | : | Thermoplastic |
| Blade Material | : | Brass |
| Color | : | Black/White |
| Contact Material | : | Brass |
| Cord Diameter | : | 0.56 to 0.775 in |
| Diameter | : | 2.22 in |
| Dielectric Strength | : | 2000 V |
| Grade | : | Industrial |
| Grounding Type | : | Grounding |
| HP Rating | : | 5 hp |
| Height | : | 2.7 in |
| Housing Material | : | Nylon |
| NEMA Rating | : | NEMA L16-20P |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 3 ph |
| Screw Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 480 VAC |
| Wire Size | : | 18 to 10 AWG |
- Leviton®'s Black & White® line of industrial-grade plugs offer superior performance, long-lasting reliability and features that are backed by a limited lifetime warranty
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
