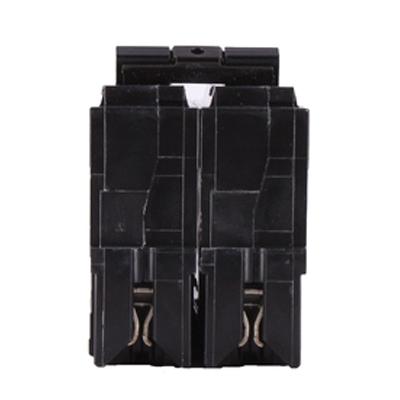

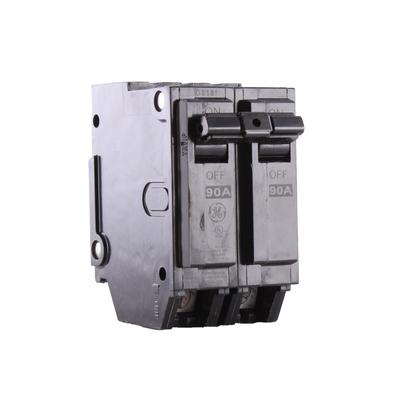

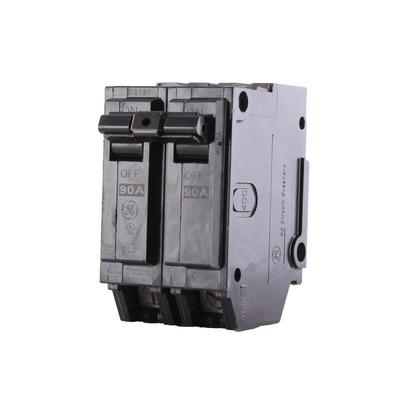

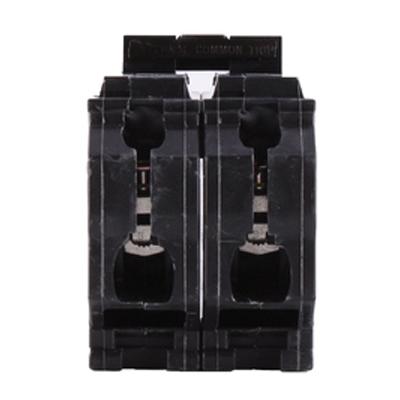

GE Industrial Solutions THQL Molded Case Circuit Breaker, 90 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Q-Line Frame, Non-Interchangeable Trip, Box Lug Terminal, Toggle Actuator, 4 to 1/0 AWG Aluminum, 6 to 1/0 AWG Copper Wire, 60 to 75 deg C, 2 in Width, 2-3/8 in Length, 3-9/32 in Height
| Actuator Type | : | Toggle |
| Amperage Rating | : | 90 A |
| Frame Type | : | Q-Line |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3-9/32 in |
| Interrupt Rating | : | 10 kA |
| Length | : | 2-3/8 in |
| Mounting Type | : | Plug-In |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Temperature Rating | : | 60 to 75 deg C |
| Terminal Type | : | Box Lug |
| Trip Type | : | Non-Interchangeable |
| Voltage Rating | : | 120/240 VAC |
| Width | : | 2 in |
| Wire Size | : | 4 to 1/0 AWG Aluminum, 6 to 1/0 AWG Copper |
