Intermatic® EI600WC INTM EI600WC

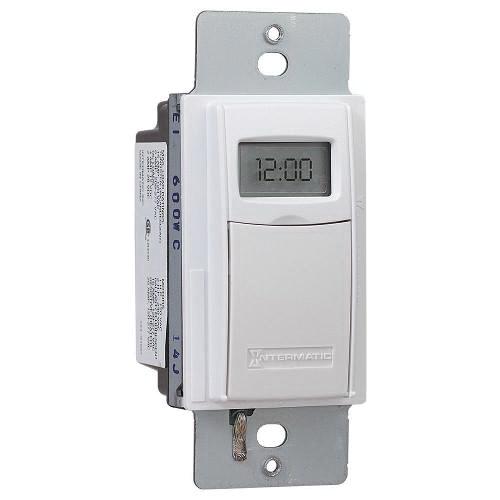

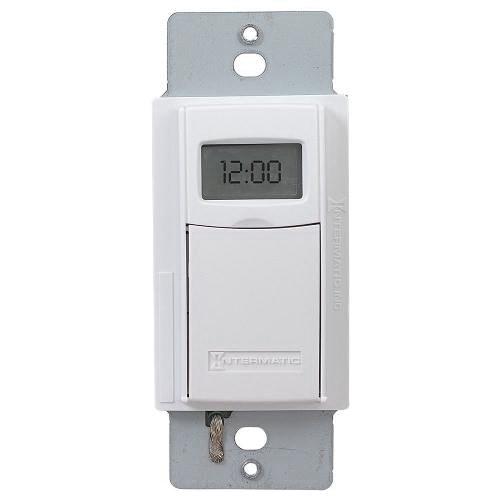

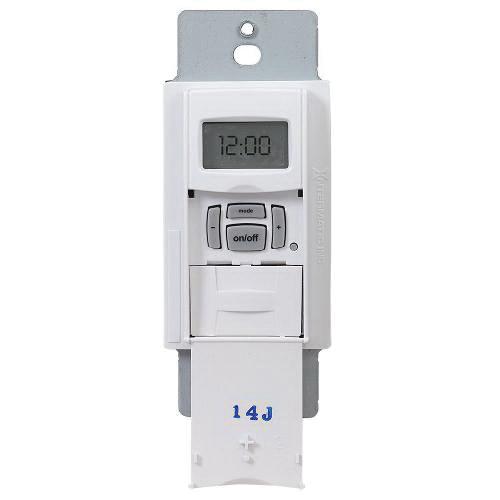

Intermatic Programmable Electronic In-Wall Timer EI600, Time Settings: 7days, SPST

  • Manufacturer: Intermatic
  • Brand Name: Intermatic®
  • Part#: INTM EI600WC
  • MPN: EI600WC
  • UPC: 078275101418
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Intermatic® Electronic In-Wall Timer, Series: EI600 Series, 120 to 277 VAC/12 to 28 VDC, 20 A, 50/60 Hz, 2 hp HP Rating, Switch Rating: 15 A at 120 VAC, 2 A at 28 VDC, 20 A at 120 to 277 VAC Resistive/Inductive, 4 A at 12 VDC, 6 A at 208 to 277 VAC Incandescent, SPST, 7 days Time Settings, 32 to 104 deg F, White, 4-1/8 in Height, 1-3/4 in Width, 1-13/16 in D

Amperage Rating      :      20 A
Color      :      White
Contact Configuration      :      SPST
Depth      :      1-13/16 in
Finish      :      White
Frequency Rating      :      50/60 Hz
HP Rating      :      2 hp
Height      :      4-1/8 in
Series      :      EI600 Series
Switch Rating      :      15 A at 120 VAC, 2 A at 28 VDC, 20 A at 120 to 277 VAC Resistive/Inductive, 4 A at 12 VDC, 6 A at 208 to 277 VAC Incandescent
Temperature Rating      :      32 to 104 deg F
Time Settings      :      7 days
Voltage Rating      :      120 to 277 VAC/12 to 28 VDC
Width      :      1-3/4 in
  • Ideal for any application that requires a simple or complex on/off schedule, regardless of load
  • Automatic daylight saving time (DST) adjustment
  • Random mode varies on/off schedule to provide a "lived-in" appearance
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Intermatic_EI500C_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Intermatic_EI600C_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Intermatic_EI600C_Specification_Sheet.pdf
