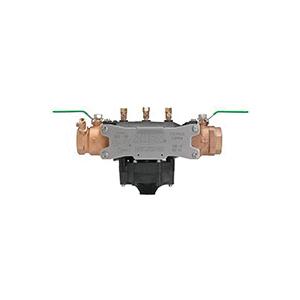

Zurn® Wilkins Reduced Pressure Principle Backflow Preventer, 3/4 in Nominal, FNPT Connection, Full Port, 175 psi, Water Media, ASTM B584 Material Standard, Nylon Body, Lead-Free, 180 deg F, 12-5/8 in L
| Additional Information | : | 300 Stainless Steel Spring, Low-Lead Cast Bronze Ball Valve |
| Body Material | : | Nylon |
| Connection Type | : | FNPT |
| Dimensions | : | 12-5/8 in L |
| Inlet to Outlet Length | : | 8-7/8 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM B584 |
| Media | : | Water |
| Model | : | 375XL |
| Nominal Size | : | 3/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 175 psi |
| Series | : | 375XL Series |
| Temperature Rating | : | 180 deg F |
| Top to Inlet Center | : | 3-7/8 in |
- EZSwap™ pressure vessel is quickly removed and replaced with flush tool (FLUSH) for simple line flushing to remove fouling debris
- Line flushing with flush fitting tool is simple, safe and easily directed to a safe drain
- Labor savings from ease of flushing with only one person saves up to 15 min per installation
- Durable UV-resistant reinforced nylon EZSwap™ pressure vessel resists corrosion and mineral buildup to better withstand harsh conditions
- Short lay length allows installation in tight spaces
