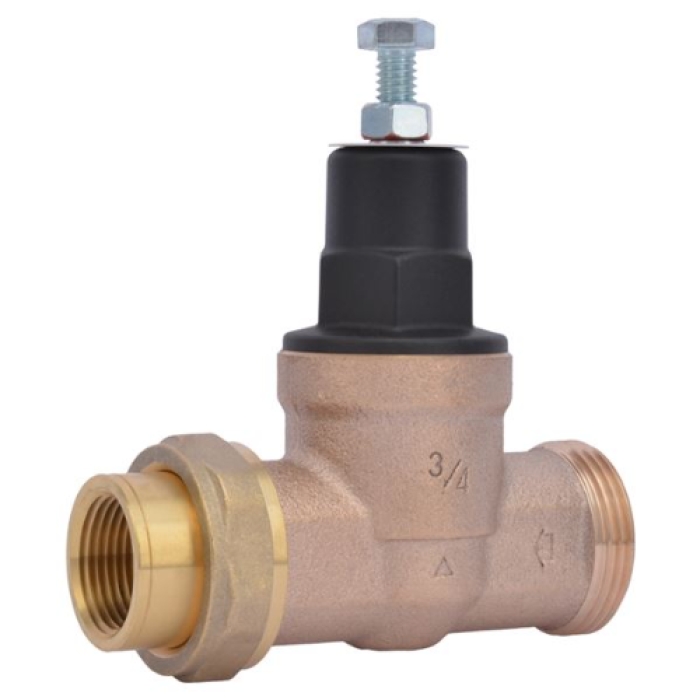

CashAcme™ Pressure Regulating Valve, 3/4 in Nominal, Single Union NPT, 400 psi Inlet, 10 to 70 psi Outlet, Bronze Body, Polyphenylene Ether + PS Seat, EPDM Seal, EPDM Disc, Steel Handle, 33 to 180 deg F, 4.15 in L x 5.12 in H
| Body Material | : | Bronze |
| Connection Type | : | NPT |
| Dimensions | : | 4.15 in L x 5.12 in H |
| Disc Material | : | EPDM |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 4-3/16 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 10 to 70 psi, 400 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Polyphenylene Ether + PS |
| Series | : | EB45 Series |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 33 to 180 deg F |
| Top to Inlet Center | : | 4-3/8 in |
- Modular cartridge design reduces the number of parts requiring service with quick and easy service/repair
- Rugged bronze body with superior reliability, improved user safety
- Compact pressure reducing and regulating valves designed for small and economic considerations
- Bypass mechanism integral with the cartridge no add-on or small parts, longer life and more reliable performance
- Every valve is tested for performance prior to shipping
- Assembled and tested in the USA
- Water service
- Reinforced engineered polymer or iron spring chamber
- Zinc-plated steel adjusting spring
- Reinforced EPDM diaphragm
- Stainless Steel or brass piston
- Stainless steel strainer screen
- 45 psi factory set, 400 psi maximum inlet pressure
