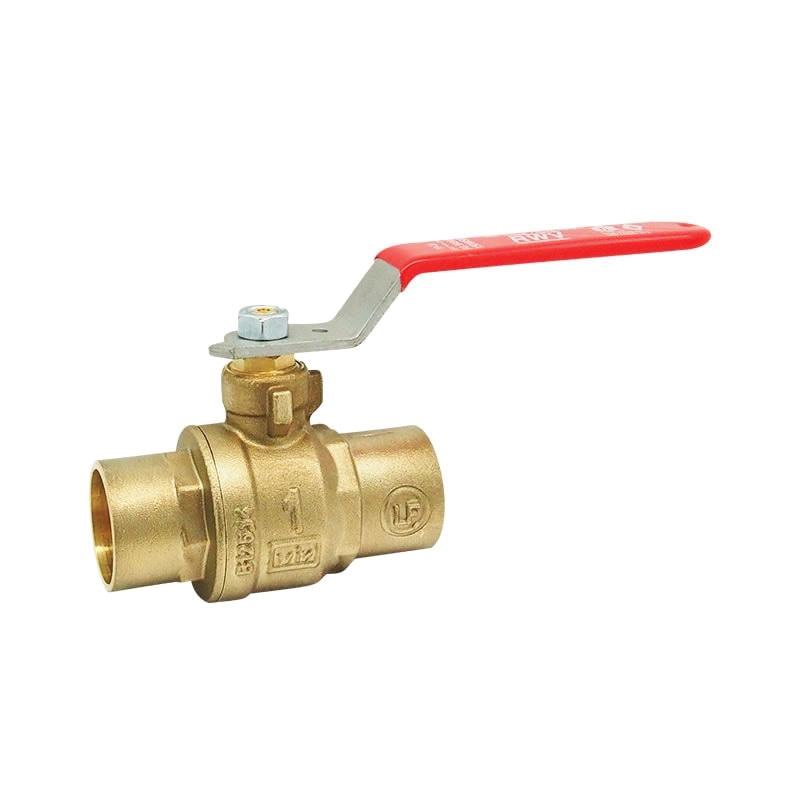

RWV® Ball Valve, 1 in Nominal, Solder Connection, Full Port, 600 psi, Brass Body, Brass Trim, Steel Handle, PTFE Softgoods, 15 to 160 deg F, 3.39 in W
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Configuration | : | 2-Piece |
| Connection Type | : | Solder |
| Dimensions | : | 3.52 in L |
| Flow Coefficient (Cv) | : | 60 Cv |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 3.52 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM B927 C27450, ASTM B124 C37700, ASTM A36 |
| Media | : | Gas, Oil, Steam, Water |
| Nominal Size | : | 1 in |
| Opening Size | : | 1.128 to 1.131 in |
| Operator Type | : | Lever Handle |
| Orifice Size | : | 0.98 in |
| Packing Material | : | PTFE |
| Port Type | : | Full |
| Pressure Rating | : | 150 WSP, 600 WOG |
| Seat Material | : | PTFE |
| Series | : | 5549AB Series |
| Softgoods Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 15 to 160 deg F |
| Top to Inlet Center | : | 2.56 in |
| Trim Material | : | Brass/PTFE |
