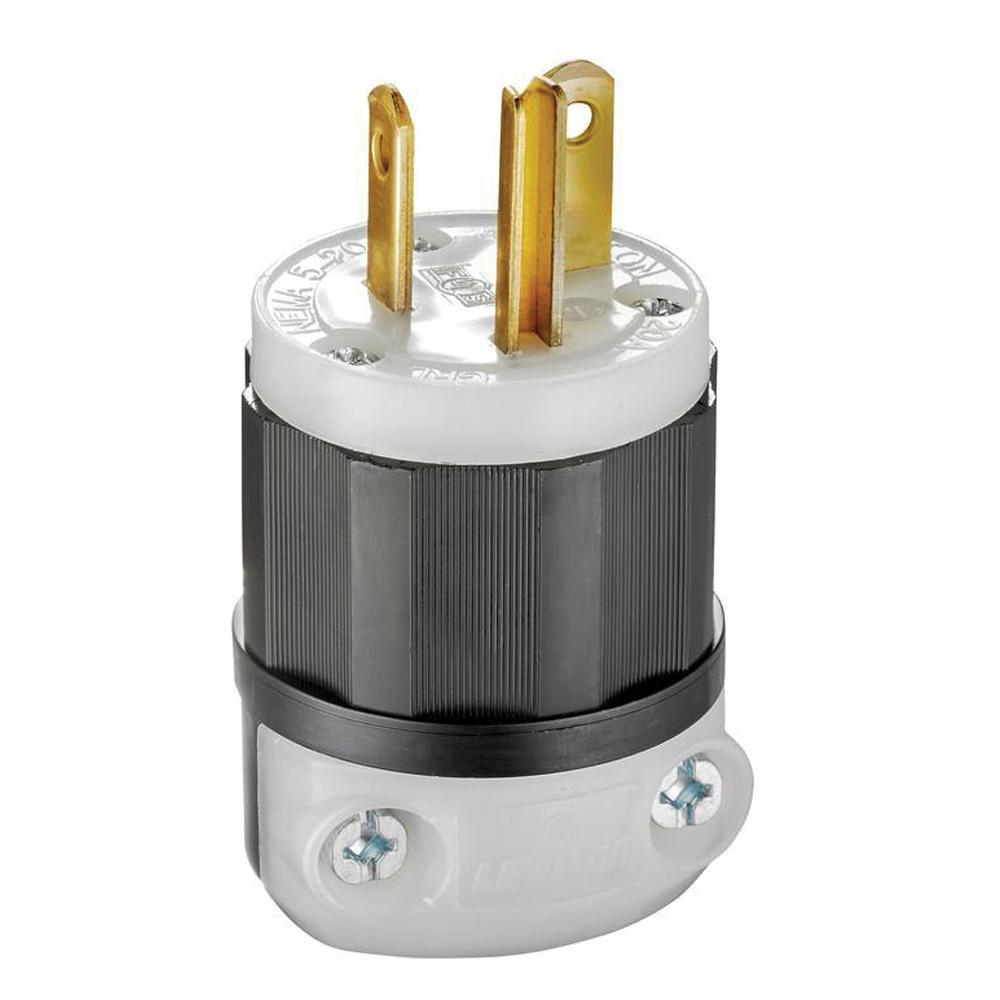

Leviton® Black & White® Blade Plug, 125 VAC, 20 A, 2 Pole, 3 Wires, 0.23 to 0.685 in Cord Dia, 18 to 10 AWG Conductor, Industrial Grade, NEMA 5-20P, Screw Terminal, 2000 V Dielectric, Nylon Housing, Brass Blade, Steel Screw, Black/White, -40 to 60 deg C, 1.53 in Dia, 1.98 in Height
| Amperage Rating | : | 20 A |
| Blade Material | : | Brass |
| Color | : | Black/White |
| Conductor Size | : | 18 to 10 AWG |
| Cord Diameter | : | 0.23 to 0.685 in |
| Diameter | : | 1.53 in |
| Dielectric Strength | : | 2000 V |
| Grade | : | Industrial |
| Height | : | 1.98 in |
| Housing Material | : | Nylon |
| NEMA Rating | : | NEMA 5-20P |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Screw Material | : | Steel |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Screw |
| Voltage Rating | : | 125 VAC |
- Leviton®'s Black & White® line of industrial-grade plugs offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty
- One-piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in)
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
