Leviton® 515CV LEV 515CV In Stock
  1. pin-int

Leviton® 515CV LEV 515CV

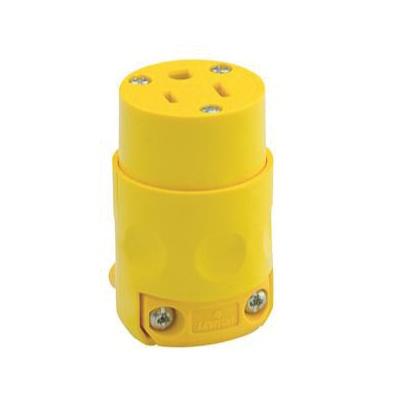

3-Wire Straight Blade Connector, 15A, 125VAC, 2-Pole, NEMA 5-15R

  • Manufacturer: Leviton
  • Brand Name: Leviton®
  • Part#: LEV 515CV
  • MPN: 515CV
  • UPC: 078477841334
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Leviton® Straight Blade Connector, Grounding, 125 VAC, 15 A, 2 Pole, Brass Contact, PVC Insulation, Yellow, 0.245 to 0.655 in Maximum Cable Diameter, NEMA 5-15R, -40 to 60 deg C, For Use With: Model 515PV Plugs

Amperage Rating      :      15 A
Color      :      Yellow
Contact Material      :      Brass
Insulation Material      :      PVC
Maximum Cable Diameter      :      0.245 to 0.655 in
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Style      :      Grounding
Suitable For Use With      :      Model 515PV Plugs
Temperature Rating      :      -40 to 60 deg C
Voltage Rating      :      125 VAC
