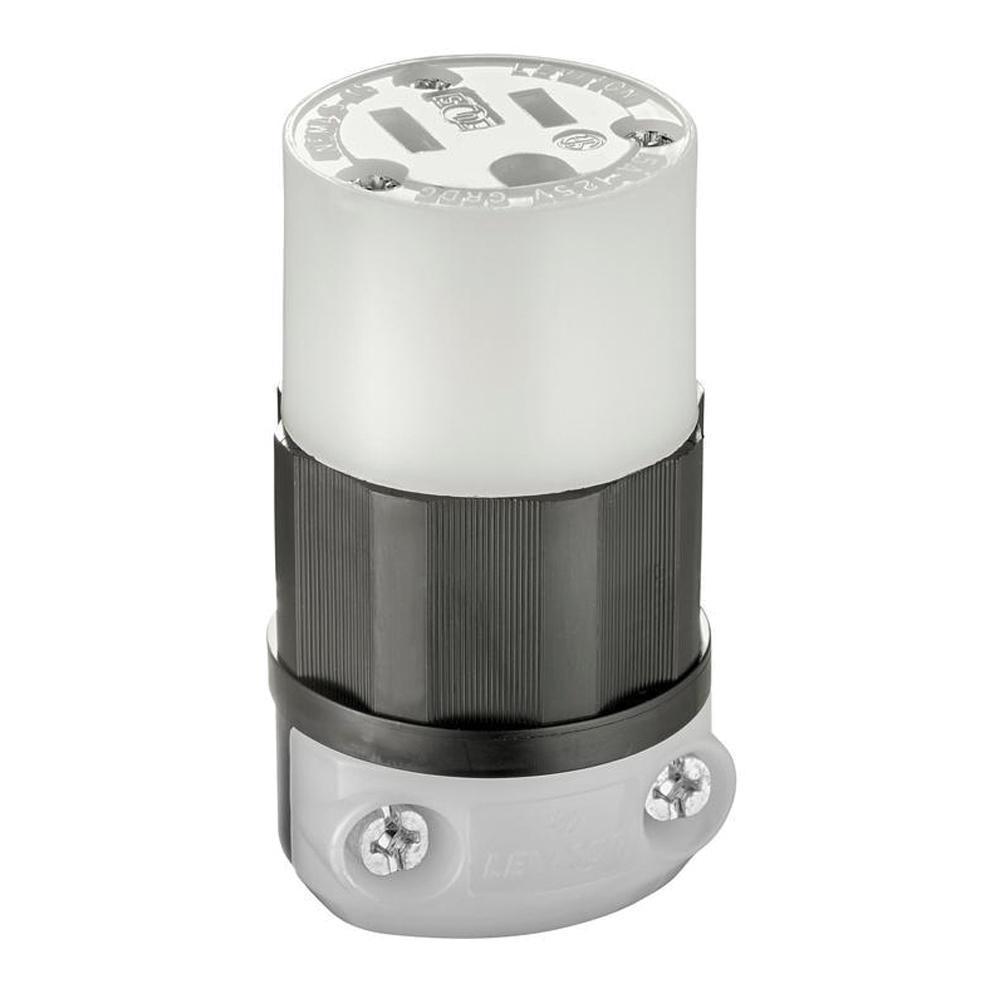

Leviton® 5269-C LEV 5269-C

Straight Blade Connector, 1.49in Dia, 15A, 125VAC, NEMA 5-15R

  • Manufacturer: Leviton
  • Brand Name: Leviton®
  • Part#: LEV 5269-C
  • MPN: 5269-C
  • UPC: 078477795316
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Leviton® Black & White® Straight Blade Connector, 125 VAC, 15 A, 2 Pole, Brass Contact, Black/White, Screw Wire Connection Type, 0.23 to 0.685 in Maximum Cable Diameter, NEMA 5-15R, -40 to 60 deg C, 1.49 in Dia

Amperage Rating      :      15 A
Color      :      Black/White
Contact Material      :      Brass
Diameter      :      1.49 in
Maximum Cable Diameter      :      0.23 to 0.685 in
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Temperature Rating      :      -40 to 60 deg C
Voltage Rating      :      125 VAC
Wire Connection Type      :      Screw
  • Leviton®'s Black & White® line of industrial-grade plugs offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty
  • One-piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in)
  • Rugged nylon construction resists impact, sunlight, chemicals and rough use
  • Ideal for extension cords and generators
